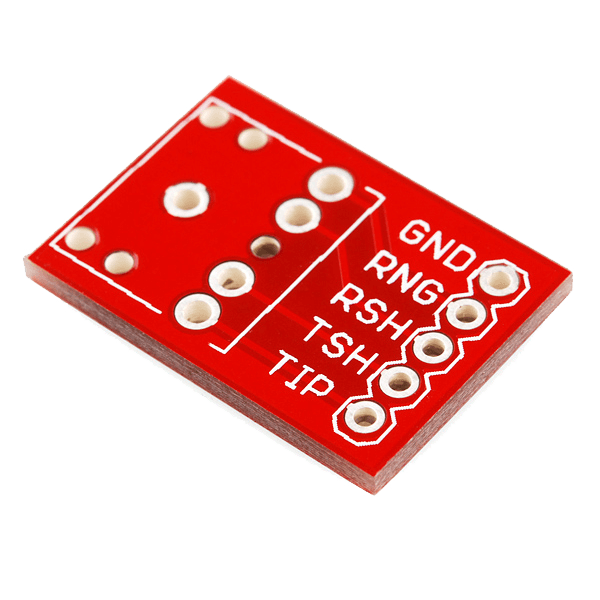

Audio Jack Breakout

Simple breakout board for the 3.5mm audio jack.
Use this breakout (shipped bare) to allow breadboard or SIP access to the super-common 3.5mm audio jack.
All five pins are broken out.

Note: You get the bare PCB only, go here for the Audio Jack.
