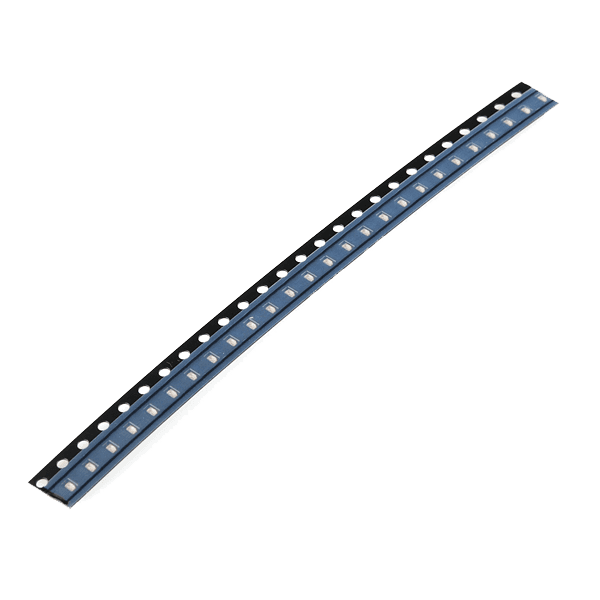

Product image 1

SMD LED 0603 - Strip of 25

There are more and more hobbyists taking advantage of surface mount technology these days.
With affordable tools like hot air and hotplate reflow ovens, electronics enthusiasts are shrinking their projects down to new levels of portability.
Unfortunately, It's not always easy to get your hands on small amounts of SMD parts so here's a part that every project could use more of: tiny little LEDs.

These are great for status lights or for building really small LED matrices. Don't expect them to be super bright, they're basically the standard green LED that shows up on our Arduino boards and things like that, but they do come in super handy when you're tight on space. Heads up, there are no markings on the package to indicate polarity so you'll need to take care when placing them.

Green Red White Blue

Features:

  • Forward Voltage: 2.2 V
  • Brightness: 15 mcd

Documents:

  • Datasheet

Features:

  • Forward Voltage: 1.8 V
  • Brightness: 100 mcd

Documents:

  • Datasheet

Features:

  • Forward Voltage: 3.6 V
  • Brightness: 200 mcd

Documents:

  • Datasheet

Features:

  • Forward Voltage: 3.0 V
  • Brightness: 85 mcd

Documents:

  • Datasheet
Sold by
Maker Commission: 10%

Blueprint creators earn this percentage when customers purchase through their Blueprints

$4
SMD LED 0603 - Strip of 25
$4
