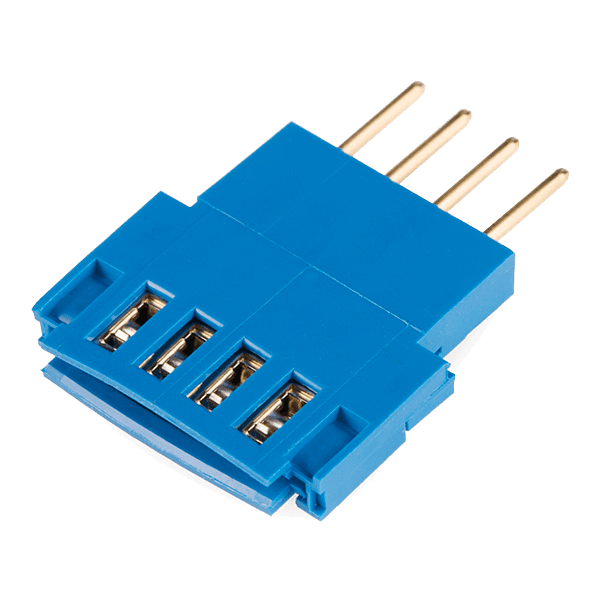

Product image 1

Conductive Ribbon - 4-Conductor (Connector)

These crimp connectors can be used to terminate our 4-wire conductive ribbon.
Simply insert the end of the ribbon into the connector and press it closed.
The "teeth" inside the connector will crimp around the conductors and break them out to 4 standard 0.1" spaced pin headers!

The compatible conductive ribbon can be found here.

Note: When using this with the conductive ribbon, you will need to trim the overall width a bit to fit into the housing. You can do this just for the part that fits inside the connector.

Documents:

  • Datasheet
  • Crimp Connector Tutorial
Sold by
Maker Commission: 10%

Blueprint creators earn this percentage when customers purchase through their Blueprints

$3
Conductive Ribbon - 4-Conductor (Connector)
$3
