Product image 1

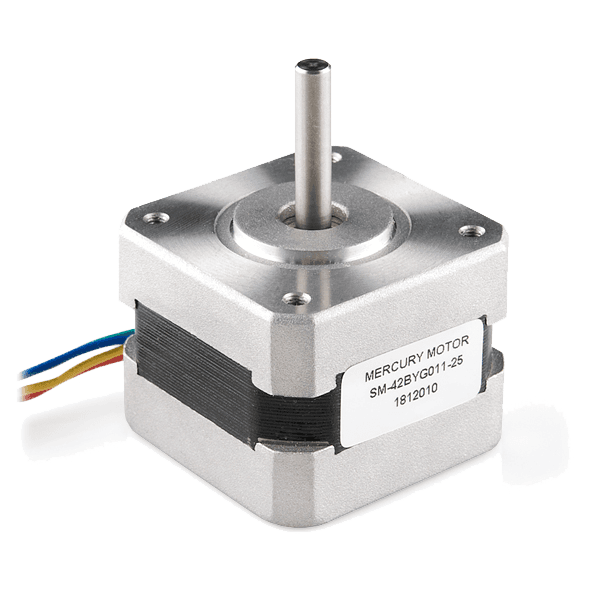

Stepper Motor with Cable

This is a simple, but very powerful stepper motor with a 4-wire cable attached.

This is a Bipolar Motor.



Features:

  • Step Angle (degrees) :1.8
  • 2 Phase
  • Rated Voltage : 12V
  • Rated Current : 0.33A
  • Holding Torque : 2.3kg*cm
  • 5mm Diameter Drive Shaft
  • Winding resistance: 32.6 Ω
  • Winding inductance: 48 mH
  • Max flux linkage: 1.8 Vs
  • Maximum Detent Torque: 0.016 N.M
  • Total inertia (kg.m.m): 3.5 Kg.m.m
  • Total friction (kg.m/s): 4 Kg.m/s

Documents:

  • Datasheet
Sold by
Maker Commission: 10%

Blueprint creators earn this percentage when customers purchase through their Blueprints

$14
Stepper Motor with Cable—
$14
