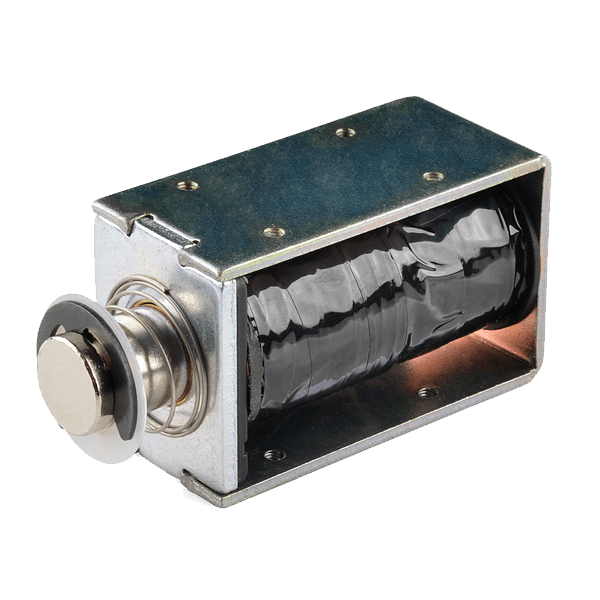

Product image 1

Solenoid - 36 V

Solenoids are a great way to induce linear motion for pushing, pulling or controlling switches and levers.
According to the datasheet this solenoid is rated for 36V but they work like a charm at 12V.
We've been controlling them with the Arduino Power Driver Shield, there's even some example code below.
With a throw of 10mm these solenoids are great for all kinds of motion applications such as actuating door latches, automating percussion instruments or just poking people.

Note: The datasheet indicates a throw of 25mm however we've measured a throw of 10mm.

Documents:

  • Datasheet
  • Example Code
Sold by
Maker Commission: 10%

Blueprint creators earn this percentage when customers purchase through their Blueprints

$14
Solenoid - 36 V
$14
