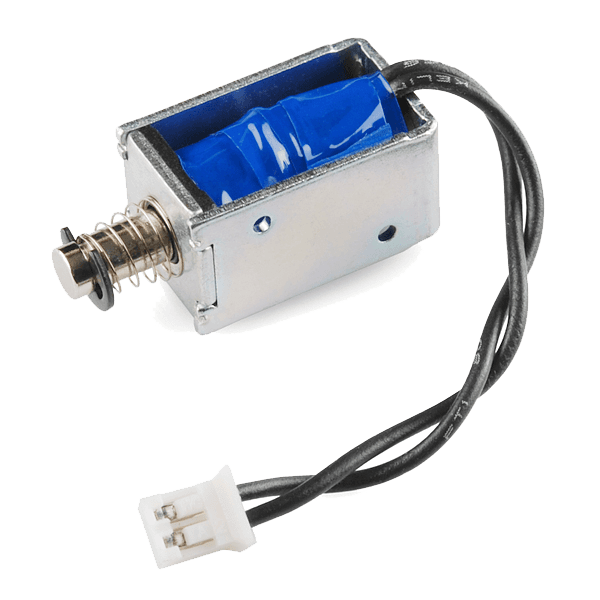

Solenoid - 5V (small)

Solenoids are a great way to induce linear motion for pushing, pulling or controlling switches and levers.
This smaller solenoid is designed to work directly with 5V which makes it a great match for embedded projects. It has a throw of about 4.5mm and 2 M2 mounting holes on the body.


The wire lead is about 5cm long and is terminated with a 2-pin JST PH connector.

Note: The mounting holes on this solenoid are actually 1.6mm in diameter.
This will allow you to tap for an M2 screw. Also, although the datasheet lists a throw of 6mm, the actual throw appears to be closer to 4.5mm.

Documents:

  • Datasheet (ZHO-0420S-05A4.5)
Sold by
Maker Commission: 10%

Blueprint creators earn this percentage when customers purchase through their Blueprints

$5
48 in stock
Solenoid - 5V (small)
$5
