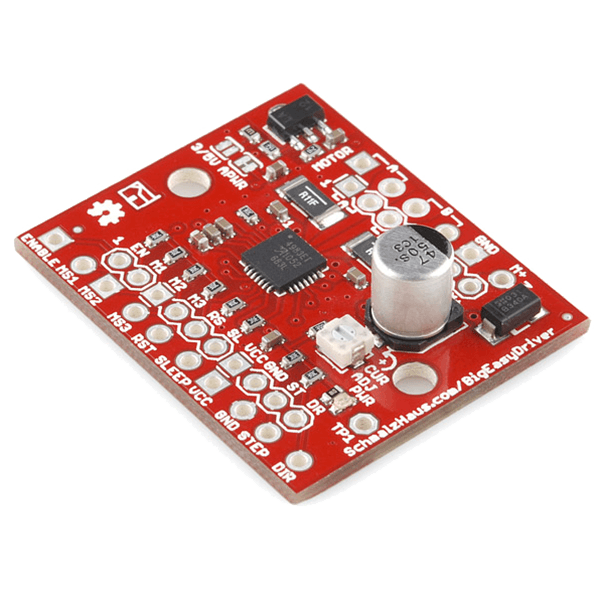

The Big Easy Driver, designed by Brian Schmalz, is a stepper motor driver board for bi-polar stepper motors up to 1.4A/phase. It is based on the Allegro A4988 stepper driver chip. It’s the next version of the popular Easy Driver board.

Each Big Easy Driver can drive up to about 1.4A per phase of a bi-polar stepper motor.
It is a chopper microstepping driver which defaults to 16 step microstepping mode.
It can take a maximum motor drive voltage of around 35V, and includes on-board 5V/3.3V regulation, so only one supply is necessary.
Although this board should be able to run most systems without active cooling, a heatsink is recommended for loads approaching 1.4A/phase.

Note: This product is a collaboration with Brian Schmalz. A portion of each sales goes back to him for product support and continued development.

Note: The silkscreen on these boards HAS been fixed, we are just waiting on updated pics.

Features:

• Bi-polar Microstepping Driver
• 1.4A/Phase Max
• Max Motor Drive Voltage: 35V
• On-board 5V/3.3V Regulation

Documents:

• Schematic
• Eagle Files
• Datasheet (A4988)
• Design Site
• Bildr Tutorial
• GitHub
• Product Video

Replaces:ROB-11699
