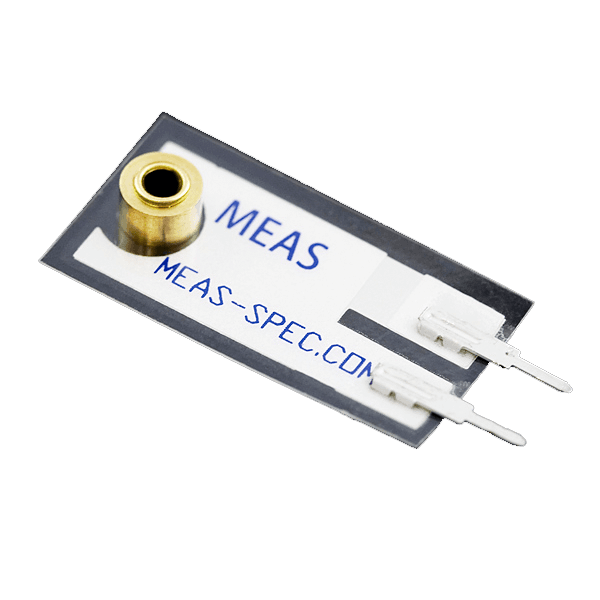

Piezo Vibration Sensor - Large with Mass

This basic piezo sensor from Measurement Specialties is often used for flex, touch, vibration and shock measurements.
A small AC and large voltage (up to +/-90V) is created when the film moves back and forth.
A simple resistor should get the voltage down to ADC levels.
Can also be used for impact sensing or a flexible switch.

Comes with solderable crimp pins and a mass attached to the tip. This mass increases the sensitivity to motion.

Features:

  • Flexible PVDF Piezo Polymer Film
  • Wide dynamic range
  • Laminated for higher voltage output
  • 0.1" breadboard friendly leads

Documents:

  • Datasheet (LDT0-028K)
  • Technical manual
Sold by
Maker Commission: 10%

Blueprint creators earn this percentage when customers purchase through their Blueprints

$4
Low stock — 1 left
Piezo Vibration Sensor - Large with Mass
$4
