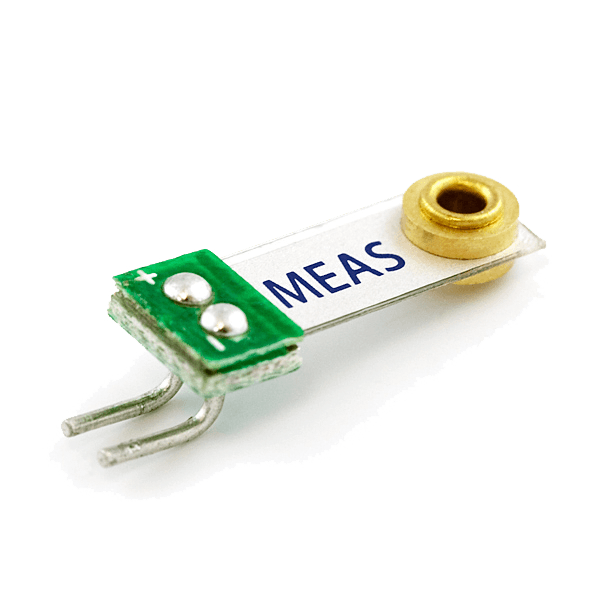

Piezo Vibration Sensor - Small Vertical

The Minisense 100 from Measurement Specialties is a low-cost cantilever-type vibration sensor loaded by a mass to offer high sensitivity at low frequencies.
Useful for detecting vibration and 'tap' inputs from a user.
A small AC and large voltage (up to +/-90V) is created when the film moves back an forth.
A simple resistor should get the voltage down to ADC levels. Can also be used for impact sensing or a flexible switch.

Comes with solder pins that allows for vertical mounting.

Features:

  • Flexible PVDF Piezo Polymer Film
  • Wide dynamic range
  • Laminated for higher voltage output
  • Breadboard friendly leads

Documents:

  • Datasheet
  • Technical manual
Sold by
Maker Commission: 10%

Blueprint creators earn this percentage when customers purchase through their Blueprints

$4
Piezo Vibration Sensor - Small Vertical
$4
