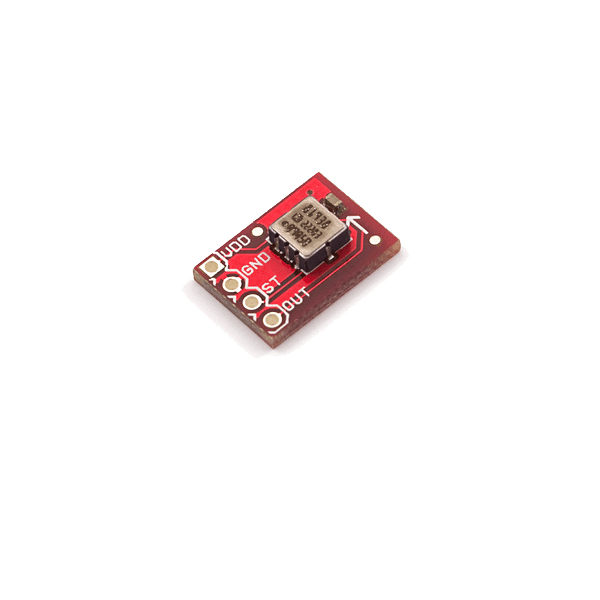

Single Axis Accelerometer Breakout Board - ADXL193 +/-250g

Breakout board for the low power, single axis ADXL193 MEMS accelerometer. The ADXL193 is a high-g sensor with a full scale range of ±250g!
The ADXL193 can be powered from 3.5-6V. Access to the self-test pin is also provided.

Note: The ADXL193 outputs an analog voltage.
This voltage is in ratio to the measured acceleration and to the supply voltage.
You will need some extra hardware to convert this analog signal to a usable digital one. Luckily, many uCs have a built in Analog to Digital converter.

Dimensions: 0.4x0.55"

Features:

  • Sensing Range: ± 250g
  • Output Signal: Analog (ratiometric)

Documents:

  • Schematic
  • Eagle Files
  • Datasheet (ADXL193)
