Do you dream of basking in the glow of 8-Bit VGA? Dream no longer, my friend.

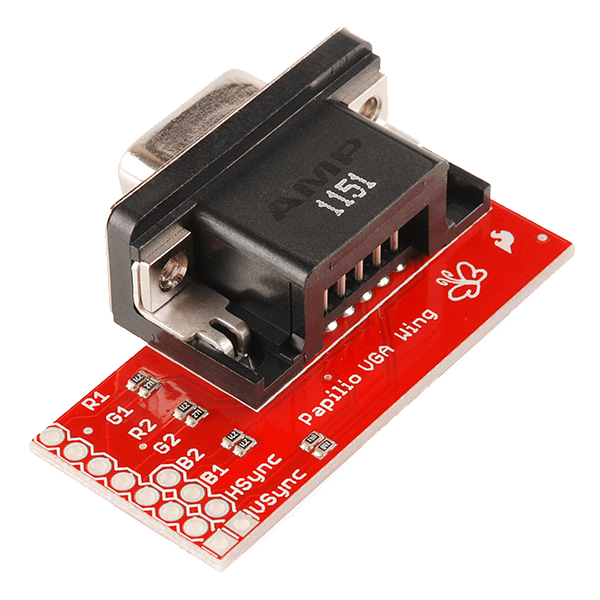

The Papilio VGA Wing has all of the hardware you need to add a VGA output to your next Papilio project.

VGA is great because it's fairly universal, grab any old computer monitor and you've got yourself a full-color display to output graphics, text or just amorphous clouds of colorful fluff.
The VGA Wing is comprised of a standard 15-pin High Density connector which is connected via resistor voltage dividers to a row of male pin headers which will plug directly into your Papilio FPGA development board.

VGA graphics can be generated by ZPUino, a supercharged Arduino-compatible soft-processor, using the VGA Library!

Note: This product is a collaboration with Jack Gasset. A portion of each sales goes back to him for product support and continued development.

Features:

• Add VGA graphics capability to your Papilio project
• Voltage Divider design allows for fast response times
• 8-Bit Color!

Documents:

• Schematic
• Eagle Files
• Getting Started
• Papilio Quickstart
• GitHub
