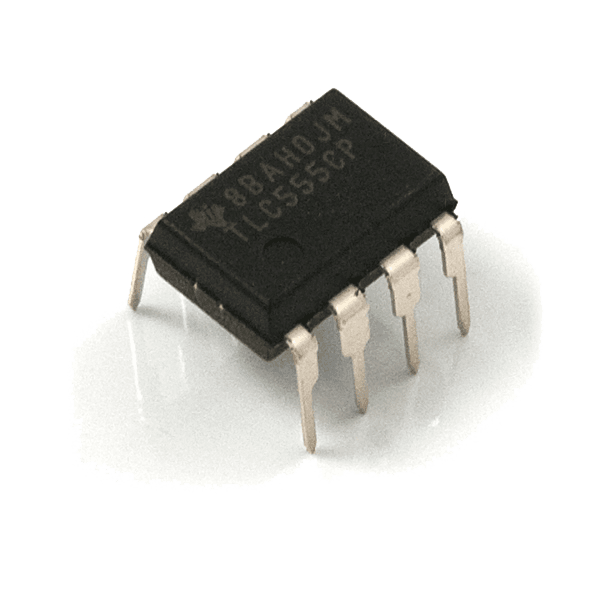

Product image 1

555 Timer

This is a common 555 timer/oscillator from TI. A classic for all of those first year circuits projects where you need to blink an LED, generate tone, and thousands of other great beginning projects.
Google around for a huge list of resources and example projects.



Features:

  • 4.5V to 16V supply
  • 8-pin DIP package
  • Timing from microseconds to hours
  • Astable or monostable operation
  • Adjustable duty cycle
  • TTL compatible output
  • Sink or source up to 200mA

Documents: Datasheet

Sold by
Maker Commission: 10%

Blueprint creators earn this percentage when customers purchase through their Blueprints

$2
7 in stock
555 Timer
$2
