Convex and Concave Lenses Ground as a Pair

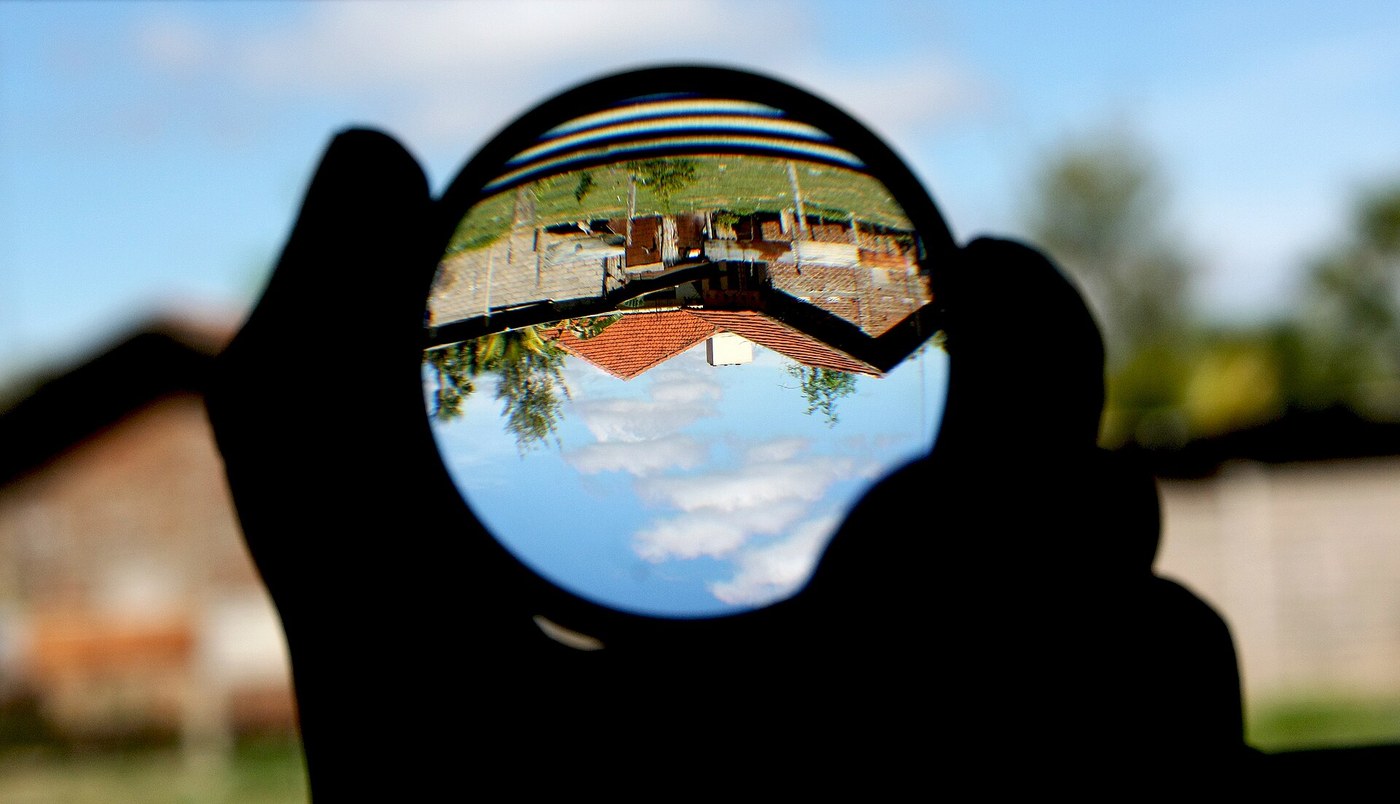

Rub one glass disc over another with wet grit and both change shape: the one on top goes hollow, the one beneath goes domed, and they stay a perfect fit. Grind both faces of a pair this way and the bottom disc becomes a double-convex lens, the top one a double-concave lens of the same curve. Longer work gives deeper curves and shorter focal lengths. The picture: a double-convex lens held at arm's length shows the scene small and upside down.
Nâng cao
Several days per pair

Hướng dẫn

1

Cut two discs

Score two equal circles on the glass sheet, snap them out and nibble the edges round with grozing pliers. Fix a short wooden handle to the back of each with warm pitch.

Vật liệu cho bước này:

Tấm kínhTấm kính1 cái
Keo nhựa thôngKeo nhựa thông20 g
Nan gỗ cứngNan gỗ cứng1 cái

Công cụ cần thiết:

Dao cắt kínhDao cắt kính
Kìm gặm kínhKìm gặm kính
Kính bảo hộKính bảo hộ
2

Rough grind the first faces

Lay one disc face up on a firm table, wet it and sprinkle coarse grit. Push the other disc over it, face down, in short strokes, turning both a little all the time. The top one becomes concave, the bottom convex. Rinse and recharge as the grit wears.

Vật liệu cho bước này:

Hạt mài cacbua silicHạt mài cacbua silic50 g
NướcNước2 lít

Công cụ cần thiết:

Thước kẻThước kẻ
3

Check the curve

Lay a ruler across the hollow disc and measure the depth at the centre with the caliper. Keep the top disc on top to deepen the curve; swap them to flatten it.

Công cụ cần thiết:

Thước kẻThước kẻ
Thước cặp điện tử 6 inchThước cặp điện tử 6 inch
4

Fine grind and polish

Go through finer grits, washing everything clean between grits. Polish each face on a pitch lap pressed to the other disc's curve, with tin oxide (putty powder) and water, until clear.

Vật liệu cho bước này:

Hạt mài cacbua silicHạt mài cacbua silic30 g
Oxit thiếc (thiếc dioxit)Oxit thiếc (thiếc dioxit)30 g
Keo nhựa thôngKeo nhựa thông100 g
5

Turn them over, do the second faces

Move the handles to the finished faces and grind the other sides the same way, the same disc on top, to the same depth. The bottom disc is now a double-convex lens, the top one double-concave.

Vật liệu cho bước này:

Hạt mài cacbua silicHạt mài cacbua silic60 g
Oxit thiếc (thiếc dioxit)Oxit thiếc (thiếc dioxit)20 g

Công cụ cần thiết:

Thước cặp điện tử 6 inchThước cặp điện tử 6 inch
6

Find the focal length

Hold the convex lens in sunlight over paper and move it until the spot is smallest; that distance is its focal length. Grind more pairs to different depths for a set of focal lengths.

Công cụ cần thiết:

Thước kẻThước kẻ
7

Focal length from the curve

Đang tải sổ tay Jupyter…
8

Limits

Which disc goes hollow is the mirror makers' rule (Sky & Telescope, Stellafane); the lens formula is from Wikipedia. Window glass is not optical glass: expect some colour fringes and bubbles.
