Glass Retort: a Blown Bulb with a Long Neck Bent Down
A retort is the old distilling vessel: a round glass bulb whose long neck bends down to a receiver, so the neck itself condenses the vapour. Alchemists used it, and so did Lavoisier and Berzelius before condensers. Blow a bulb on a long tube, bend the tube down in a wide flame, and add a corked filling hole on top.

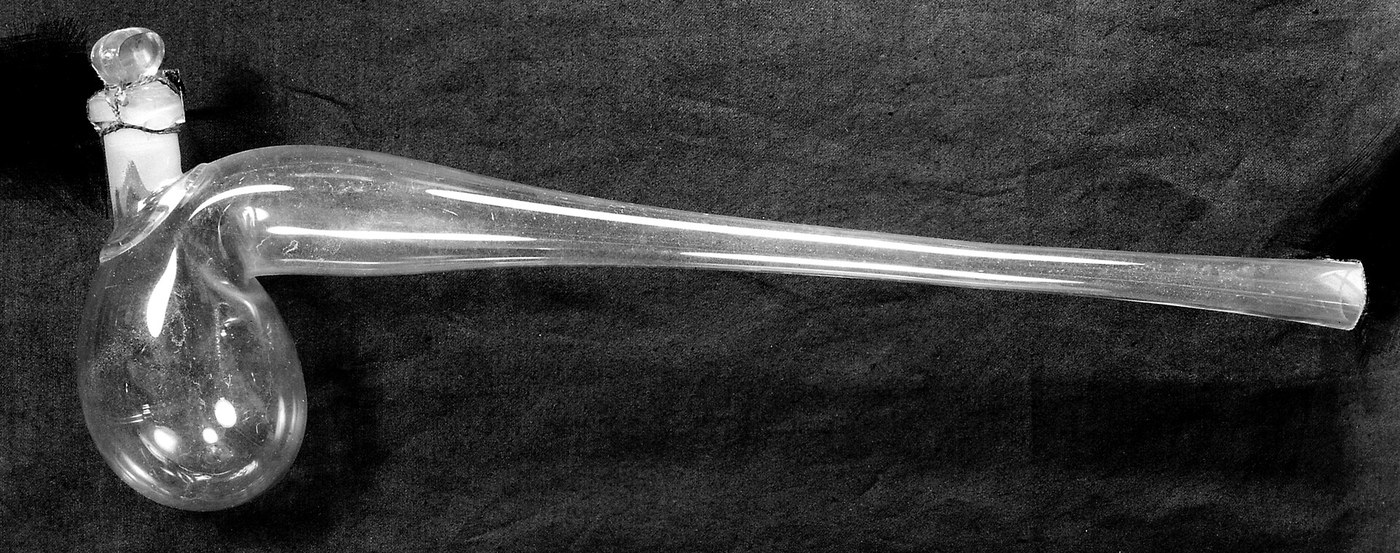

The picture: a mid-19th-century glass retort with a stoppered filling hole (Wellcome Collection).
Nâng cao
Two hours, plus annealing
Hướng dẫn
1
1
Blow the bulb on a long tube
Blow the bulb on a long tube
Close one end of a long tube, gather glass and blow a round bulb, as for a flask. Keep the rest of the tube full length for the neck.
Vật liệu cho bước này:
Bộ ống thủy tinh1 cáiCông cụ cần thiết:
Đèn khò thổi thủy tinh để bàn
Kính bảo hộ
Găng tay chịu nhiệt2
2
Bend the neck down
Bend the neck down
Warm a long stretch of the tube just past the bulb in a wide, soft flame, turning it, until it bends under its own weight. Bend it smoothly so the neck slopes down at a sharp angle, without kinking.
Công cụ cần thiết:
Đèn khò thổi thủy tinh để bàn
Găng tay chịu nhiệt3
3
Filling hole
Filling hole
Heat a spot on the top of the bulb, blow it out into a small bubble, break it off and open it into a short collar with the jacks for a cork.
Công cụ cần thiết:
Đèn khò thổi thủy tinh để bàn
Jacks (kìm của người thợ thủy tinh)
Nút bần4
4
Cut and anneal
Cut and anneal
Cut the neck end square, fire-polish it, and anneal the retort in the kiln, cooling slowly.
Công cụ cần thiết:
Bút vạch dấu mũi kim cương
Đèn khò thổi thủy tinh để bàn
Lò nung5
5
Neck length for cooling
Neck length for cooling
Đang tải sổ tay Jupyter…
