Horseshoe Nails Forged and Headed from Iron Rod
Horseshoe nails hold the shoe through the hard outer wall of the hoof. They are shaped to bend outward as they are driven, so the point comes out through the wall, where it is cut off and clinched over. A shoe complete with its nails was found in a fifth-century grave. Draw a flat tapering shank, bevel the point on one side, and head it.

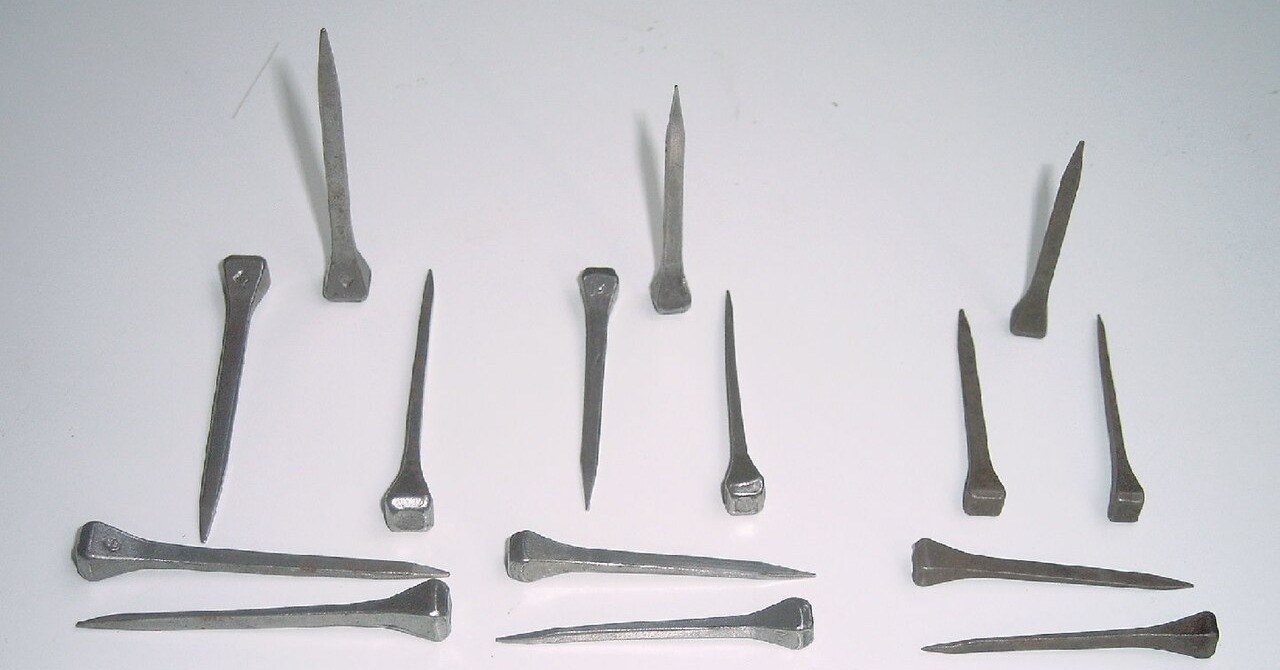

The picture: horseshoe nails in three sizes.
Trung cấp
Half a day
Hướng dẫn
1
1
Draw the shank
Draw the shank
Heat the end of the rod and draw a flat, tapering shank about 45 mm long, thinner toward the point.
Vật liệu cho bước này:
Que sắt rèn2 mCông cụ cần thiết:
Lò rèn của thợ rèn
Đe
Búa đầu nêm ngang
Kìm rèn
Găng tay hàn
Kính bảo hộ2
2
Bevel the point
Bevel the point
Forge a short bevel on one face of the point only. Mark that face: it goes toward the inside of the hoof, so the nail turns outward.
Công cụ cần thiết:
Đe
Búa đầu nêm ngang
Kìm rèn
Găng tay hàn
Kính bảo hộ3
3
Cut and head
Cut and head
Nick the rod on the hardy a little above the shank, drop the shank into the header, snap it off and hammer the stub into a tapered, wedge-shaped head that will sit in the nail hole of the shoe.
Công cụ cần thiết:
Lò rèn của thợ rèn
Đục cắt trên đe
Bàn tạo đầu đinh
Búa đầu nêm ngang
Kìm rèn
Găng tay hàn
Kính bảo hộ4
4
Finish
Finish
Let them cool in air so the iron stays soft enough to clinch. File off any burr and check each one is straight.
Công cụ cần thiết:
Giũa kim loại5
5
Nails for a set
Nails for a set
