Marking Knife: One Piece of Tool Steel, Skewed Single Bevel

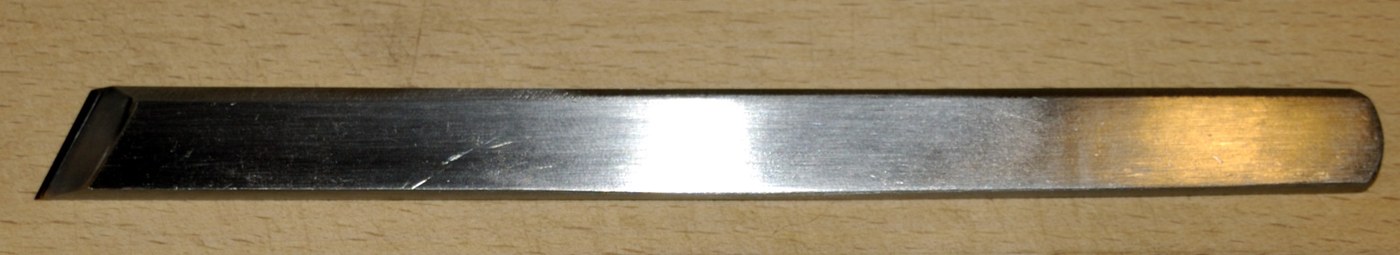

A marking knife cuts a fine line across the grain, held like a pencil against a straightedge or square. The simplest is one piece of tool steel with a skewed end bevelled on one side only, like the Japanese shirabiki; the flat side runs against the square. Forge the strip, grind the skew, harden and hone. The picture: a shirabiki, a one-piece marking knife with a skewed single-bevel end.
Cơ bản
Half a day

Hướng dẫn

1

Forge the strip

Draw tool steel to a flat strip about 16 mm wide, 3 mm thick and 18 cm long (our size). Straighten it and file both faces flat.

Vật liệu cho bước này:

Thanh thép dụng cụ dẹtThanh thép dụng cụ dẹt1 cái
Than củiThan củi1 as required

Công cụ cần thiết:

Lò rèn của thợ rènLò rèn của thợ rèn
ĐeĐe
Búa đầu nêm ngangBúa đầu nêm ngang
Kìm rènKìm rèn
Giũa kim loạiGiũa kim loại
Ê tô bàn nguộiÊ tô bàn nguội
2

Grind the skew

Grind the end square across, then at a skew of about 40° (ours), and grind a bevel on one face only. Bevel on the right face for a right-handed knife, on the left for a left-handed one.

Công cụ cần thiết:

Bánh đá màiBánh đá mài
3

Harden and temper

Heat the end to cherry red, quench in water, polish, and temper to a straw colour.

Vật liệu cho bước này:

NướcNước10 lít

Công cụ cần thiết:

Lò rèn của thợ rènLò rèn của thợ rèn
Thùng tôi nướcThùng tôi nước
Kìm rènKìm rèn
4

Hone

Hone the bevel, then lap the flat side dead flat on the stone so it runs true against the square.

Công cụ cần thiết:

Đá mài hạt 1000Đá mài hạt 1000
5

The skew
