Secateurs: Forged Bypass Pruning Shears with a Spring and Catch
Secateurs, credited to Bertrand de Molleville around 1813, are one-hand shears for live wood. The bypass kind has a sharp blade that slides past a hooked counter-blade like scissors, cutting cleanly without crushing; a spring opens the handles and a catch holds them shut. Forge the two halves, harden the blade, rivet the pivot, and fit the spring and catch.

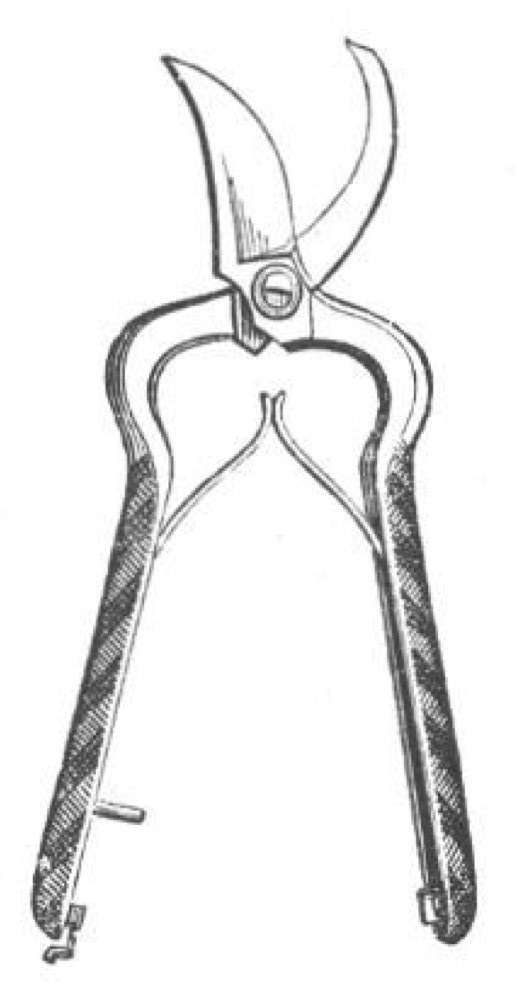

The picture: 19th-century secateurs with a leaf spring between the handles, from Baltet's L'art de greffer.
Nâng cao
Two days
Hướng dẫn
1
1
Forge the halves
Forge the halves
Forge two halves from tool steel: one with a curved cutting blade, one with a thicker hooked counter-blade, each with a flat boss for the pivot and a handle about 15 cm long (our size).
Vật liệu cho bước này:
Thanh thép dụng cụ bát giác0.5 kg
Than củi3 as requiredCông cụ cần thiết:
Lò rèn của thợ rèn
Đe
Búa đầu nêm ngang
Kìm rèn
Găng tay hàn
Kính bảo hộ2
2
Fit and rivet
Fit and rivet
Anneal, file the inner faces of the blades flat so they slide close past each other, drill the bosses and rivet them with a firm but free pivot.
Vật liệu cho bước này:
Đinh tán thép1 cáiCông cụ cần thiết:
Lò rèn của thợ rèn
Giũa kim loại
Ê tô bàn nguội
Khoan tay
Búa đầu nêm ngang3
3
Harden the blade
Harden the blade
Grind a single bevel on the cutting blade, harden it in water and temper to a straw colour; leave the counter-blade softer.
Vật liệu cho bước này:
Nước10 lítCông cụ cần thiết:
Lò rèn của thợ rèn
Thùng tôi nước
Kìm rèn
Găng tay hàn
Kính bảo hộ4
4
Spring and catch
Spring and catch
Forge a V-shaped leaf spring from flat tool steel, leave it springy, and rivet its legs inside the handles. Bend a wire loop on one handle that hooks over the other to hold the shears closed.
Vật liệu cho bước này:
Thanh thép dụng cụ dẹt1 cái
Đinh tán thép2 cái
Dây thép0.2 mCông cụ cần thiết:
Lò rèn của thợ rèn
Búa đầu nêm ngang
Khoan tay
Kìm mỏ dẹt5
5
Sharpen
Sharpen
Hone the bevel only, never the flat face, and check the blades meet without a gap along the cut.
Công cụ cần thiết:
Đá mài hạt 10006
6
Cutting force near the pivot
Cutting force near the pivot
Đang tải sổ tay Jupyter…
Vật liệu
6- Tạm thời
- 3 as requiredTạm thời
- 2 cáiTạm thời
- 10 lítTạm thời
- Tạm thời
- 0.2 mTạm thời
