Sorting Table: Oak Plank Top on Two Trestles
The trestle table, boards laid over two trestles, was the commonest Western table until the 16th century. It makes a plain sorting table: a wide, flat top to spread samples on, that comes apart for storage. Batten oak planks into a top, and make two four-legged trestles with splayed legs.

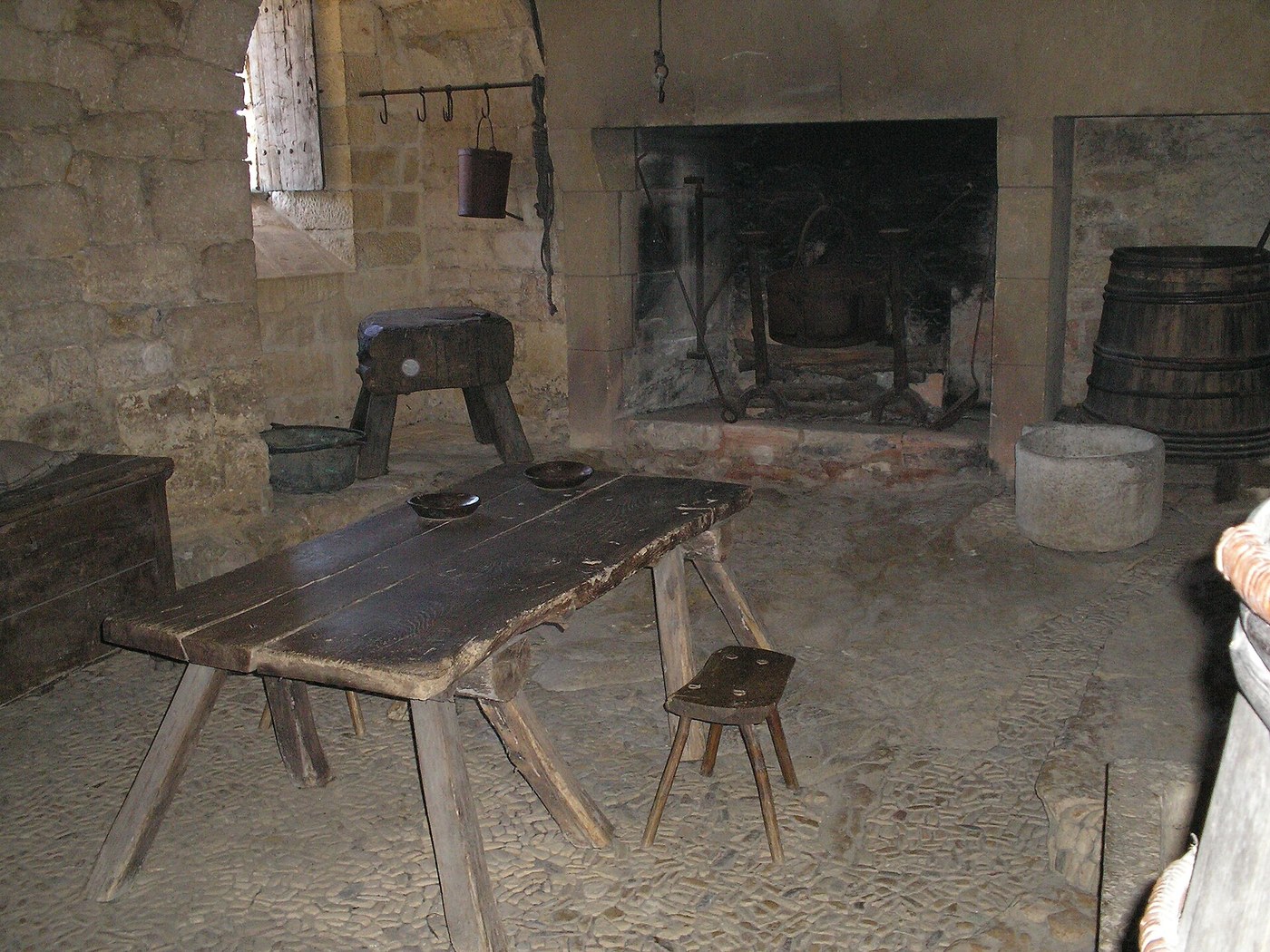

The picture: a plank table on four-legged trestles in the kitchen of the Château de Beynac.
Cơ bản
Two days
Hướng dẫn
1
1
Make the top
Make the top
Plane oak planks straight on their edges, lay them side by side to about 180 × 80 cm (our size), and nail battens across underneath near each end, set in so they sit just inside the trestles.
Vật liệu cho bước này:
Tấm ván gỗ cứng4 cái
Đinh sắt24 cáiCông cụ cần thiết:
Cưa tay
Bào tay
Thước thẳng chuẩn
Búa đầu nêm ngang2
2
Trestle beams
Trestle beams
Cut two beams as long as the top is wide. Mark and chop four splayed mortises in the underside of each, near the ends.
Vật liệu cho bước này:
Dầm gỗ1 cáiCông cụ cần thiết:
Cưa tay
Cữ vạch
Đục mộng
Vồ chạm khắc3
3
Legs
Legs
Shave eight legs, tenon their tops to the mortises, and drive them in with glue-free wedges so they splay outward (step 5).
Vật liệu cho bước này:
Tấm ván gỗ cứng1 cáiCông cụ cần thiết:
Dao nạo hai cán
Cưa tay
Vồ chạm khắc
Khoan tay4
4
Set it up
Set it up
Stand the trestles apart, lay the top on them with the battens inside the beams, and saw the leg ends so it stands level.
Công cụ cần thiết:
Cưa tay
Thước thẳng chuẩn5
5
Leg splay
Leg splay
Đang tải sổ tay Jupyter…
