Wooden Barrel: Bulged Oak Staves Bent by Fire, with Two Heads

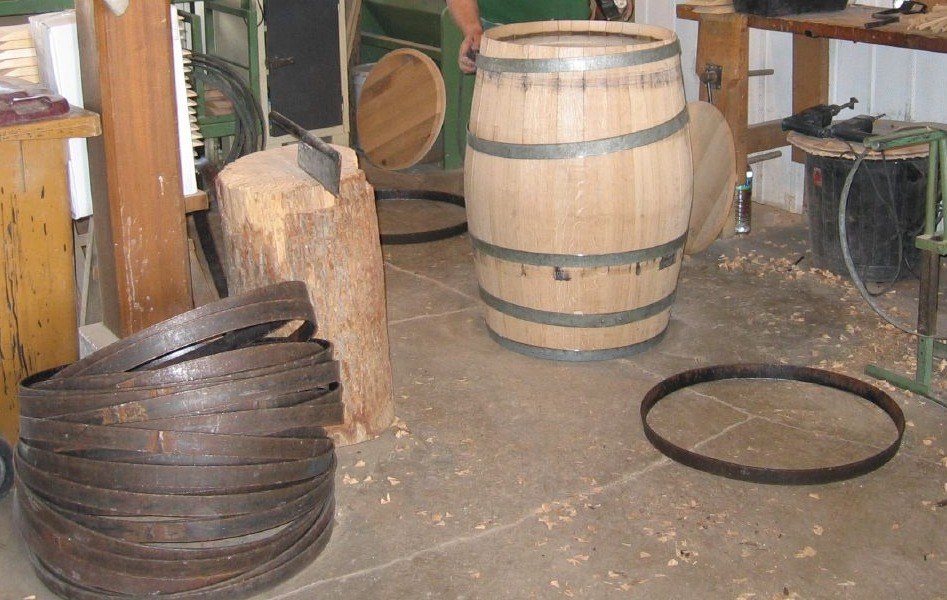

A barrel is the cooper's closed vessel: oak staves held by hoops, bulging at the middle, with flat heads set in grooves at both ends. Coopers heat the staves to bend them. Shape staves wider at the middle than the ends, raise them in a hoop, heat them over a small fire and draw the open end together, drive the hoops, and fit the heads. The picture: a new oak barrel in a cooper's workshop, with iron hoops on the floor.
Nâng cao
Several days

Hướng dẫn

1

Shape the staves

Rive and shave oak staves as for the vat, but taper each from the middle toward both ends, and hollow the inside face a little.

Vật liệu cho bước này:

Tấm ván gỗ cứngTấm ván gỗ cứng8 cái

Công cụ cần thiết:

Dao chẻ gỗ (froe)Dao chẻ gỗ (froe)
Ghế bàoGhế bào
Dao nạo hai cánDao nạo hai cán
Bào tayBào tay
2

Raise and fire

Stand the staves inside one hoop to form a skirt. Light a small charcoal fire inside, wet the outside, and as the staves warm, draw the open end together with a rope round it until a hoop can be driven on.

Vật liệu cho bước này:

Than củiThan củi3 as required
NướcNước10 lít

Công cụ cần thiết:

Vành sắtVành sắt
Dây thừng chịu lựcDây thừng chịu lực
Búa đầu nêm ngangBúa đầu nêm ngang
Găng tay chịu nhiệtGăng tay chịu nhiệt
3

Hoops

Drive the rest of the iron hoops on, two near each end and two at the quarters, until the joints close tight.

Vật liệu cho bước này:

Vành sắtVành sắt6 cái

Công cụ cần thiết:

Búa đầu nêm ngangBúa đầu nêm ngang
4

Ends and grooves

Level the ends and bevel the inside edge with the adze, then cut a groove round the inside near each end.

Công cụ cần thiết:

Rìu lưỡi ngangRìu lưỡi ngang
Bộ đụcBộ đục
5

Heads and bung

Join planks into two boards, scribe circles to fit the grooves, cut and bevel them, slack the end hoops and spring the heads in. Bore a bung hole in the middle stave. Fill with water to swell it tight.

Vật liệu cho bước này:

Tấm ván gỗ cứngTấm ván gỗ cứng2 cái
NướcNước50 lít

Công cụ cần thiết:

Compa hai mũi nhọnCompa hai mũi nhọn
Cưa tayCưa tay
Bào tayBào tay
Búa đầu nêm ngangBúa đầu nêm ngang
Khoan tayKhoan tay
6

Capacity of a barrel

Đang tải sổ tay Jupyter…
