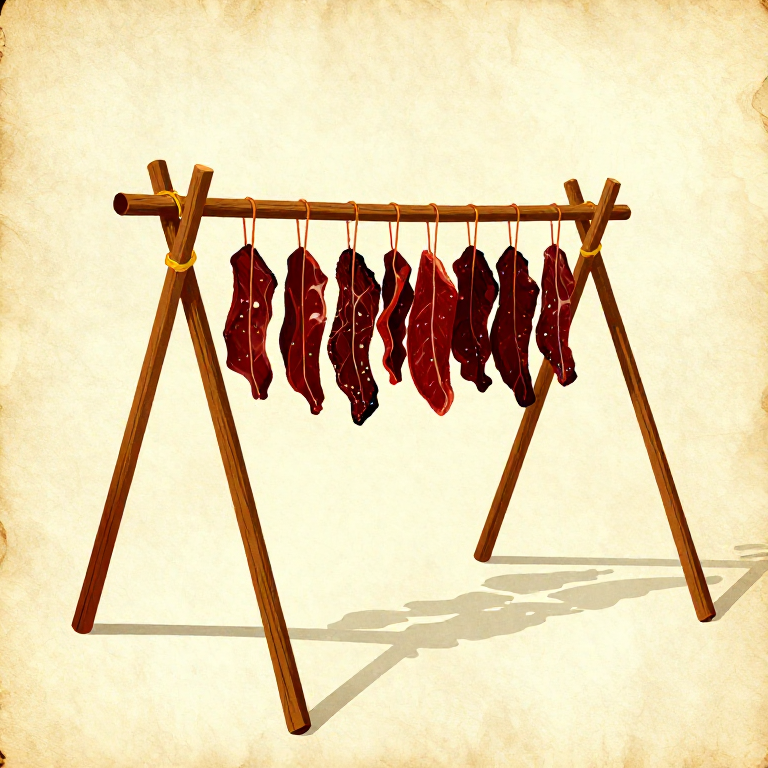

Building a Food Drying Rack — Sun and Wind Preservation Frame
Sun drying is the simplest and oldest method of food preservation — removing moisture from meat, fish, fruit, herbs, and roots until bacterial activity ceases. A drying rack elevates food off the ground where air circulates freely on all sides, dramatically speeding the drying process compared to laying food on rocks or the ground. Elevated racks also keep food away from insects, scavenging animals, and ground moisture. The basic design is a horizontal grid of sticks supported by four upright poles, built in an open location with good airflow and direct sun exposure. Drying racks were essential at seasonal fish runs, berry harvests, and after large hunts when more food was available than could be eaten fresh.
Beginner
1-2 hours
Instructions
1
1
Select a Site
Select a Site
Select a site with good sun exposure and airflow — avoid shaded or low-lying areas.
2
2
Cut Upright Poles
Cut Upright Poles
Cut four upright poles 1.5-2m long from straight hardwood.
Materials for this step:
Hardwood Sapling4 pieces3
3
Drive Uprights into the Ground
Drive Uprights into the Ground
Sharpen the bottom ends and drive them into the ground in a rectangle (roughly 1.5m x 1m).
4
4
Lash Horizontal Crossbars
Lash Horizontal Crossbars
Lash two horizontal crossbars between the tops of the upright poles on the long sides.
Materials for this step:
Cordage2 pieces5
5
Lay the Drying Platform Sticks
Lay the Drying Platform Sticks
Lay thin, straight sticks (0.5-1cm diameter) across the crossbars, spaced 2-3cm apart, to create the drying platform.
6
6
Lash Each Stick in Place
Lash Each Stick in Place
Lash each stick to the crossbars so they cannot roll or shift.
7
7
Ensure Sufficient Height
Ensure Sufficient Height
The platform should be at least 1m off the ground.
8
8
Prepare the Food
Prepare the Food
Cut food (meat, fish, fruit) into thin strips or slices for fastest drying.
9
9
Lay Food on the Rack
Lay Food on the Rack
Lay food on the rack in a single layer with space between pieces for airflow.
10
10
Monitor the Drying Process
Monitor the Drying Process
Drying takes 1-3 days depending on humidity, temperature, and thickness — food is done when it snaps or is leathery with no moisture when squeezed.
