Silver Conductive Paint: Silver Powder in Polystyrene and Benzene, Dried at 25-75 °C (NBS Circular 468, 1947)

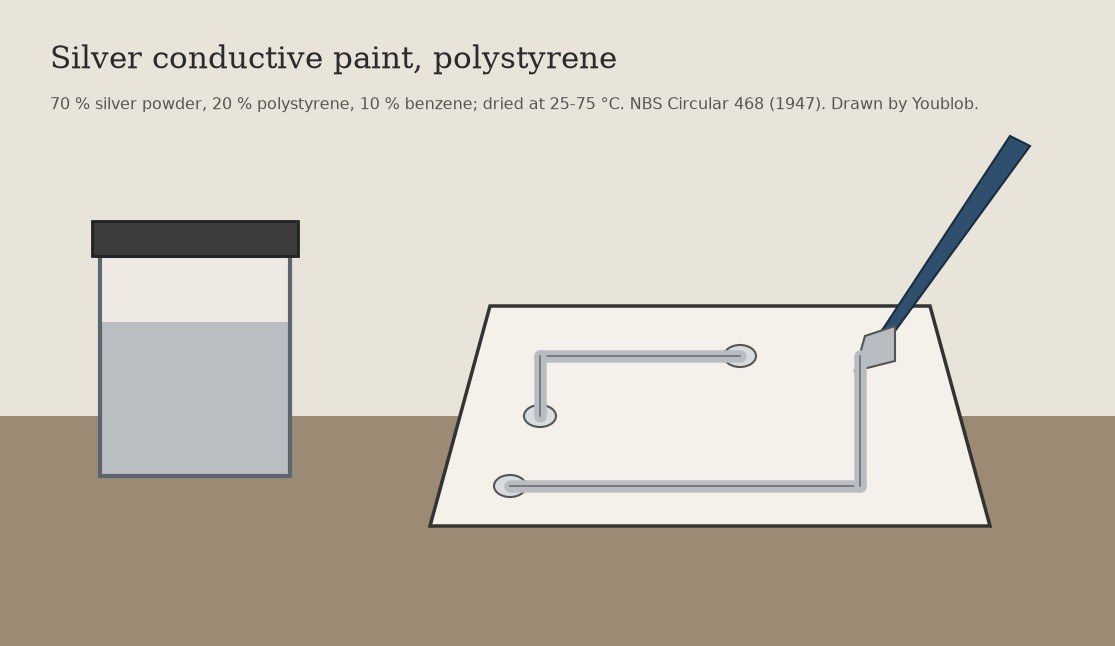

A silver paint that conducts once it dries at room heat, with no firing, so it can go on plastics and be used to fix leads and draw conductors. Fine silver powder is held in polystyrene dissolved in benzene. Source: Brunetti and Curtis, Printed Circuit Techniques, NBS Circular 468 (1947), Table 2, the column for thermoplastic plastics: 70 % silver powder, 20 % methacrylate or polystyrene resin, 10 % ketones, benzene, toluene or ethylene dichloride, dried at 25 to 75 °C. This is the polystyrene version. Ours: precipitated silver ground fine as the silver powder, and benzene of the four solvents. Picture drawn by Youblob.
