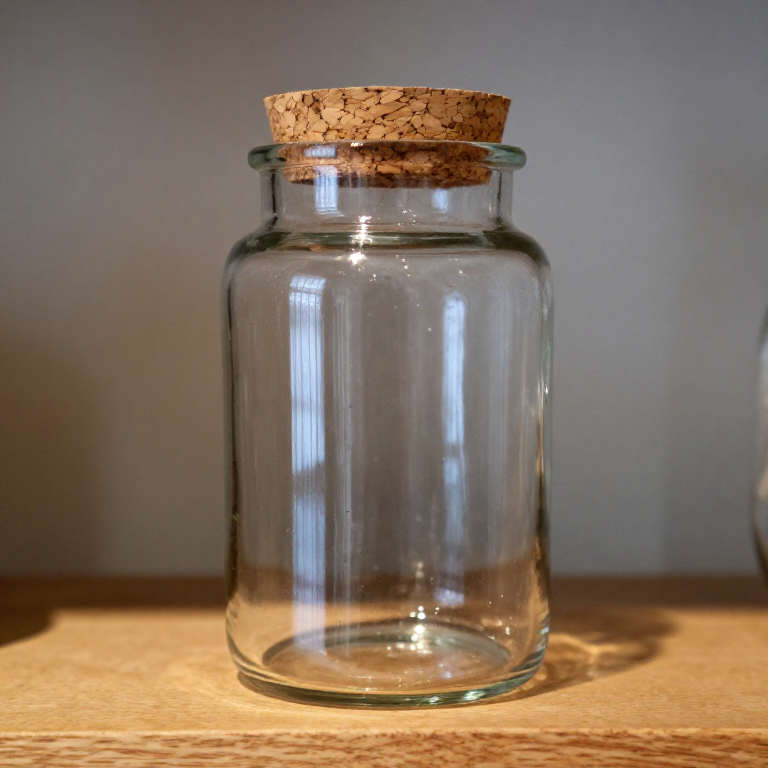

Blown Glass Jar with a Cork Lid
A jar is blown like a bottle, but instead of a narrow neck its mouth is opened out on the pontil to nearly the full width of the body, with straight walls and a flat base so it stands and can be filled with a spoon. A wide cork punched from bark makes the lid. All furnace work, the gather, the pontil and the annealing follow the bottle blueprint.
Ilọsíwájú
Half a day, plus annealing
Ìlànà
1
1
Gather, blow, pontil and anneal
Gather, blow, pontil and anneal
The furnace, gathering, transfer to the pontil and annealing, step by step.
2
2
Blow a straight-sided bubble
Blow a straight-sided bubble
Gather soda-lime glass, marver it into a cylinder and blow a bubble. Roll it on the marver to keep the walls straight and press the end flat on the marver for the base.
Àwọn ohun èlò fún ìgbésẹ̀ yìí:
Dígí soda-ẹfun1 kgÀwọn irinṣẹ́ tí a nílò:
Ààrò dígí tí ó lè dé 1100 ìwọ̀n Celsius
Ọ̀pá ìfẹ́ dígí
Marver (pẹpẹ ìyí ti dígí)
Ìjókòó afẹ́ dígí
Ìbọ̀wọ́ Tí Ń Fara Da Ooru
Gíláàsì ààbò3
3
Mark the shoulder
Mark the shoulder
Score a line with the jacks where the mouth will be, just beyond the full width of the body.
Àwọn irinṣẹ́ tí a nílò:
Ìdì àwọn agbẹ̀dígíÌjókòó afẹ́ dígí4
4
Transfer to the pontil
Transfer to the pontil
Attach the pontil to the base, crack the jar off the blowpipe at the scored line.
Àwọn irinṣẹ́ tí a nílò:
Ọ̀pá pontilÌjókòó afẹ́ dígí5
5
Open the mouth
Open the mouth
Reheat the open end and, turning the pontil on the bench rails, open it with the jacks until the mouth is as wide as the body. Fire-polish the rim smooth in the furnace.
Àwọn irinṣẹ́ tí a nílò:
Ìdì àwọn agbẹ̀dígíÀàrò dígí tí ó lè dé 1100 ìwọ̀n CelsiusÌjókòó afẹ́ dígí6
6
Crack off and anneal
Crack off and anneal
Crack the jar off the pontil straight into the annealing oven and anneal it as for the bottle.
Àwọn irinṣẹ́ tí a nílò:
Ààrò ìrọ̀ irinÌbọ̀wọ́ Tí Ń Fara Da Ooru7
7
Grind the pontil mark
Grind the pontil mark
When cold, grind the pontil scar on the base smooth on wet abrasive so it stands flat.
Àwọn irinṣẹ́ tí a nílò:
Bébà ìpọ́n
Òkúta ìpọ́n8
8
Cut a cork lid
Cut a cork lid
Measure the mouth's inside diameter. Punch a cork a little wider than it from thick, boiled cork bark with the cork borer, and taper its lower edge so it presses in.
Àwọn ohun èlò fún ìgbésẹ̀ yìí:
Pátákó èèpo koki0.1 kgÀwọn irinṣẹ́ tí a nílò:
Òṣùwọ̀n Kálípà Díjítà Ìnṣì 6
Ìlu koki
Ọ̀bẹ iṣẹ́Bébà ìpọ́n9
9
Troubleshooting
Troubleshooting
Jar blowing troubleshooting.
Flow
Loading...
Àwọn ohun-èlò
2- 1 kgÀyè
- 0.1 kgÀyè
Àwọn irinṣẹ́ tó nílò
14- Àyè
- Àyè
- Àyè
- Àyè
- Àyè
- Àyè
