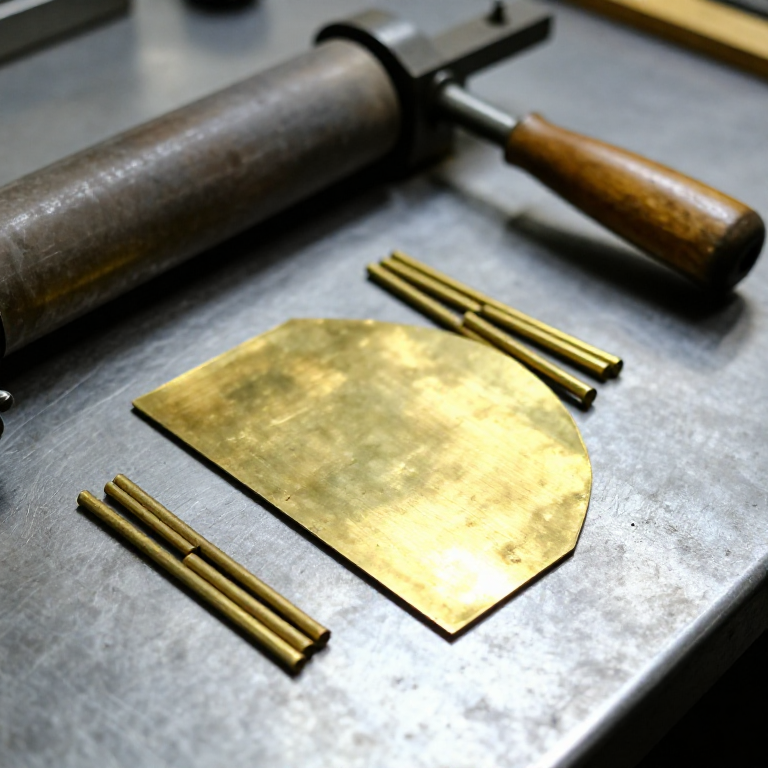

Brass Sheet, Strip and Rod from an Ingot

Brass from the alloying blueprint is cast into bars, then worked cold like copper: rolled or hammered for sheet and strip, drawn for rod. It work-hardens faster than copper, so it is annealed often, to a dull red, and can be quenched. Molten brass gives off white zinc-oxide smoke: melt it outdoors with the wind behind you.
Àárín
A day

Ìlànà

1

The brass

Making the brass ingot.
2

Cast bars

Outdoors, melt brass pieces in a crucible in the charcoal forge and pour them into a warmed, dry ingot mould: flat bars for sheet and strip, square bars for rod.

Àwọn ohun èlò fún ìgbésẹ̀ yìí:

Ìṣù idẹÌṣù idẹ1 kg
ÈédúÈédú5 kg

Àwọn irinṣẹ́ tí a nílò:

Ìléru alágbẹ̀dẹÌléru alágbẹ̀dẹ
Ìkòkò Amọ̀ Tí Ń Kojú InáÌkòkò Amọ̀ Tí Ń Kojú Iná
Ẹmú Ìkòkò Ìyọ́Ẹmú Ìkòkò Ìyọ́
Ìmọ̀ ìdà ìṣù irinÌmọ̀ ìdà ìṣù irin
Aṣọ Ìdílé AwọAṣọ Ìdílé Awọ
Ìbọ̀wọ́ wẹ́lídìnÌbọ̀wọ́ wẹ́lídìn
Gíláàsì ààbòGíláàsì ààbò
3

Anneal

Heat each bar on fire bricks to a dull red with the torch and quench it in water.

Àwọn ohun èlò fún ìgbésẹ̀ yìí:

OmiOmi10 lítà

Àwọn irinṣẹ́ tí a nílò:

Ọ̀pá Iná PùróféènìỌ̀pá Iná Pùróféènì
Bíríkì aládùúró-ináBíríkì aládùúró-iná
Ẹmú alágbẹ̀dẹẸmú alágbẹ̀dẹ
Àpótí ìtutùÀpótí ìtutù
4

Roll or hammer sheet and strip

Pass the flat bar through the rolling mill, closing it a little each pass, or hammer it on the anvil. Anneal whenever it stiffens. Cut strip from the sheet with snips.

Àwọn irinṣẹ́ tí a nílò:

Ẹ̀rọ ìtẹ̀ irinẸ̀rọ ìtẹ̀ irin
Ìdí Alágbẹ̀dẹÌdí Alágbẹ̀dẹ
Òòlù olórí ìtẹ̀ ìpakàÒòlù olórí ìtẹ̀ ìpakà
Ìlàǹkàn irinÌlàǹkàn irin
Òṣùwọ̀n Kálípà Díjítà Ìnṣì 6Òṣùwọ̀n Kálípà Díjítà Ìnṣì 6
5

Draw rod

Hammer the square bar round, taper the end, and draw it through the drawplate with draw tongs and wax, annealing every few holes.

Àwọn irinṣẹ́ tí a nílò:

Ìdí Alágbẹ̀dẹÌdí Alágbẹ̀dẹ
Òòlù olórí bọ́ọ̀lùÒòlù olórí bọ́ọ̀lù
Àwo ìfàokùn irinÀwo ìfàokùn irin
Ẹmú ìfàgùnẸmú ìfàgùn
Ìdìmú TábìlìÌdìmú Tábìlì
6

Clean

Soak in vinegar with salt to lift the oxide, scrub with the wire brush, rinse and dry.

Àwọn ohun èlò fún ìgbésẹ̀ yìí:

Ọtí kíkanỌtí kíkan0.5 lítà
Iyọ̀Iyọ̀10 g

Àwọn irinṣẹ́ tí a nílò:

Abọ́Abọ́
Ìṣètò búrọ́ọ̀ṣì okùnÌṣètò búrọ́ọ̀ṣì okùn
7

Troubleshooting

Brass working troubleshooting.
