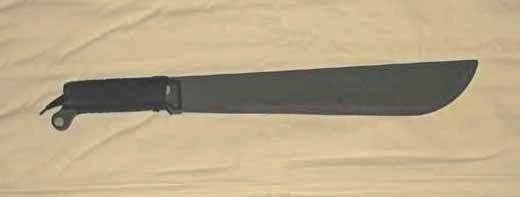

Machete to a Relief Specification

Machete blades are typically 30–66 cm long and under 3 mm thick. The Red Cross and Red Crescent emergency catalogue sets out what a sound one must be: a 55 cm machete with a 2.5 mm blade of hot-forged carbon steel, 0.6–0.65 % carbon and 0.6–0.8 % manganese, hardened and tempered to 45–50 Rockwell C near the edge, the whole blade hardened but the tang left normalised past the first rivet hole. The wooden handle is keyed into three grooves in the tang and held by three steel rivets with washers.
Ilọsíwájú
Factory process

Ìlànà

1

Forge the blade

Hot-forge the carbon steel to the blade shape, 2.5 mm thick, with three grooves along the tang for the handle.

Àwọn ohun èlò fún ìgbésẹ̀ yìí:

Ọ̀pá irin líle oníkábọ́ọ̀nù (0.6 % C)Ọ̀pá irin líle oníkábọ́ọ̀nù (0.6 % C)1 ẹyọ

Àwọn irinṣẹ́ tí a nílò:

Ìléru alágbẹ̀dẹÌléru alágbẹ̀dẹ

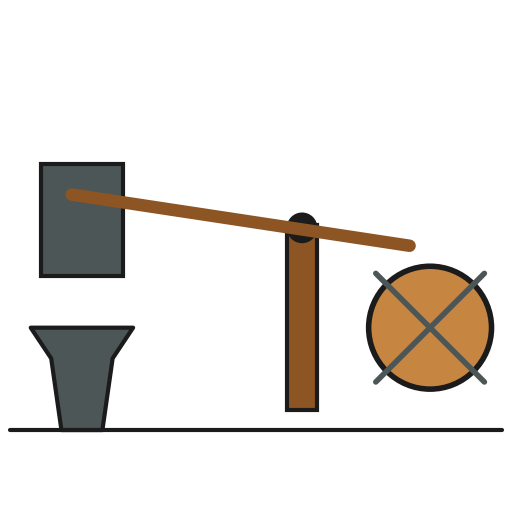

Òòlù tí a ń jù sílẹ̀Òòlù tí a ń jù sílẹ̀
2

Harden and temper

Harden and temper the whole blade to 45–50 HRC near the edge, leaving the tang normalised beyond the first rivet hole.

Àwọn irinṣẹ́ tí a nílò:

Ìléru alágbẹ̀dẹÌléru alágbẹ̀dẹ

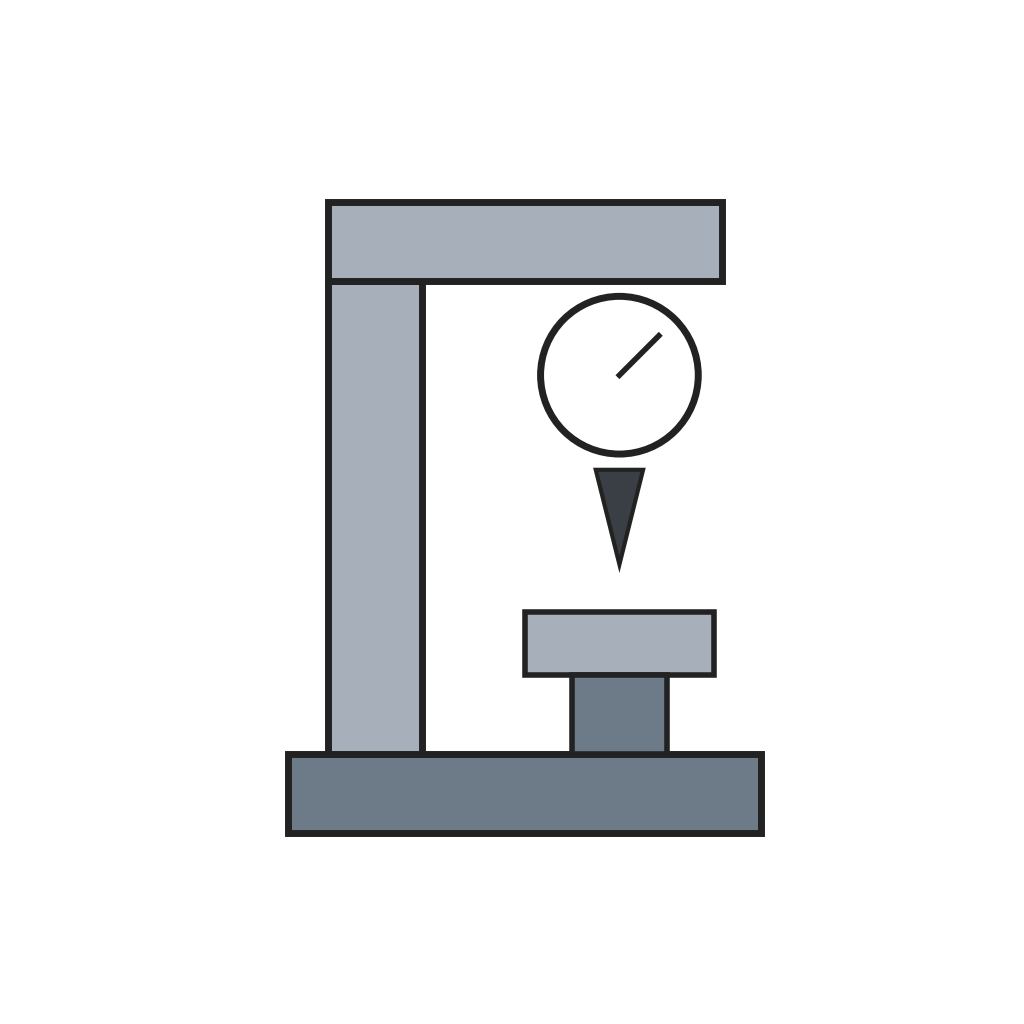

Ẹ̀rọ ìwọ̀n líle RockwellẸ̀rọ ìwọ̀n líle Rockwell
3

Fit the handle

Fit the wooden handle into the grooves and fix it with three steel rivets and washers.

Àwọn ohun èlò fún ìgbésẹ̀ yìí:

Igi Líle Fún ÌdìmúIgi Líle Fún Ìdìmú1 ẹyọ
Ìṣó irinÌṣó irin3 ẹyọ

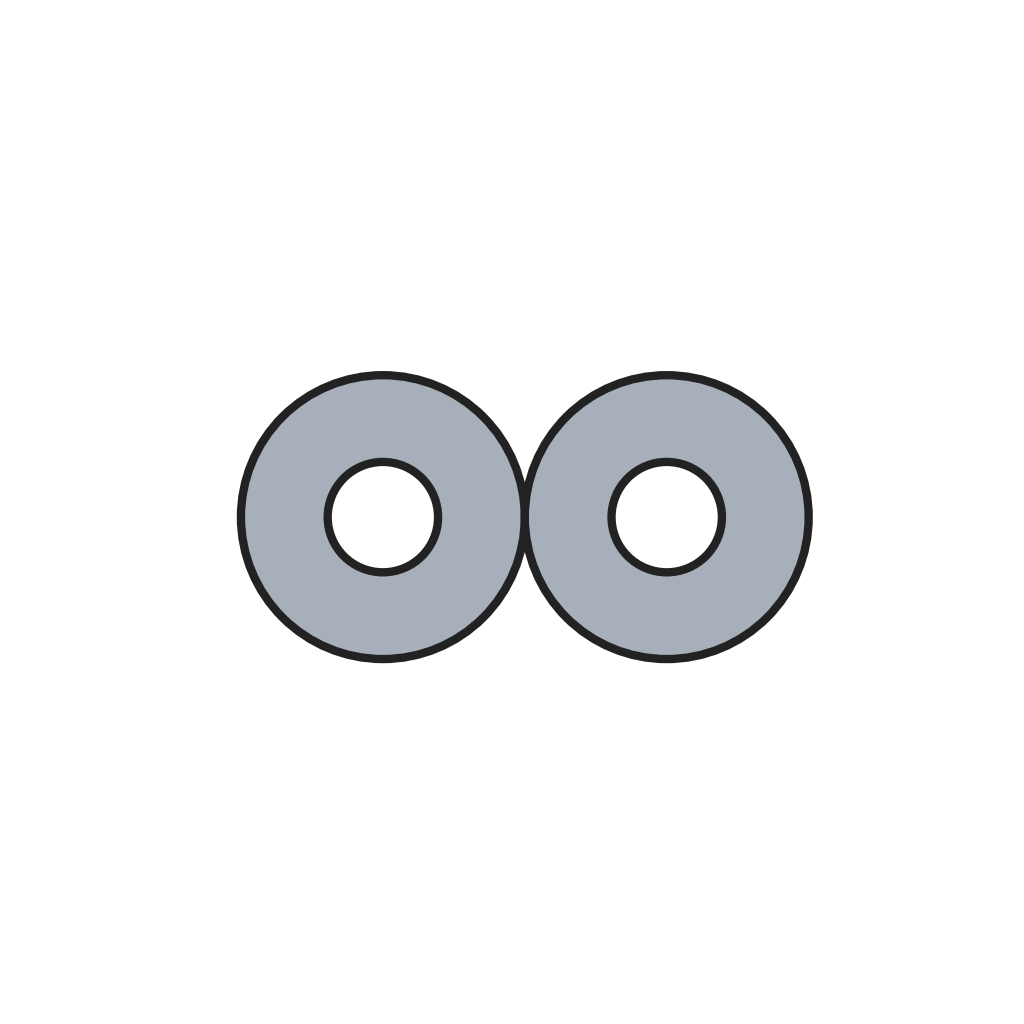

Wásà irin líleWásà irin líle3 ẹyọ
4

Check

Check the edge for dents and the hardness near the edge.

Àwọn irinṣẹ́ tí a nílò:

Ẹ̀rọ ìwọ̀n líle RockwellẸ̀rọ ìwọ̀n líle Rockwell

Àwọn ohun-èlò

4

Àwọn irinṣẹ́ tó nílò

3
