Building a Hot Blast Stove — Preheating the Air That Tripled the Blast Furnace

For centuries ironmasters believed a blast furnace ran best on cold winter air, and blew their furnaces with air at whatever temperature the weather gave. In 1828 the Scottish engineer James Neilson proved the opposite: heating the blast before it entered the furnace slashed the fuel needed and raised the output enormously. The hot blast was one of the great efficiency leaps of the iron age.

The idea seems backwards but the physics is sound. Cold air entering the furnace has to be heated by burning precious fuel before it can do its work; preheating the air outside the furnace, using waste heat that would otherwise escape up the chimney, means far less coke is wasted just warming the blast. Neilson's first stoves cut coke use by a third, and later regenerative stoves did far better still.

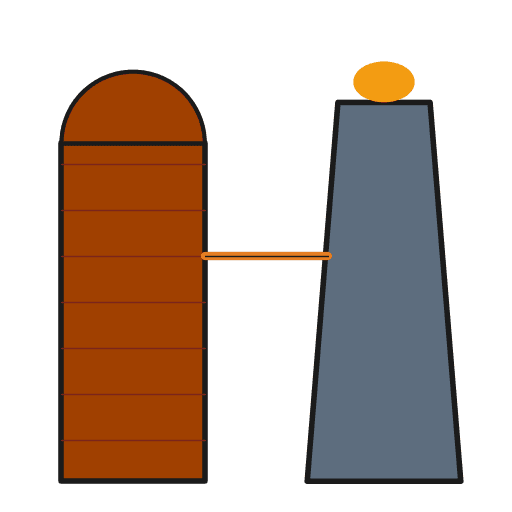

A hot blast stove is a chamber of brick or pipe that the blast passes through on its way to the tuyeres, heated by the furnace's own escaping gases. Bolted onto the pig-iron blast furnace, it made iron dramatically cheaper — and cheap iron was the lifeblood of the Industrial Revolution.

Ilọsíwájú
A major build alongside the furnace

Ìlànà

1

Understand the hot blast

A blast furnace must heat its incoming air before that air can burn fuel efficiently. The hot blast does that heating outside the furnace, using waste heat, so the furnace burns far less coke just warming cold air. Hotter blast means less fuel and more iron.
2

Tap the furnace waste gas

Capture the hot gases that pour, still burning, from the top of the blast furnace. These were once let escape as waste; the hot blast stove uses their heat to warm the incoming air, turning a loss into a saving.

Tools needed:

DuctworkDuctwork
3

Build the stove chamber

Build a large chamber of firebrick that the cold blast will pass through to be heated. Early stoves ran the air through iron pipes inside a heated oven; later regenerative stoves packed the chamber with a brick checkerwork that stored heat.

Materials for this step:

FirebrickFirebrick200 ẹyọ

Tools needed:

TrowelTrowel
4

Heat the stove

Burn the captured furnace gas inside the stove to bring its brickwork or pipes up to a high heat. The stove is heated by the furnace's own exhaust, so once running it costs almost no extra fuel to keep hot.

Materials for this step:

Metallurgical CokeMetallurgical Coke20 kg
5

Pass the blast through

Route the cold air from the blowing engine through the hot stove on its way to the furnace. As it travels through the heated pipes or brick checkerwork it picks up heat, leaving the stove far hotter than it entered.

Tools needed:

Air BlowerAir Blower
6

Alternate the regenerator stoves

In a regenerative system, build two or more stoves. Heat one with furnace gas while blowing the blast through another that is already hot, then switch them over. This way one stove is always heating up while another gives up its stored heat to the blast.
7

Insulate the hot main

Lag the pipe carrying the heated blast from the stove to the furnace so it does not lose its hard-won heat on the way. Every degree saved between stove and tuyere is fuel saved in the furnace.

Materials for this step:

Refractory CementRefractory Cement15 kg
8

Deliver the hot blast

Feed the heated air into the furnace tuyeres as before, but now hot. The furnace no longer wastes coke warming cold air, so it reaches working temperature on far less fuel and can smelt more ore for each tonne of coke.

Tools needed:

Tapping BarTapping Bar
9

Control the temperature

Manage the blast temperature carefully. Too cool wastes the advantage; too hot can damage the tuyeres and disturb the furnace chemistry. Operators learned a steady, high blast temperature gave the best, most even iron.

Tools needed:

PyrometerPyrometer
10

Measure the saving

Compare coke use before and after. Neilson's first hot blast cut coke consumption by about a third at a stroke, and let furnaces use raw coal and poorer ores that cold blast could not smelt. The fuel saving was immediate and dramatic.
11

Mind the hazards

Work safely around it: the stove handles furnace gas rich in poisonous carbon monoxide, the blast main carries air hot enough to burn, and leaks can ignite. Keep joints tight, the area ventilated, and never work on a live hot main.
12

See the impact

Bolted onto the blast furnace, the hot blast stove cut the cost of pig iron sharply and opened up coalfields whose fuel cold blast could not use. Cheaper iron meant more rails, machines, and ships — the hot blast quietly powered the whole expansion of the iron age.
