Spun Stainless Steel Bowl on a Lathe
Forge

Ṣẹ́dá nipasẹ̀

Forge

11. Oṣù Kẹwà 2026NO
1
0
0
0
0

Spun Stainless Steel Bowl on a Lathe

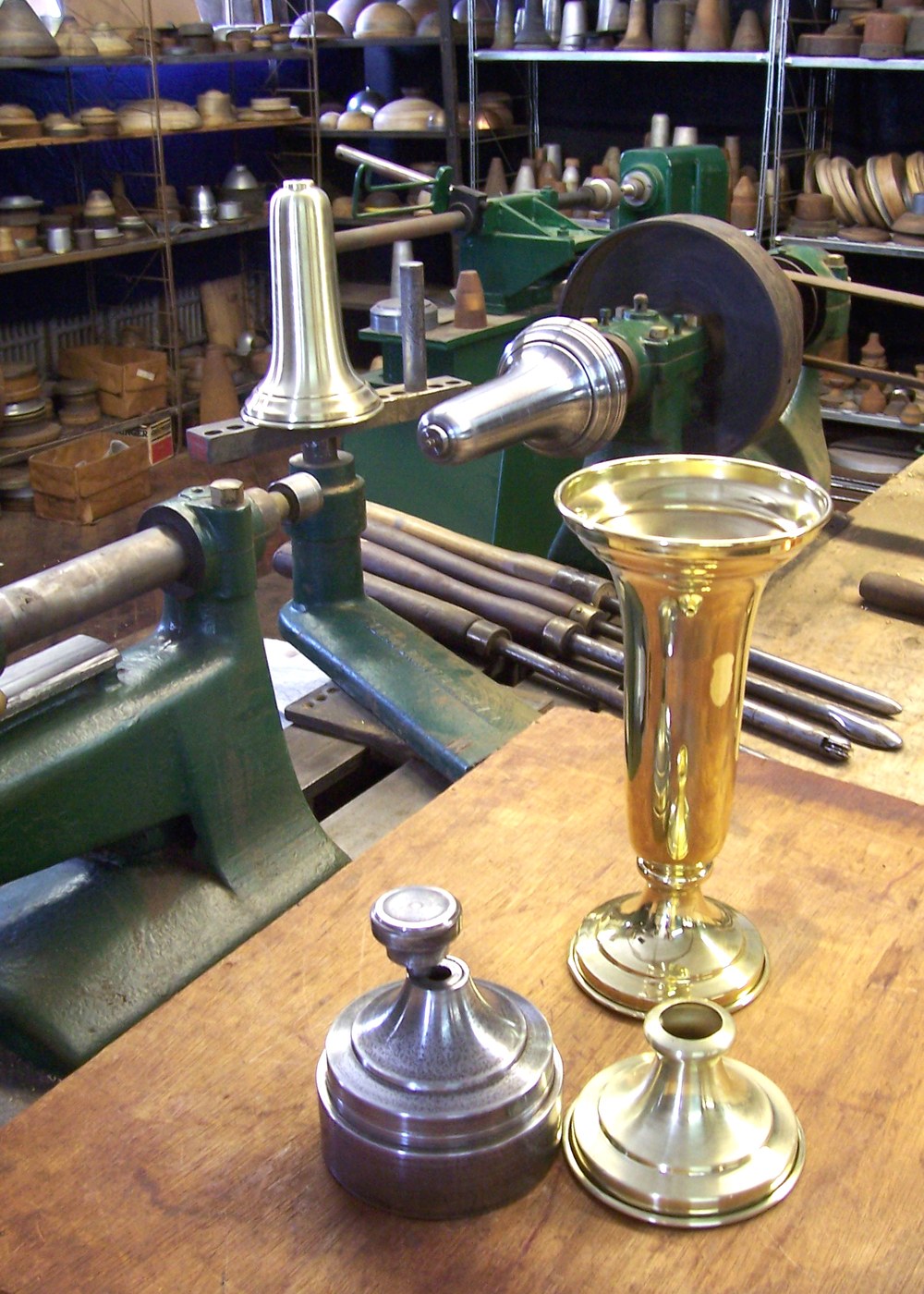

Metal spinning forms a flat disc into a round, seamless shape without removing metal. A form block the shape of the inside of the bowl is mounted on the lathe, the disc is clamped against it by a pad on the tailstock, and as both spin at speed a levered tool or roller pushes the metal down over the block. Because the bowl ends up smaller across than the disc, the metal must thicken, stretch or wrinkle as it is pushed down. For stainless steel the tool is solid brass. The same method makes cookware, lighting, gas cylinders and brass instrument bells.
Ilọsíwájú
1–2 hours

Ìlànà

1

Cut the disc

Cut a round disc from 304 stainless sheet, larger than the finished bowl.

Àwọn ohun èlò fún ìgbésẹ̀ yìí:

Àwo irin tí kò ń yá - 304Àwo irin tí kò ń yá - 3041 ẹyọ
2

Mount block and disc

Fit the form block to the lathe headstock and clamp the centred disc against it with the tailstock pad.

Àwọn irinṣẹ́ tí a nílò:

Ẹ̀rọ Ìyí IrinẸ̀rọ Ìyí Irin
Àwòṣe ìyíṣe irinÀwòṣe ìyíṣe irin
3

Spin

With the lathe at speed, lever the spinning tool against the disc and force the metal to flow down over the block.

Àwọn irinṣẹ́ tí a nílò:

Ẹ̀rọ Ìyí IrinẸ̀rọ Ìyí Irin
Irinṣẹ́ ìyíṣe irinIrinṣẹ́ ìyíṣe irin
4

Trim the rim

Cut the uneven rim off square while the bowl still turns on the block.

Àwọn irinṣẹ́ tí a nílò:

Ohun ìgé ẹ̀rọ ìyíOhun ìgé ẹ̀rọ ìyí
5

Remove and check

Take the bowl off the block and check the rim diameter and that it sits flat.

Àwọn irinṣẹ́ tí a nílò:

Òṣùwọ̀n Kálípà Díjítà Ìnṣì 6Òṣùwọ̀n Kálípà Díjítà Ìnṣì 6

Àwọn ohun-èlò

1

Àwọn irinṣẹ́ tó nílò

5
