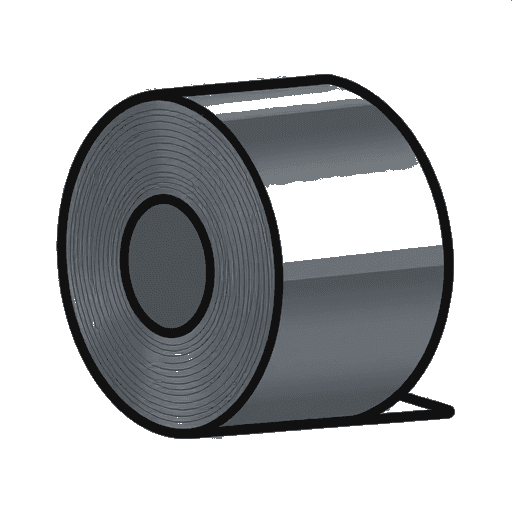

Steel Rolling: Plate, Sheet and Coil
Mills turn steel slabs into plate, sheet and coil by rolling: the hot slab is squeezed between rolls, thinner each pass; plate is cut off thick, strip is rolled on down and wound into a coil. Coils are then cleaned of scale and cold-rolled thinner and smoother, annealed soft again, and wound back into coils for stamping presses and fabricators. Over about 6 mm is plate, under is sheet. The hand-hammered plate blueprint does the same job by hand at a tiny scale.
Ilọsíwájú
Hours per coil (industrial)
Ìlànà
1
1
Cast slabs
Cast slabs
Steel from the converter is cast into thick slabs.
Àwọn ohun èlò fún ìgbésẹ̀ yìí:
Ìdì irin líle1000 kg2
2
Hot roll
Hot roll
Each slab is reheated and passed through the hot mill's stands; thick product is cut off as plate.
Àwọn irinṣẹ́ tí a nílò:
Ẹ̀rọ ìtẹ̀ irin3
3
Coil the strip
Coil the strip
Thinner strip runs on through the finishing stands and is wound into a hot-rolled coil.
Àwọn irinṣẹ́ tí a nílò:
Ẹ̀rọ ìtẹ̀ irin4
4
Clean and cold roll
Clean and cold roll
The coil is uncoiled, cleaned of scale, cold-rolled thinner and smoother, and recoiled.
Àwọn irinṣẹ́ tí a nílò:
Ẹ̀rọ ìtẹ̀ irin5
5
Anneal and measure
Anneal and measure
Cold-rolled coil is annealed soft, its thickness measured, and sold as coil or cut into sheets.
Àwọn irinṣẹ́ tí a nílò:
Ààrò ìrọ̀ irin
Òṣùwọ̀n Kálípà Díjítà Ìnṣì 6Àwọn ohun-èlò
1- 1000 kgÀyè
Àwọn irinṣẹ́ tó nílò
3Ìtọ́nisọ́nà yìí ń ṣe
