Worm-Drive Hose Clamp: North & Burke, 1945

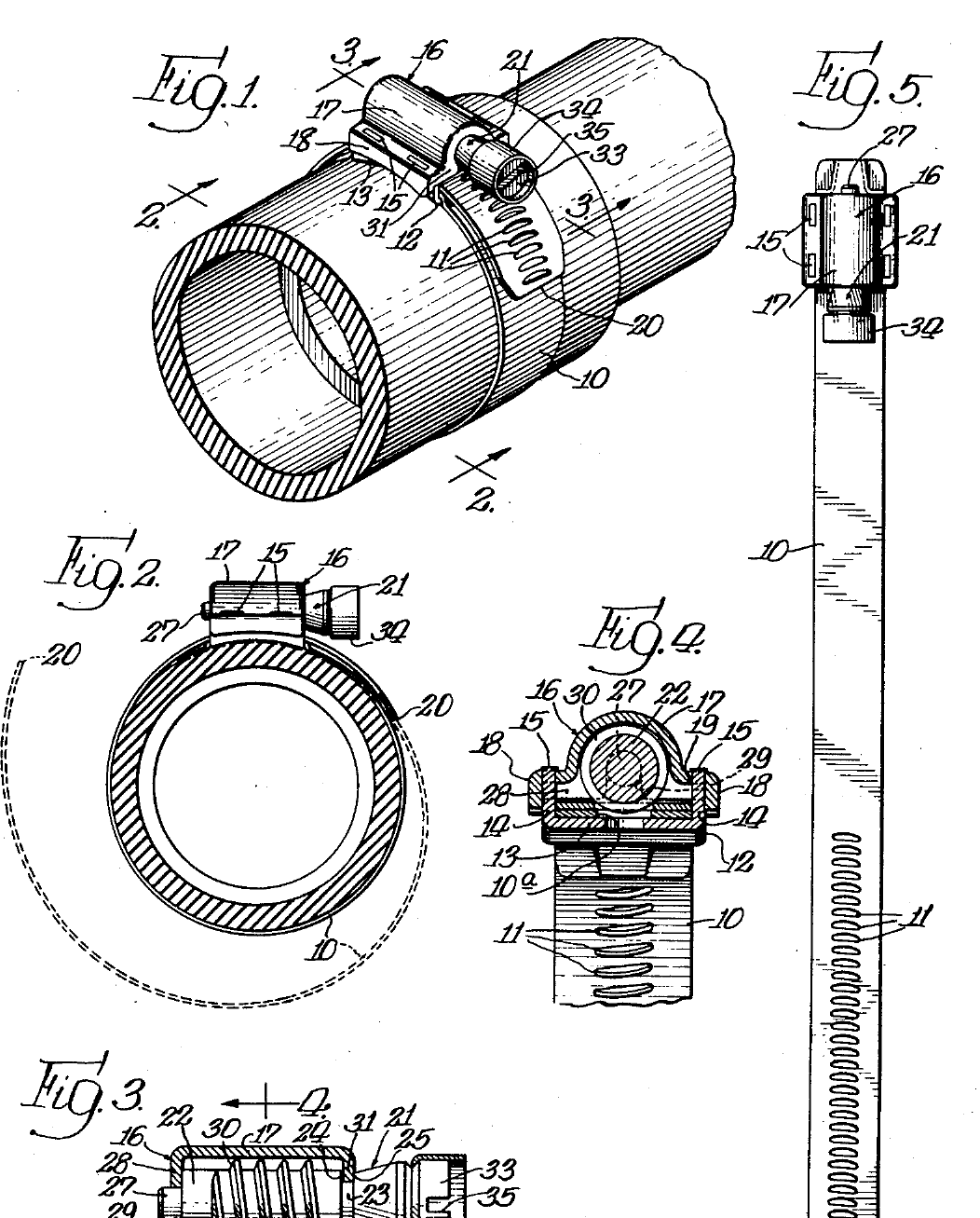

Edwin W. North and William O. Burke of the National Lock Company, Rockford, Illinois, patented this hose clamp in 1945, US 2,386,629, for hoses carrying compressed air, gasoline and other fluids in aircraft. A band of resilient spring steel is pierced with a row of slanted slots, which a stamping operation can make, set at the angle of the screw thread. A U-shaped saddle is spot welded near one end of the band, and a housing riveted to it holds a screw whose thread runs through the slots. Turning the screw draws the band tight. One clamp fits a wide range of hose sizes.
Àárín
Factory process
Ìlànà
1
1
Slot the band
Slot the band
Stamp a row of transverse slots along the spring steel band, inclined to match the spiral thread of the screw.
Àwọn ohun èlò fún ìgbésẹ̀ yìí:
Ọ̀pá irin orísun1 as requiredÀwọn irinṣẹ́ tí a nílò:
Ẹ̀rọ ìtẹ̀ àwo irin2
2
Saddle
Saddle

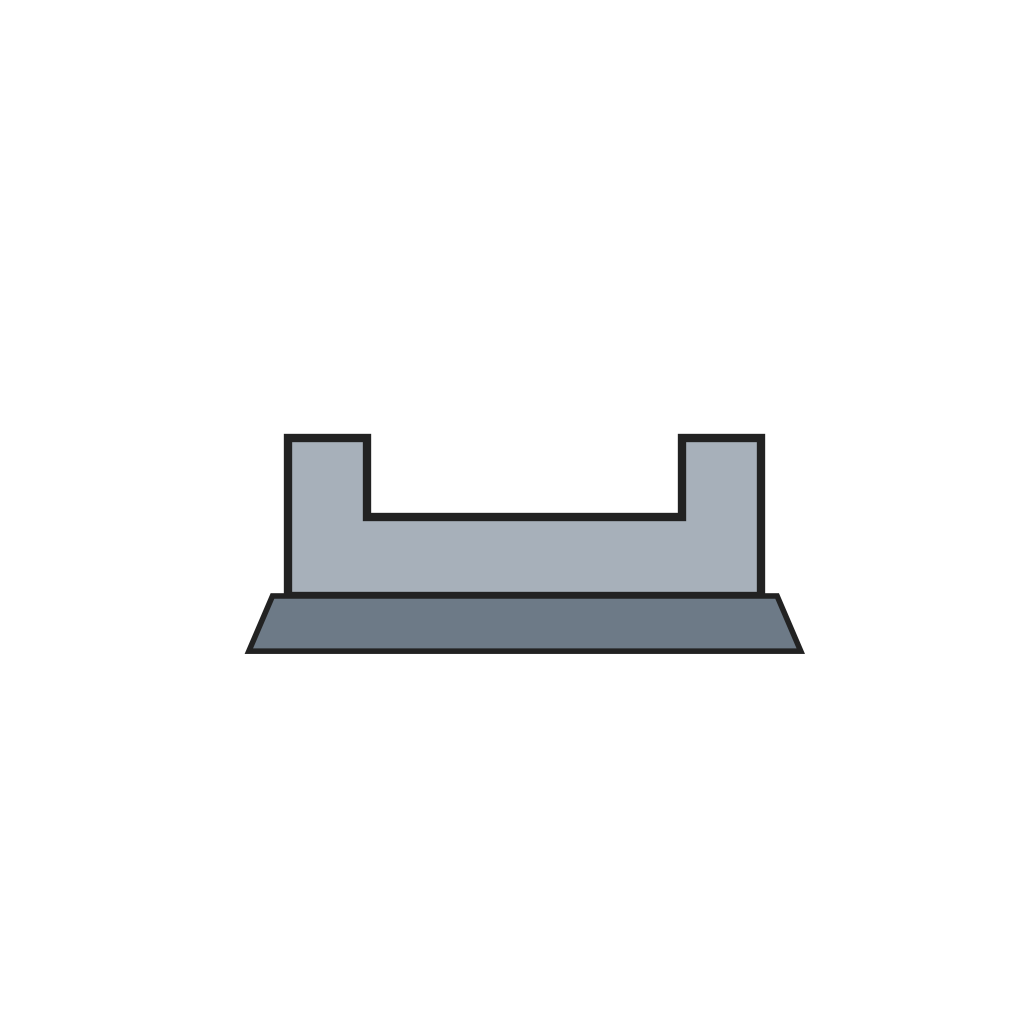

Spot weld the U-shaped saddle, its base curved along the band, near the band's inner end. The band is set up by the base's thickness so the base's curved inner surface continues the band's.
Àwọn ohun èlò fún ìgbésẹ̀ yìí:
Gàárì ìdè hose1 ẹyọÀwọn irinṣẹ́ tí a nílò:
Ẹ̀rọ Ìtanná Àmì3
3
Screw and housing
Screw and housing

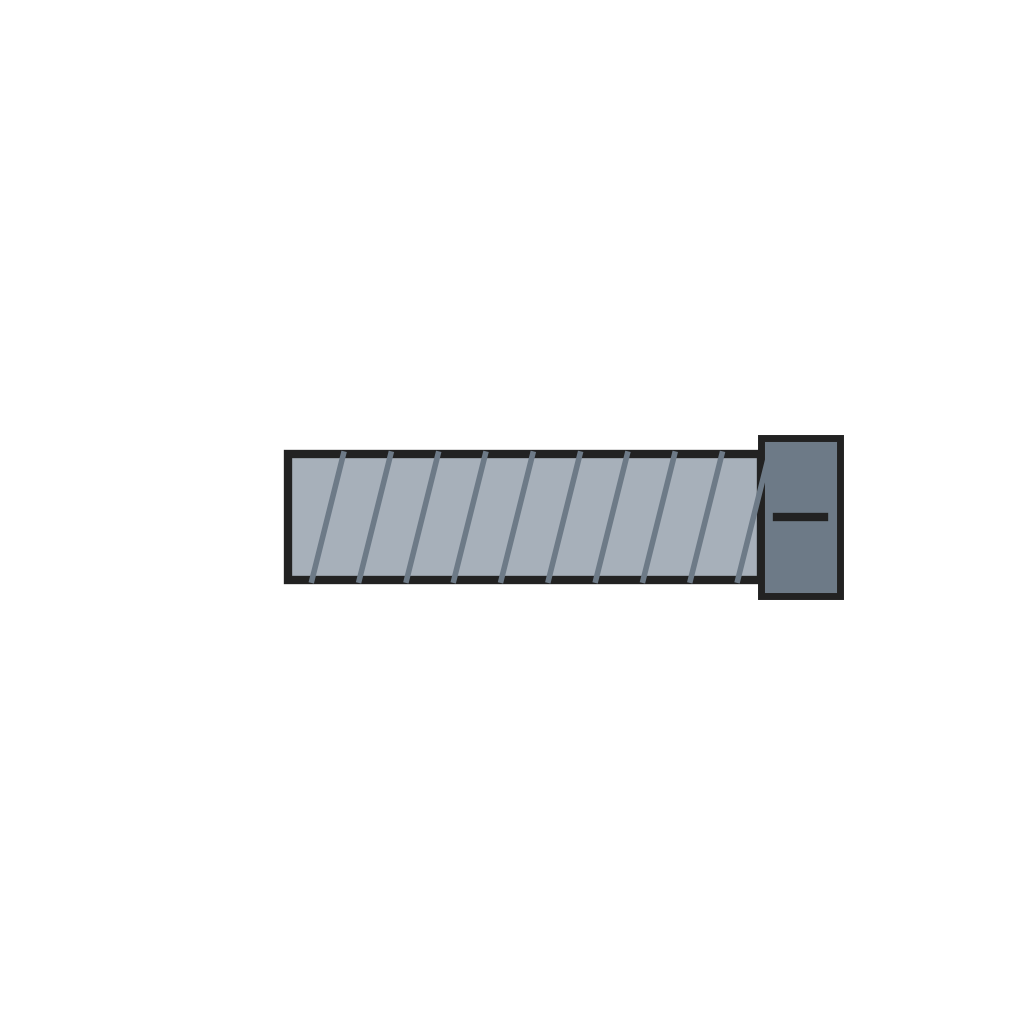

Lay the screw, with its continuous spiral thread, in the saddle with its reduced ends in the slots of the housing's end walls. Fit the housing over it: the prongs on the saddle's side walls pass through openings in the housing's flanges and are riveted over to fix them together.
Àwọn ohun èlò fún ìgbésẹ̀ yìí:
Ìṣó-ìdin ìdè hose1 ẹyọ
Àpótí ìṣó-àyídà ìdè hose1 ẹyọ4
4
Fit
Fit
Pass the band's free end round the hose and under the screw: the thread engages the slots, and turning the screw draws the band tight.
Àwọn ohun-èlò
4- 1 as requiredÀyè
