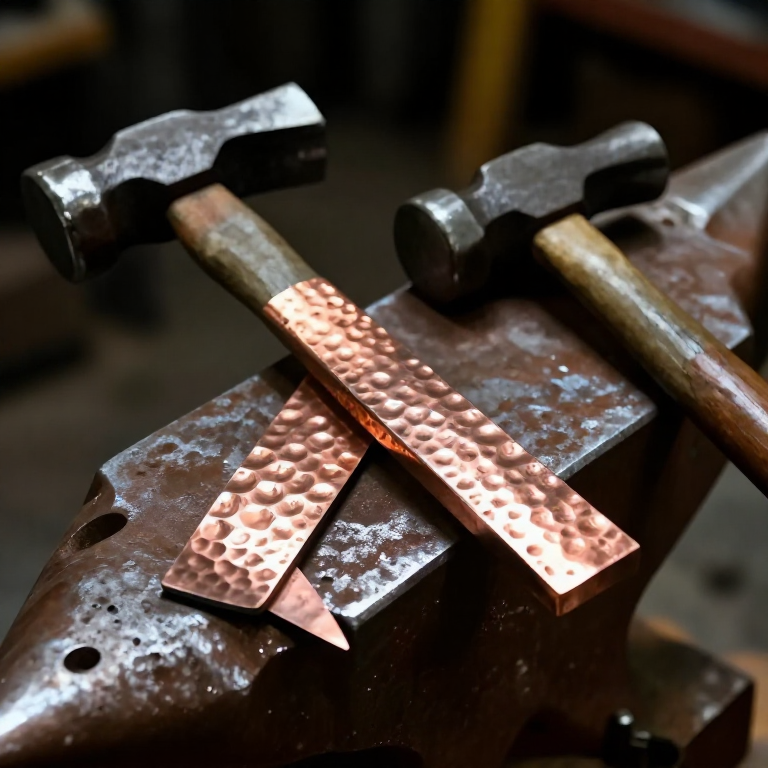

Copper Sheet Forged from Cast Copper

Copper is soft and can be hammered thin cold, but every blow hardens it until it cracks. Heating it to a dull red anneals it soft again; unlike steel, copper can be quenched straight away without hardening. Hammer, anneal, repeat: that is how sheet was made before rolling mills. It starts from a cast piece of smelted copper. A rolling mill does the same job faster; the hammer needs nothing but an anvil.
मध्यम
Half a day

निर्देशनहरू

1

Anneal the casting

Set the copper on fire bricks and heat it with the torch to a dull red, seen in shade. Pick it up with tongs and quench it in water.

यस चरणका सामग्री:

तामातामा200 ग्राम
पानीपानी10 लिटर

चाहिने औजार:

प्रोपेन टर्चप्रोपेन टर्च
आगो सहने इँटाआगो सहने इँटा
आरनको सँड़सीआरनको सँड़सी
पानी दिने बाल्टिनपानी दिने बाल्टिन
सुरक्षा चस्मासुरक्षा चस्मा
2

Spread it

On the anvil, strike overlapping blows with the cross peen in one direction, then the other, to spread the copper. Turn it over often.

चाहिने औजार:

निहुँनिहुँ
तेर्सो फन्को भएको हथौडातेर्सो फन्को भएको हथौडा
छालाका काम गर्ने पन्जाछालाका काम गर्ने पन्जा
3

Anneal when it stiffens

When the copper rings and stops moving under the hammer, anneal it again as in step 1. Expect to anneal many times.

चाहिने औजार:

प्रोपेन टर्चप्रोपेन टर्च
आरनको सँड़सीआरनको सँड़सी
पानी दिने बाल्टिनपानी दिने बाल्टिन
4

Clean the scale

Soak it in a bowl of vinegar with a spoon of salt until the black scale loosens, then scrub it bright with the wire brush and rinse.

यस चरणका सामग्री:

सिर्कासिर्का0.5 लिटर
नुननुन10 ग्राम

चाहिने औजार:

कचौराकचौरा
तार ब्रसको सेटतार ब्रसको सेट
5

Planish flat

Planish the sheet smooth with light, overlapping blows of the ball peen's flat face, checking the thickness with the caliper.

चाहिने औजार:

गोलो टुप्पो भएको हथौडागोलो टुप्पो भएको हथौडा
निहुँनिहुँ
डिजिटल क्यालिपर ६ इन्चडिजिटल क्यालिपर ६ इन्च
6

Trim

Anneal a last time if it must be bent later. Trim the cracked edges with snips and file them.

चाहिने औजार:

पाता काट्ने कैँचीपाता काट्ने कैँची
रेतीहरूको सेटरेतीहरूको सेट
7

Troubleshooting

Forging copper troubleshooting.
