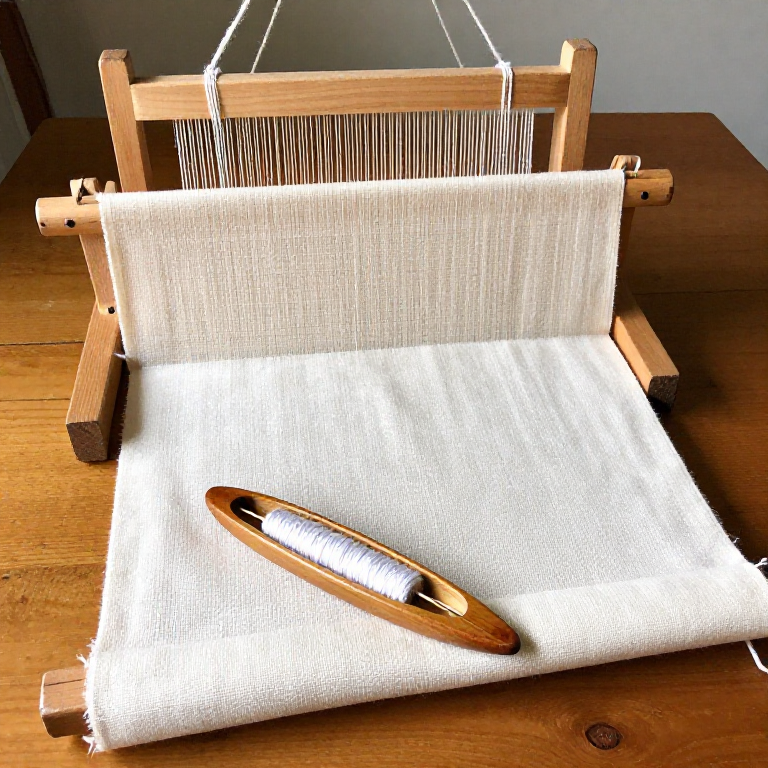

Plain-Weave Cotton Cloth on a Rigid Heddle Loom
Plain weave is the simplest cloth: each crosswise thread goes over one lengthwise thread and under the next, and back the other way on the next pass. A rigid heddle loom does the lifting: one bar of slots and holes raises or lowers every other warp thread at once.
The thread is the 2-ply cotton from the hand-spinning blueprint, used for both warp and weft.
मध्यम
About a week of evenings
निर्देशनहरू
1
1
The thread
The thread
Spinning and plying the cotton thread used here.
2
2
Find the sett
Find the sett
Wrap the thread round a ruler, touching but not crowded, and count the wraps in 2.5 cm. For plain weave set the warp at about half that many threads per 2.5 cm, and choose the heddle to match.
चाहिने औजार:
रुलर3
3
Measure the warp
Measure the warp
On the warping board wind as many threads as the width times the sett, each the cloth's length plus about 50 cm for tying on and loom waste.
यस चरणका सामग्री:
सुतीको धागो150 ग्रामचाहिने औजार:
तान बेर्ने फल्याक
नाप्ने फित्ता4
4
Thread the heddle
Thread the heddle
Thread one warp end through each slot and each hole in turn, tie the ends to the back beam, wind on under even tension and tie on at the front.
चाहिने औजार:
कडा काइयो भएको तान5
5
Weave
Weave
Raise the heddle, pass the shuttle through, beat the weft gently with the heddle; lower the heddle, pass back, beat. Leave the weft at a slant across the shed so the edges do not pull in.
यस चरणका सामग्री:
सुतीको धागो120 ग्रामचाहिने औजार:
कडा काइयो भएको तान
डोरी हाल्ने ढर्को6
6
Cut off and secure
Cut off and secure
Cut the cloth off the loom and knot or hem both ends so the weft cannot slip off.
चाहिने औजार:
कपडा काट्ने कैँची7
7
Wash to finish
Wash to finish
Wash the cloth in hot water, dry it, and measure it: the threads relax and close up. Note how much it shrank for the next warp.
चाहिने औजार:
नाप्ने फित्ता8
8
Troubleshooting
Troubleshooting
Plain weave troubleshooting.
