Caterpillar Traction Engine

Holt claims a traction engine carried on "endless traveling platform supports" — sprockets, a chain of shoes, and bearing wheels riding on it. Note the goal: propel over soft ground.

Press a loaded wheel into a tray of flour or fine sand. It sinks in. Measure how deep. This is Holt's engines in the delta peat.

Ink the wheel and roll it on paper. The mark is its ground contact area — small. Weight divided by that area is the pressure on the soil.

Divide the load by the contact area. High pressure on soft ground = sinking. Write the number down; you are going to beat it.

Cut a set of flat shoes and hinge them into an endless chain that can bend around two ends. Each shoe is a piece of ground contact.

Fit the chain around two toothed wheels (sprockets) so a driven sprocket walks the belt around. The bottom run lies flat on the ground; the machine rides on it.

Rest the loaded frame on small wheels that roll along the top of the flat bottom run — Holt's "bearing-wheels on rollers." The weight spreads along the whole length of belt on the ground.

Ink the bottom run and print it. The contact area is many times the wheel's (step 3). Same weight, far bigger footprint.

Divide the same load by the bigger area. The pressure has dropped sharply — compare with step 4. That drop is the whole invention in one number.

Press the loaded track into the same flour or sand. It rides on top where the wheel sank. Measure the sink depth against step 2.

Try to drive the wheel and the track up a loose slope. The wheel spins and digs in; the track grips along its whole length and climbs. More contact means more traction, not just less sinking.

Drive slowly and watch the belt: shoes lay down flat in front and lift away behind, so the machine always rolls on firm track, never on the soft ground directly. It carries its road with it.

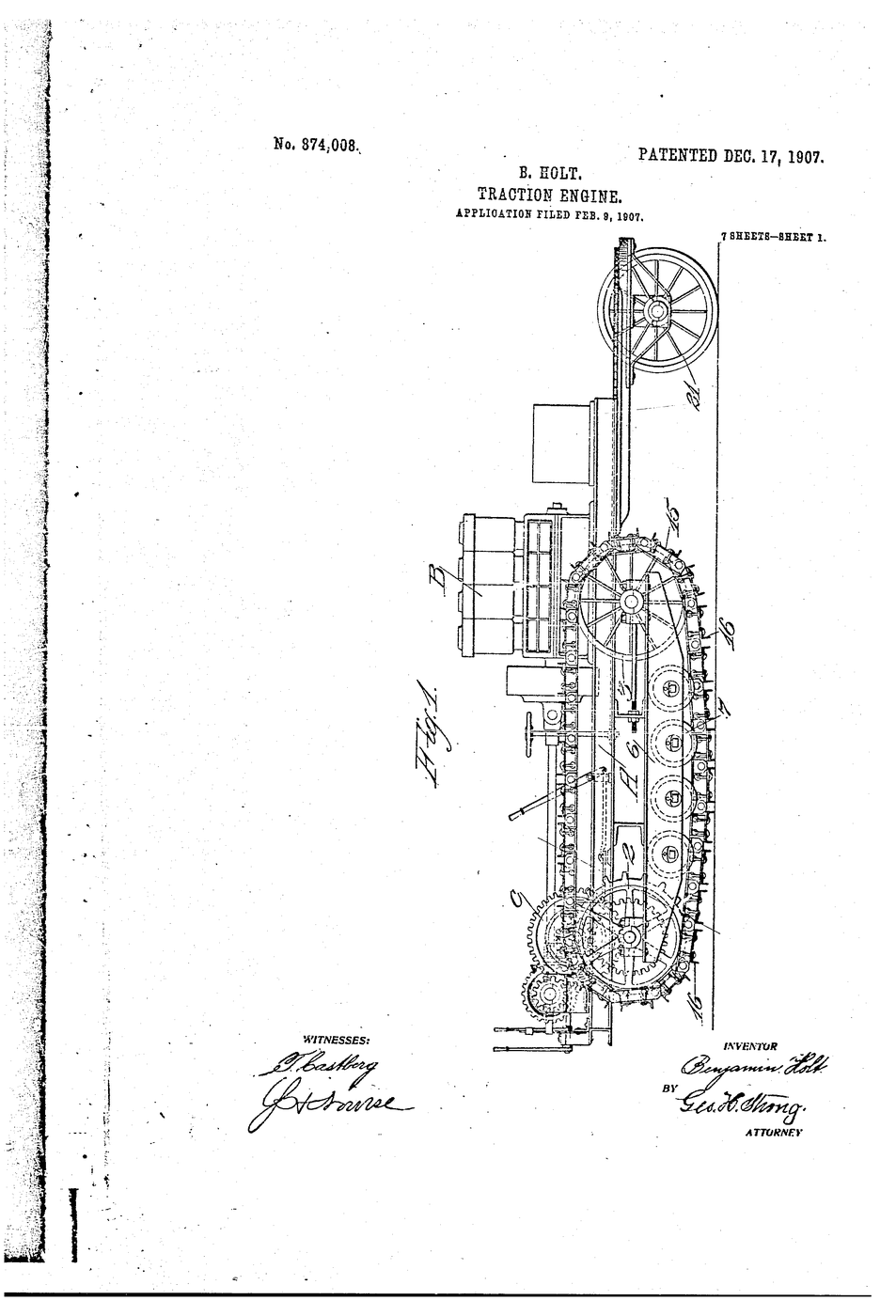

The patent. US 874,008, "Traction-Engine", granted 17 December 1907 to Benjamin Holt of Stockton, San Joaquin County, California. The specification describes the whole crawler in engineering terms — sprocket wheels, a chain of shoes with connecting bolts and side plates, bearing wheels running on rollers — and states the object plainly: to let the engine "most efficiently propel it over the surface upon which it travels."

The problem was specific and local, which is why the solution is so clear. Holt built heavy steam traction engines, and the ground they most needed to work — the reclaimed peat delta around Stockton — was so soft that ordinary drive wheels sank and buried the machine. The physics is exactly steps 2 to 4: a wheel presses the machine's weight through a small contact patch, and pressure is force divided by area, so a small patch means high pressure and, on soft ground, sinking. The endless track attacks the area term directly: it spreads the same weight along a long flat belt (steps 5 to 9), dropping the ground pressure by a large factor, so ground that swallowed a wheel now holds the machine up (step 10). As a bonus, more contact also means more grip, so it climbs and pulls where a wheel just spins (step 11). Holt first tested a track-laying machine around 1904 and patented refinements through the decade.

The name, and a fair word about rivals. The "Caterpillar" name comes from the way it moves — the shoes crawling flat in front and lifting behind (step 12) — reportedly after an observer remarked it looked like a caterpillar, and Holt trademarked it. It is worth being honest that Holt was not the sole inventor of the track: crawler and "endless railway" ideas go back to the early nineteenth century, and Holt had a direct competitor in C. L. Best, whose company built rival crawlers; the two firms fought and eventually merged in 1925 to form the Caterpillar Tractor Company. Naming that history is more honest than the single-genius version.

Where it went. The crawler track transformed anything that had to move heavy loads over ground that would not bear a wheel: it mechanised farming on soft and hilly land, then became the running gear of bulldozers and excavators that built the modern world's roads and dams, and — fatefully — of the military tank in the First World War, which took Holt's agricultural track straight onto the battlefield. Every excavator, dozer and tank you see today is riding on the same idea you measured in step 9: spread the weight over enough track, and the softest ground will carry the heaviest machine.
