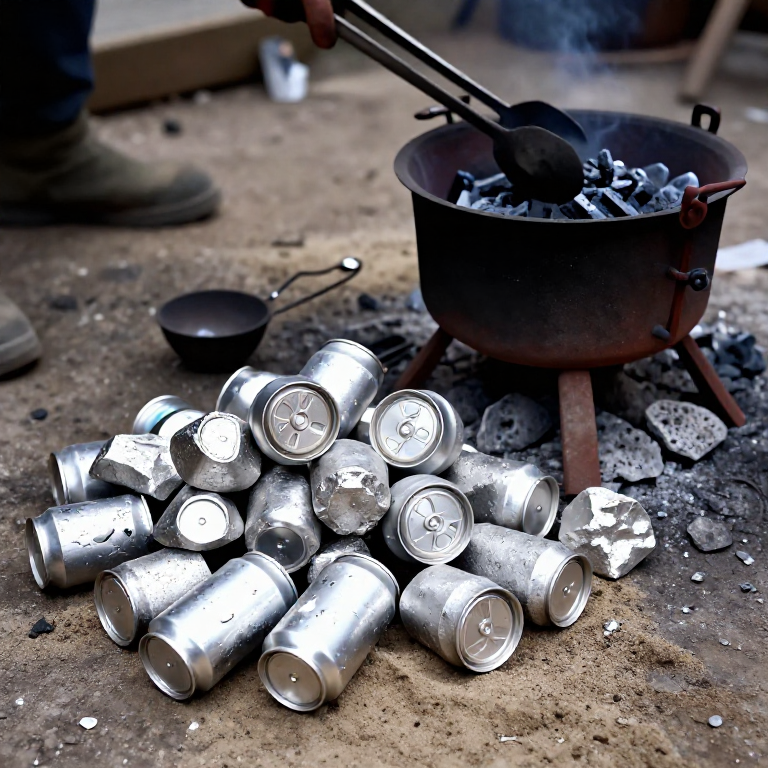

Aluminium Ingots from Scrap Cans
Aluminium melts at about 660 °C, within reach of a charcoal furnace with forced air. Drink cans are mostly aluminium alloy with a thin plastic coating and paint; melted down, the coating burns off and the oxide and dirt float to the top as dross, which is skimmed before the clean metal is poured into a mould. Cans are thin and oxidise a lot, so the yield is well below the cans' weight: weigh both and see.
Water meeting molten aluminium turns to steam instantly and throws metal: every can, tool and mould must be dry.
Intermediate
Half a day
Instructions
1
1
Prepare the cans
Prepare the cans
Empty, rinse and fully dry the cans, then crush them flat. Weigh them.
Materials for this step:
Aluminium Drink Cans (Empty)3 kgTools needed:
Weighing Scale2
2
Melt
Melt
Heat the crucible in the charcoal furnace with forced air until red, then feed in crushed cans a few at a time, pushing each under the melt.
Materials for this step:
Charcoal - Lump15 kgTools needed:
Charcoal Furnace
Clay Crucible - Refractory
Crucible Tongs
Leather Apron
Welding Gloves
Safety Glasses
Steel-Toe Safety Boots3
3
Skim the dross
Skim the dross
When all is melted, skim the grey dross off the top with a dry, preheated ladle.
Tools needed:
Skimming Ladle4
4
Pour
Pour
Over a bed of dry sand, lift the crucible with the tongs and pour into a preheated, dry ingot mould in one steady stream.
Materials for this step:
Sand20 kgTools needed:
Crucible Tongs
Ingot Mould5
5
Weigh the yield
Weigh the yield
When cold, knock the ingots out and weigh them against the cans.
Tools needed:
Weighing Scale6
6
Troubleshooting
Troubleshooting
Can melting troubleshooting.
