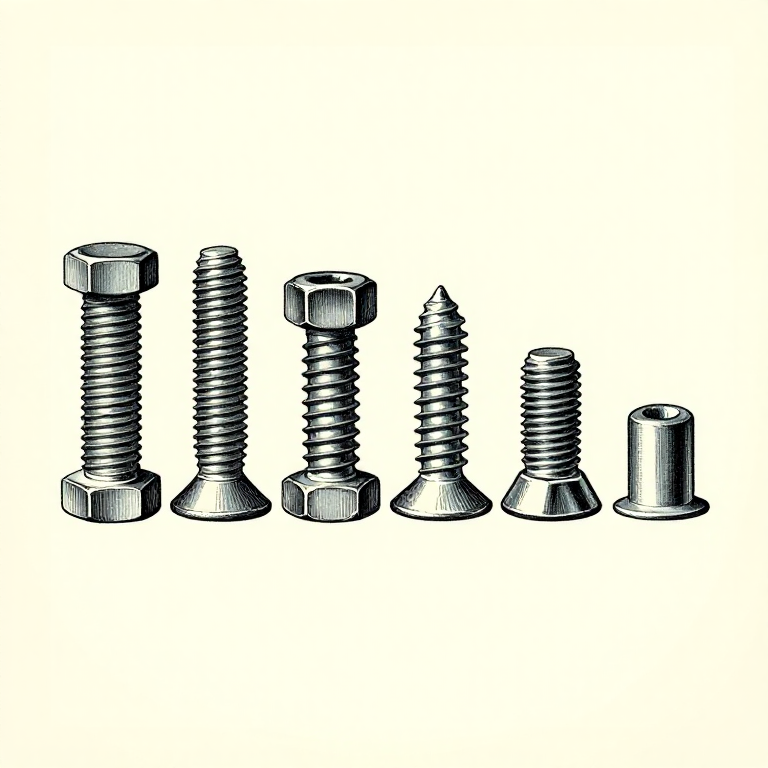

Choosing the Fastener: Screw, Bolt, Stud, Rivet

A BOLT passes through both parts and takes a NUT on the far side. A machine SCREW threads into a tapped hole in the far part, with no nut. A SETSCREW (or fully-threaded bolt) is threaded along its whole length; a bolt proper has a plain shank under the head. That plain shank matters. It is stronger in shear than a thread, and it gives the top part a smooth surface to be located by. For a joint carrying sideways load, the shank should pass through the clearance hole and the thread should start beyond it. A STUD is threaded at both ends and screwed permanently into the lower part. It exists so that repeated assembly wears the NUT rather than the tapped hole — the reason engine blocks and other repeatedly-opened joints use them.

A joint in TENSION pulls the fastener along its length — a lid bolted onto a pressure vessel. A joint in SHEAR tries to slide the parts across each other — a bracket bolted to a wall carrying a load below it. Most bolted joints are designed to work by FRICTION, not by the bolt taking shear directly: the bolt clamps the parts hard enough that friction between them carries the sideways load, and the bolt itself is loaded only in tension. This is why a properly tightened joint is far stronger than a loose one with the same bolt. Where the bolt really must take shear, its plain shank should be in the joint line and it should be a close fit in the hole. A thread sitting in the shear plane concentrates the load in the thread roots and is where fatigue failures start.

A rivet is a permanent fastener formed in place: a soft pin put through both parts and then upset — hammered or squeezed — so it swells to fill the hole and forms a second head. It has real advantages over a bolt. It cannot vibrate loose, it is lighter, it fills its hole completely so it takes shear properly, and it costs a fraction as much. The Viking riveted cauldron, chain mail and Roman scale armour published here all depend on exactly this. The cost is that removing one means drilling it out. So a rivet is right wherever the joint is genuinely permanent and wrong wherever access will ever be needed — and 'we will never need to open this' is a claim worth testing before committing to it.

HEX heads take the most torque and need side clearance for a spanner. Socket cap heads take nearly as much in a much smaller space and need only access from above. Countersunk heads sit flush. Pan and button heads sit on the surface and suit thin material. For the drive: hex socket and Torx transmit far more torque than a slot or a Phillips and are much harder to damage. A Phillips head is designed to cam out under load, which was useful with early power tools and is a nuisance now. Use slotted screws only where appearance demands it. Match the material to the environment. Stainless will not rust but galls badly against itself when tightened — use a lubricant or anti-seize. Plain steel is stronger and cheaper but must be protected. Never put a steel fastener into aluminium outdoors without isolating it: the two corrode each other galvanically and the aluminium loses.
