Krataai Khut Maphrao (Coconut-Grater "Rabbit") — a Wooden Seat with a Toothed Iron Blade That Shreds Coconut Fine
Translated
SomchaiSang

Created by

SomchaiSang

7. October 2026TH
2
0
0
0
0

Krataai Khut Maphrao (Coconut-Grater "Rabbit") — a Wooden Seat with a Toothed Iron Blade That Shreds Coconut Fine

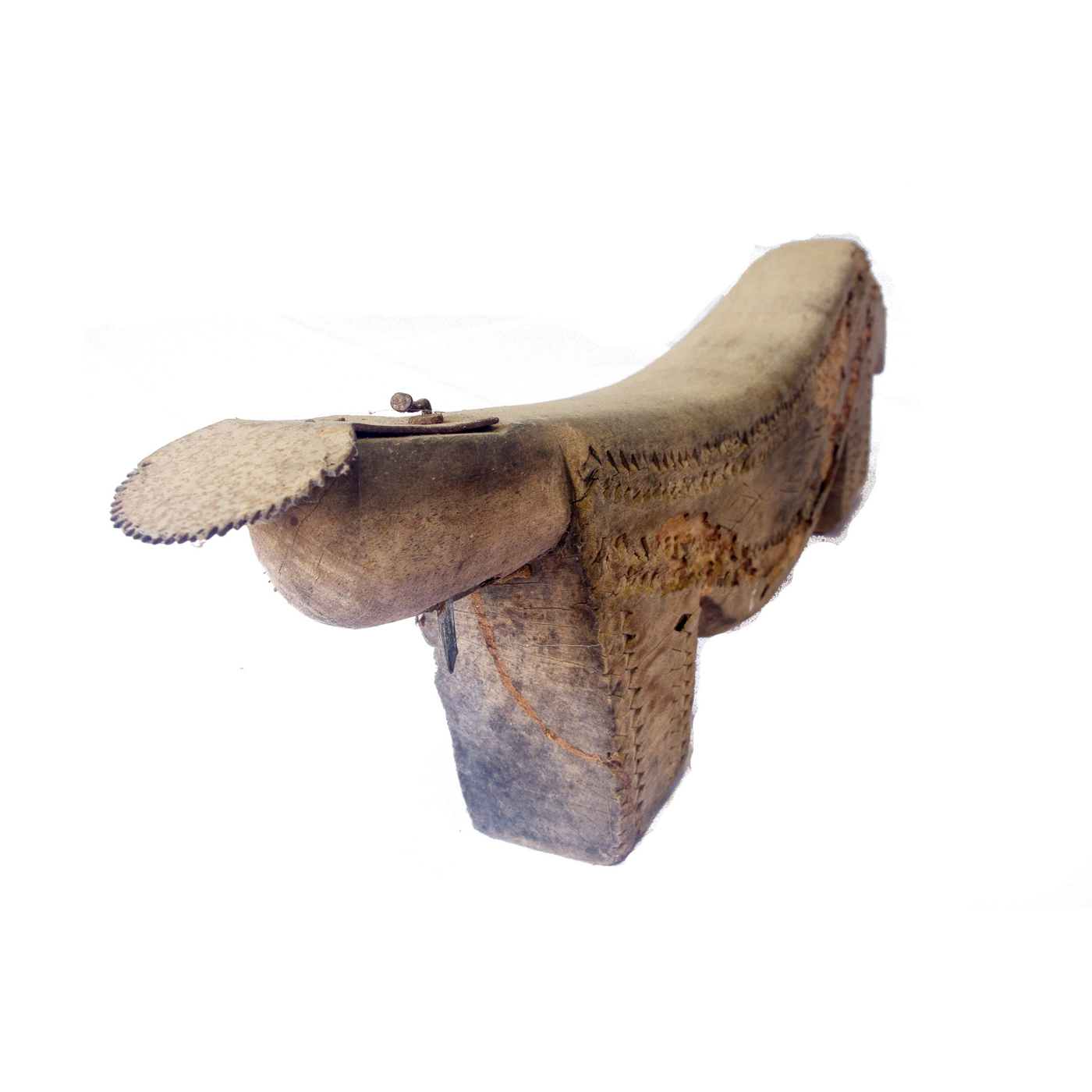

กระต่ายขูดมะพร้าว (krataai khut maphrao, "the coconut-scraping rabbit") is a tool for scraping coconut. The wooden body holds the scraping blade and is sat on while scraping; a toothed iron blade with small teeth like a saw's sticks out of its mouth. In the old days the wooden body was usually made in the shape of a rabbit. This blueprint makes a coconut grater following the source.
Intermediate
About 1 day

Instructions

1

The scraping teeth

Loading Jupyter Notebook...
2

A Thai kitchen tool before it

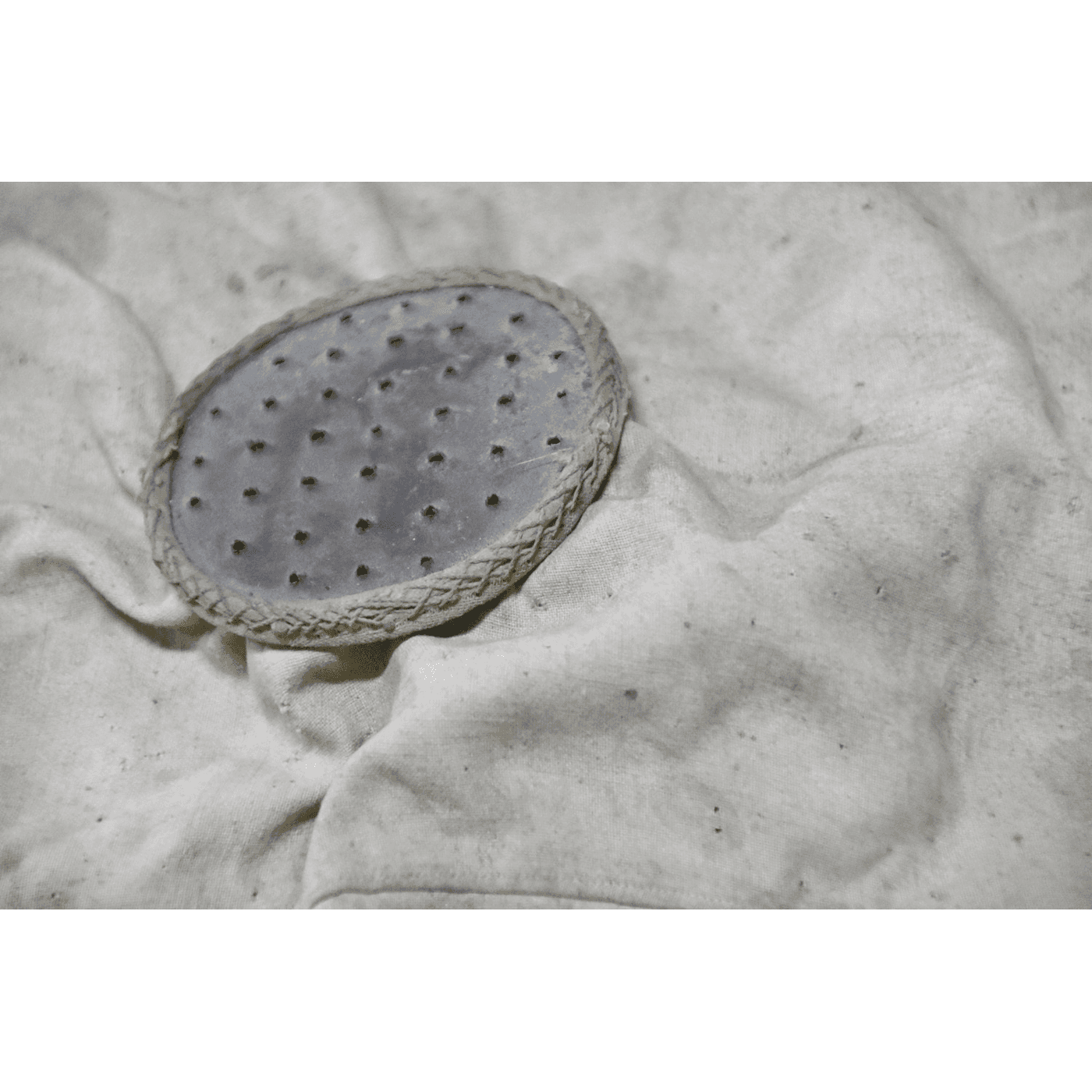

The waen roi makes khanom jeen noodles; the coconut grater scrapes coconut for squeezing coconut milk.
3

Read from the source

"Villagers scrape the coconut lightly, not pressing too hard, because that makes the coconut milk hard to squeeze out. If it is scraped lightly the coconut flesh comes off in fine shreds, so the coconut milk is easy to squeeze out and there is more of it." (Sirindhorn Anthropology Centre, author พิชชา ทองขลิบ (Phitcha Thongkhlip), CC BY 4.0)
4

The wooden body

Make a hardwood body as a long seat with legs at both ends, one end carved or built up as an animal's head, such as a rabbit. Cut a slot at the mouth for the toothed blade. Size it to a comfortable sitting height.

Materials for this step:

Hardwood BoardHardwood Board1 piece
Wood GlueWood Glue1 piece
#8 x 1" Wood Screw#8 x 1" Wood Screw1 piece

Tools needed:

Hand SawHand Saw
Chisel Set - WoodChisel Set - Wood
Cordless DrillCordless Drill
SandpaperSandpaper
5

The iron blade

Cut stainless steel sheet into a round plate, file its front edge into small teeth like a saw's, as in the real photos, and smooth the edge that is fixed to the mouth.

Materials for this step:

Stainless Steel Sheet - 304Stainless Steel Sheet - 3041 piece

Tools needed:

Tin SnipsTin Snips
Metal FileMetal File
Needle FilesNeedle Files
6

Assemble

Lay the toothed plate flat on the mouth at the end of the wooden body, with the toothed edge sticking out forward, and fix it firmly with screws.

Materials for this step:

#8 x 1" Wood Screw#8 x 1" Wood Screw1 piece

Tools needed:

Cordless DrillCordless Drill
Screwdriver SetScrewdriver Set
7

Real photos

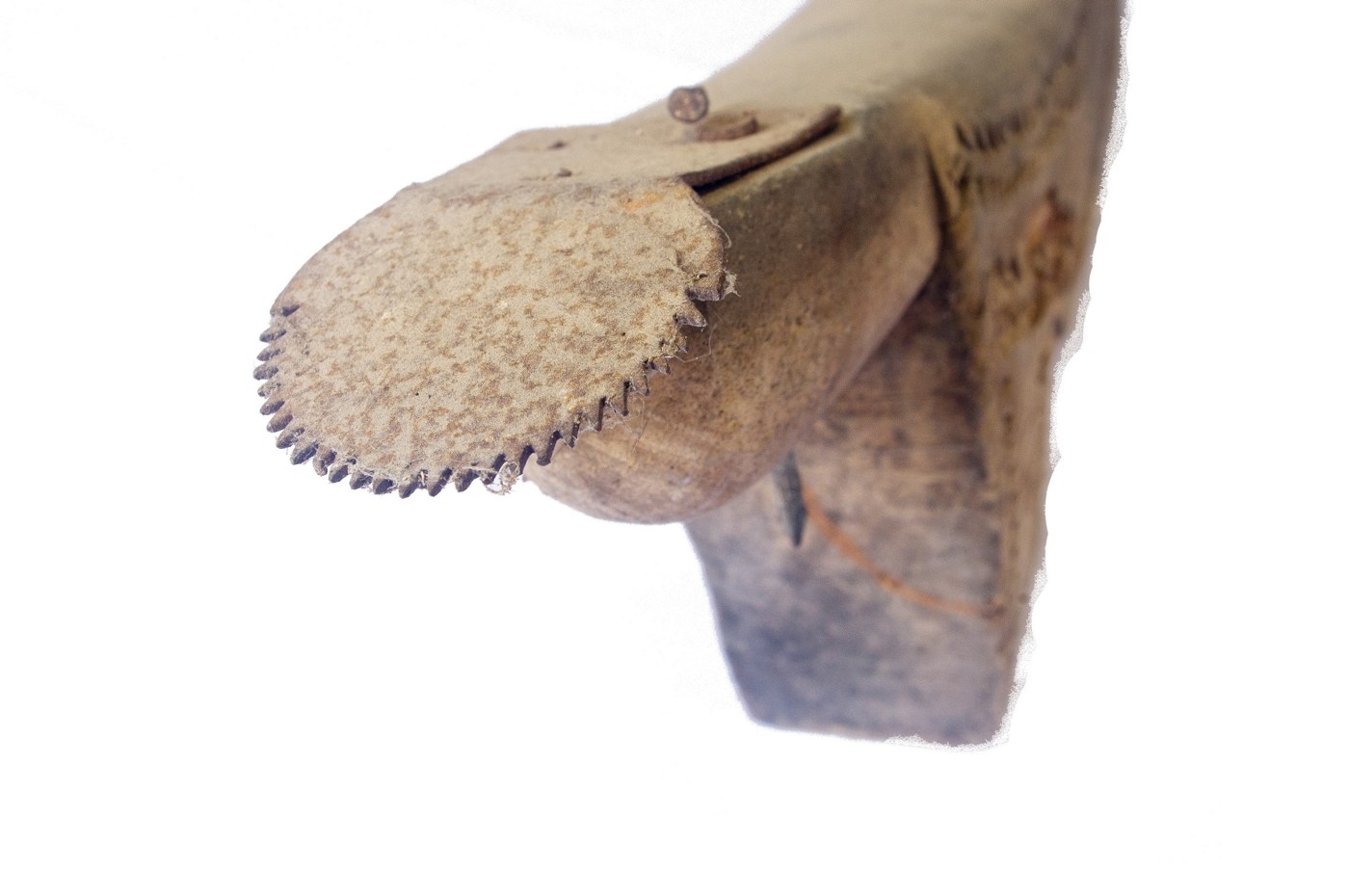

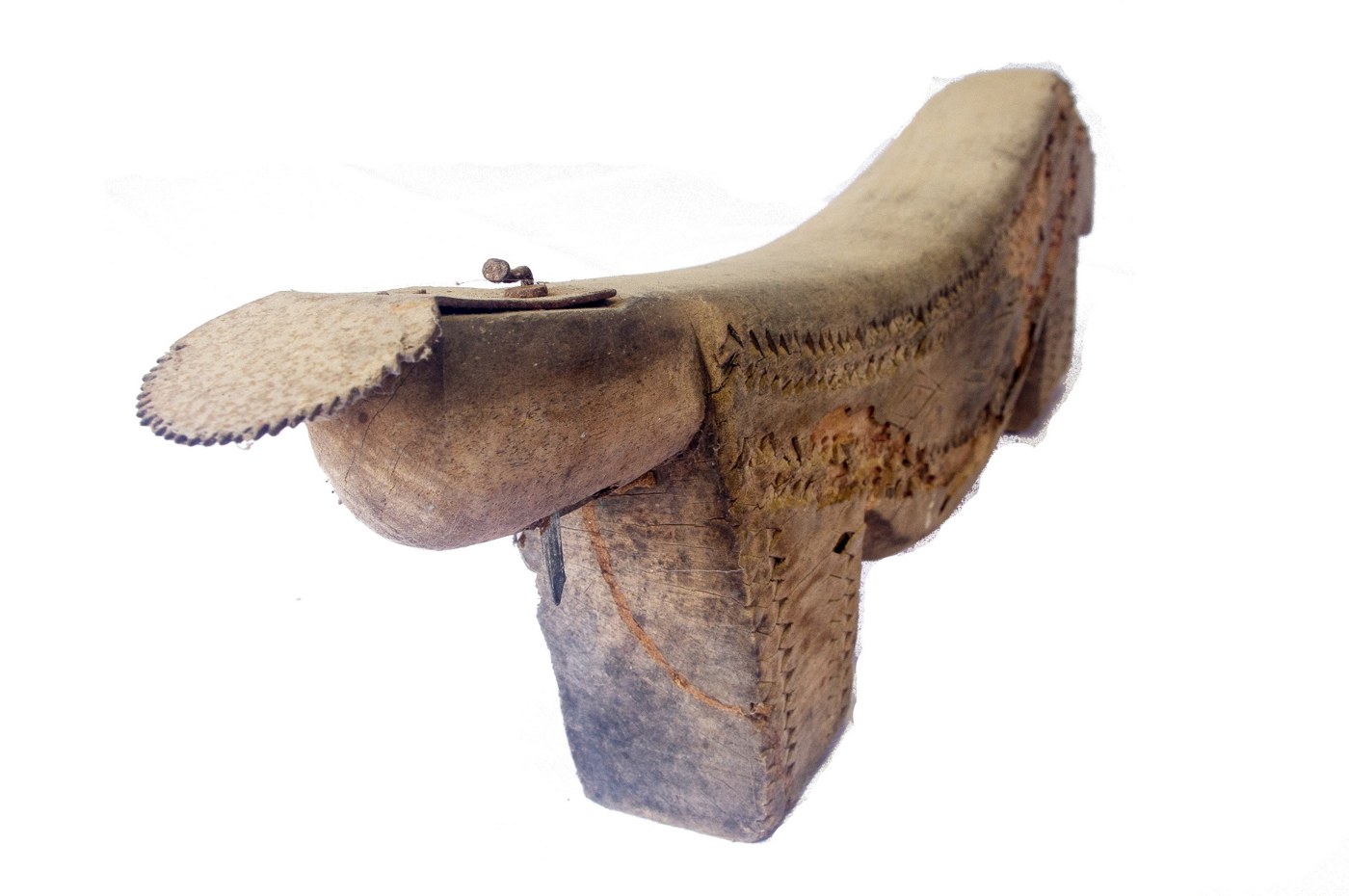

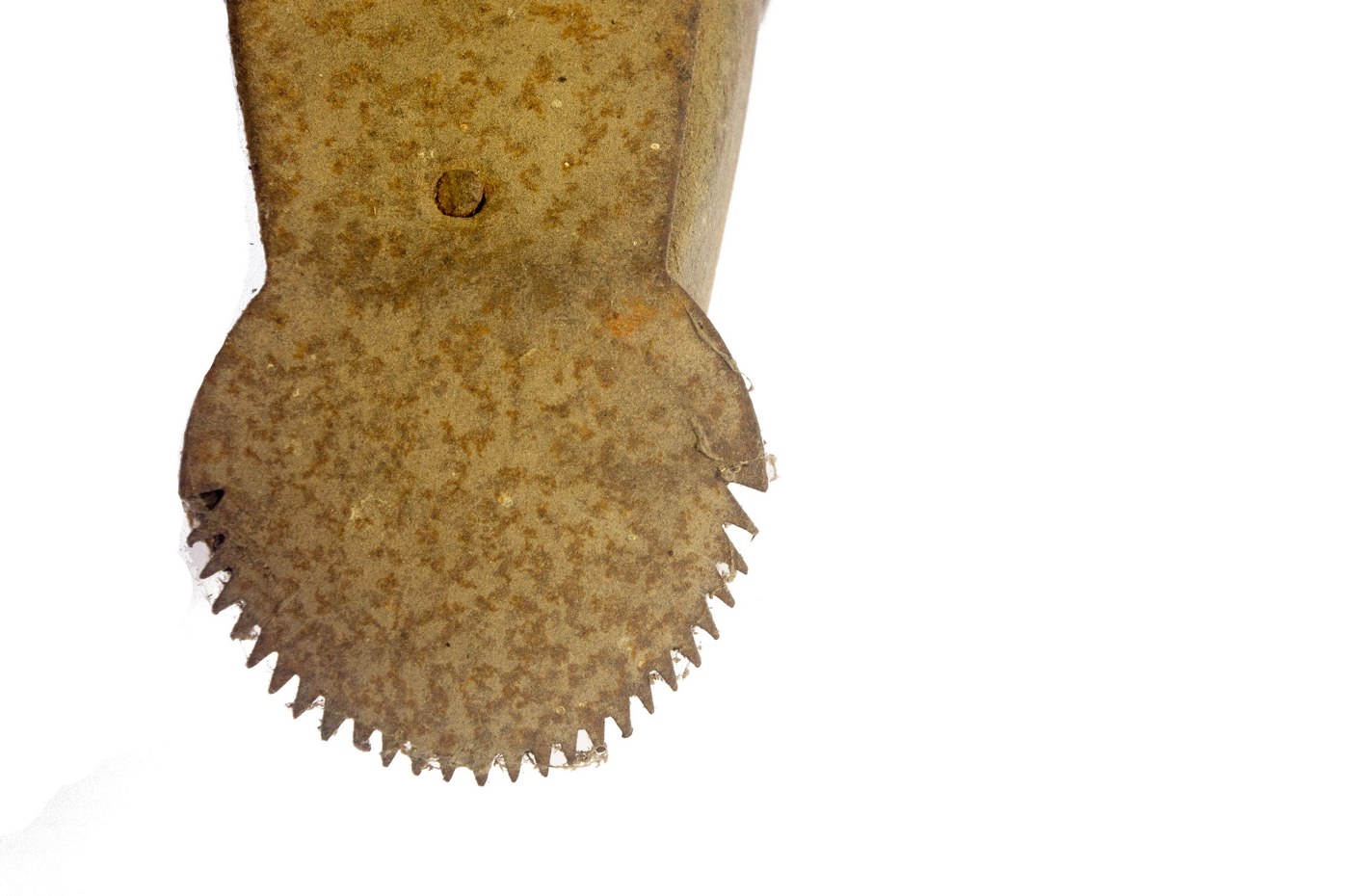

Real photos of a กระต่ายขูดมะพร้าว (krataai khut maphrao) from พิพิธภัณฑ์พื้นบ้านหนองบัวโคก บุรีรัมย์ (Nong Bua Khok Folk Museum, Buriram) (Sirindhorn Anthropology Centre, author พิชชา ทองขลิบ (Phitcha Thongkhlip), CC BY 4.0)
Step 7 - Image 1
Step 7 - Image 2
Step 7 - Image 3
8

How to scrape

Sit astride, or sit with your legs folded to one side of the coconut grater, and scrape the coconut flesh against the teeth lightly, without pressing hard, so it comes off in fine shreds. Scrape only while preparing the meal, because scraped coconut left for long goes sour.
Step 8 - Image 1

Materials for this step:

CoconutCoconut1 piece
9

Troubleshooting

Troubleshooting the coconut grater.

Flow

Loading...
10

History and limits

In the central and north-eastern regions it is called krataai khut maphrao, in the south lek khut, and in the north maew khut maphrao or ngong. Later the body was also made as other animals, such as a cat, dog, bird, rat, lion, turtle or monitor lizard. It is used less today, as there are hand-cranked and motor graters and ready-made coconut milk. Source: Sirindhorn Anthropology Centre, database of traditional everyday objects, "กระต่ายขูดมะพร้าว", author พิชชา ทองขลิบ (licence CC BY 4.0), from the Nong Bua Khok Folk Museum, Buriram. **Limits.** The source gives no sizes; the sizes in the model are examples. We use stainless steel sheet instead of iron plate.

Materials

5

Tools Required

8

CC0 Public Domain

This blueprint is released under CC0. You are free to copy, modify, distribute, and use this work for any purpose, without asking permission.
