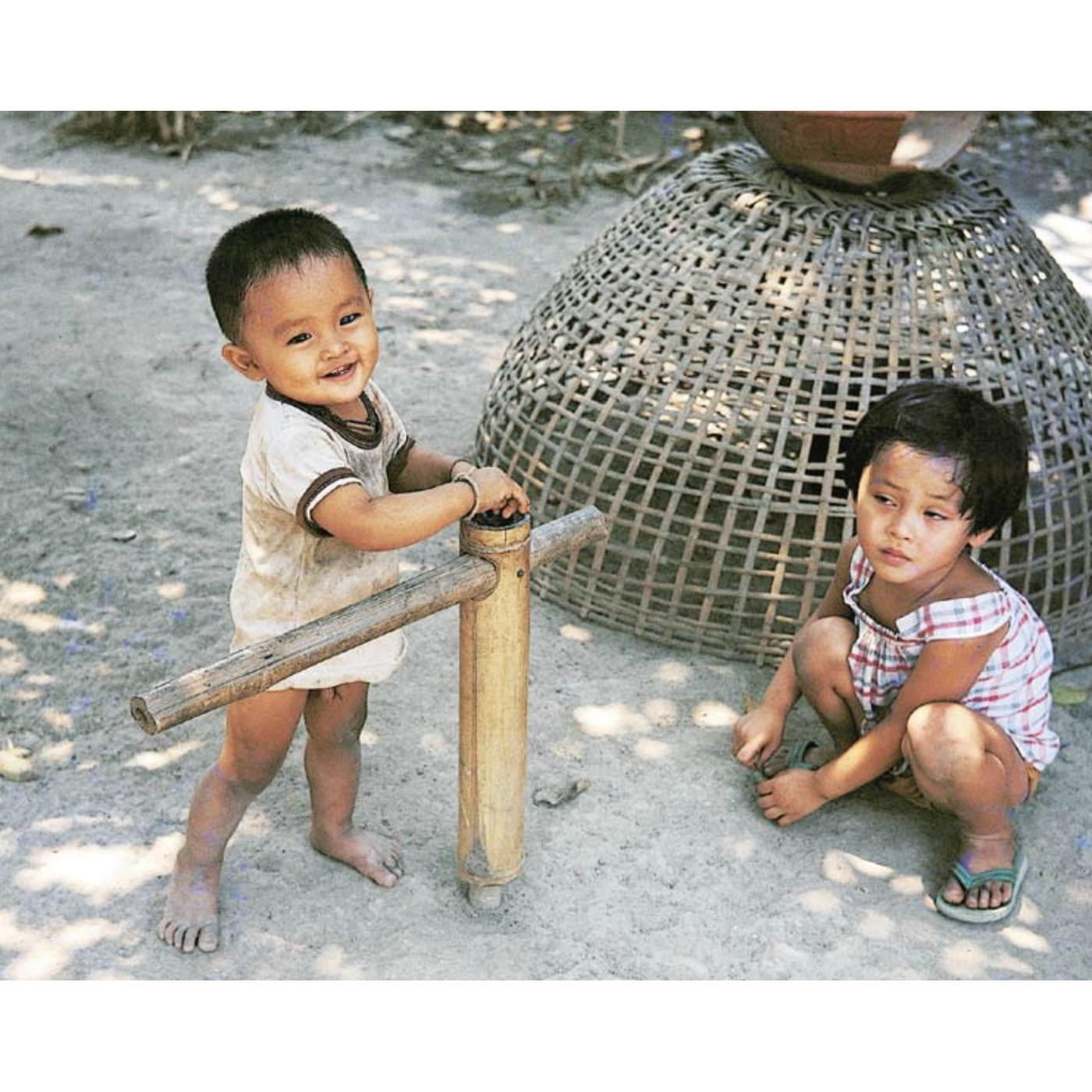

Krataeh Wian — a Bamboo Tube Turning on a Stake Helps a Child Learn to Walk
กระแตเวียน (krataeh wian) is a device for teaching a child to walk or to stand balanced. It is made of a bamboo tube slipped over a wooden stake, with a bamboo arm through it for the child to hold on to while walking in a circle round the stake.
This blueprint makes a krataeh wian to the sizes given in the source.
Beginner
About 2 hours
Instructions
1
1
Lengths used
Lengths used
Loading Jupyter Notebook...
2
2
A bamboo tool before it
A bamboo tool before it
The threshing sticks are two bamboo sticks and a cord; the krataeh wian is two pieces of bamboo and a wooden stake.
3
3
Read from the source
Read from the source
"When the tube is slipped onto the stake it must be just stiff enough: not too loose, because the child would fall easily, and not too tight, because the child could not turn and walk." (Sirindhorn Anthropology Centre, author ธันวดี สุขประเสริฐ (Thanwadi Sukprasoet), CC BY 4.0)
4
4
The tube
The tube
Cut a bamboo tube about two internodes long, or about 45 cm, about 6-7 cm across. Cut the node out of the lower internode, and drill a hole in the upper internode for the arm. Sand the edges smooth, with no splinters.
Materials for this step:
Bamboo Poles1 pieceTools needed:
Hand Saw
Cordless Drill
Drill Bit Set
Sandpaper5
5
The arm
The arm
Cut a small bamboo about 45 cm long and about 1.5-2 cm across. Push it through the hole square to the tube and round off its ends.
Materials for this step:
Bamboo Rod1 pieceTools needed:
Hand Saw
Sandpaper6
6
The stake
The stake
Use a hardwood or bamboo stake about 75 cm long, driven firmly into the ground, then slip the tube onto the stake so that it is just stiff enough: it turns, but is not loose.
Materials for this step:
Wooden Stake1 pieceTools needed:
Sledgehammer7
7
Real photos
Real photos

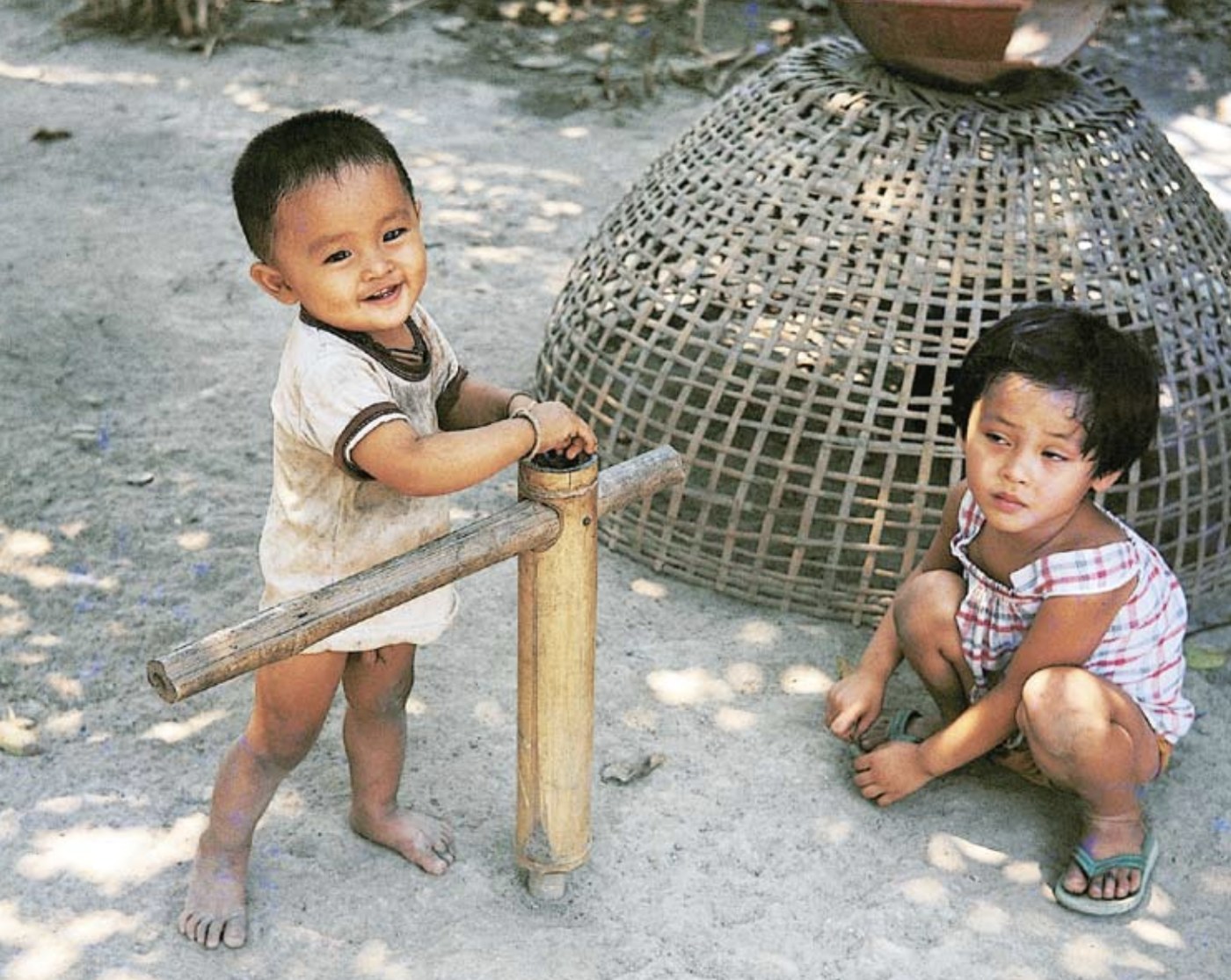

Real photos of a กระแตเวียน (krataeh wian) (Sirindhorn Anthropology Centre, author ธันวดี สุขประเสริฐ (Thanwadi Sukprasoet), CC BY 4.0)

8
8
How to use
How to use
Let the child hold the arm and walk in a circle round the stake. An adult must watch closely the whole time.

9
9
Troubleshooting
Troubleshooting
Troubleshooting the krataeh wian.
Flow
Loading...
10
10
History and limits
History and limits
Other names: mai mun, i doi; local name: bok wian. In the past villagers set the krataeh wian under the raised house or in the yard. Today some families use PVC pipe instead of bamboo, or set the stake in a cast-cement bucket with a hole in the middle, so it can be moved into the shade.
Source: Sirindhorn Anthropology Centre, database of traditional everyday objects, "กระแตเวียน", author ธันวดี สุขประเสริฐ (licence CC BY 4.0), citing วิบูลย์ ลี้สุวรรณ (Wibun Lisuwan) (2546 BE) and สนม ครุฑเมือง (Sanom Khrutmueang) (2534 BE).
**Limits.** All sizes are approximate, as in the source; adjust them to the child's height.
