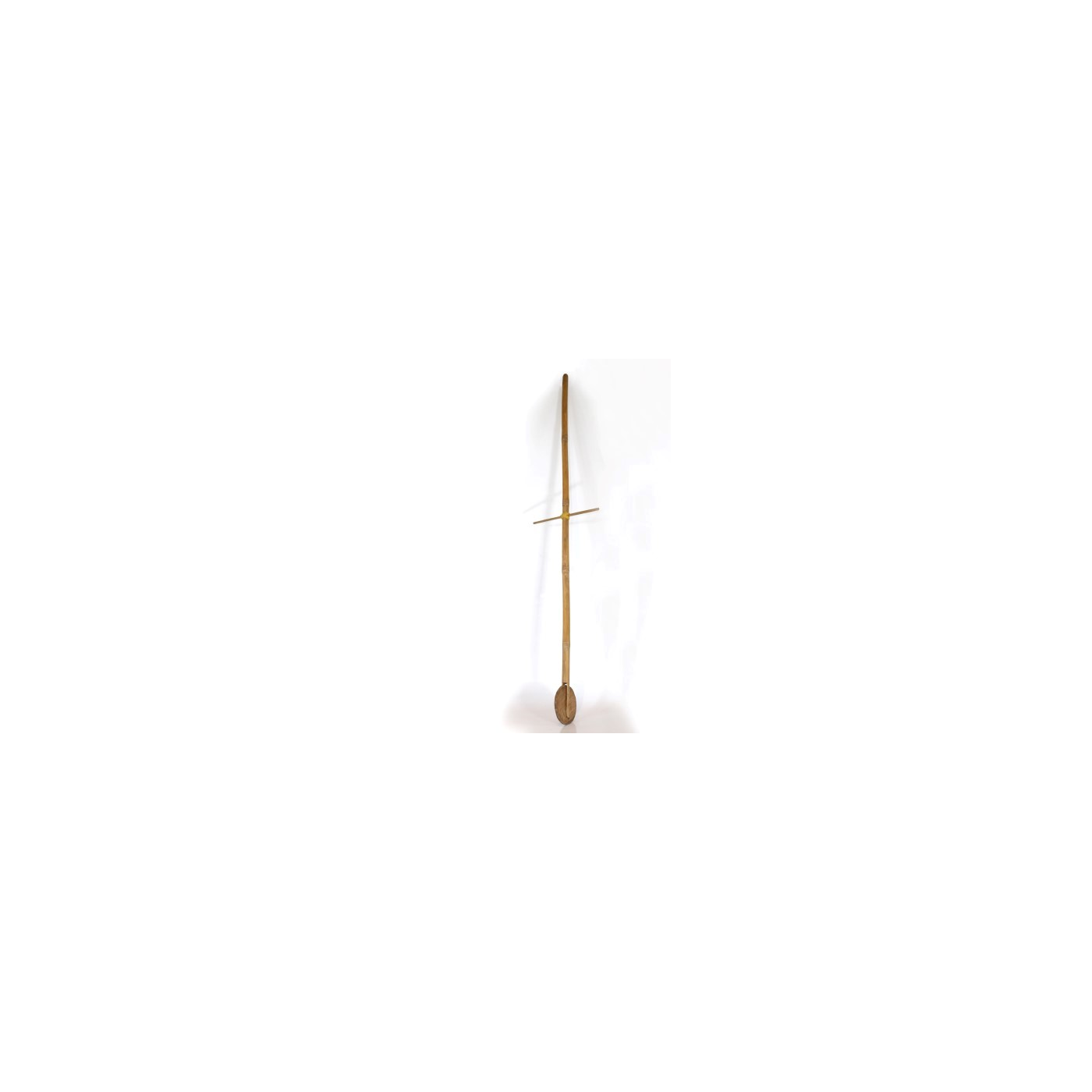

Wooden wheel (single wheel) — 1-3 inch hardwood wheel on the tip of a 1.5-2 m bamboo pole that is split and wedged with a wedge to hold open, axle passes through, cross-shaped handle at chest height, pole rests on the shoulder while running and sliding

Wheel (wooden wheel, coconut-shell wheel) is a children's toy used for running and playing. The names differ according to the material. The wooden wheel uses the tip of the pole resting on the shoulder, then runs and slides forward. There are 2 major types, namely the single wheel and the double wheel. This blueprint makes a single wheel. This blueprint makes a real wooden wheel according to the dimensions in the source.
Intermediate
About half a day

Instructions

1

Actual size

Loading Jupyter Notebook...
2

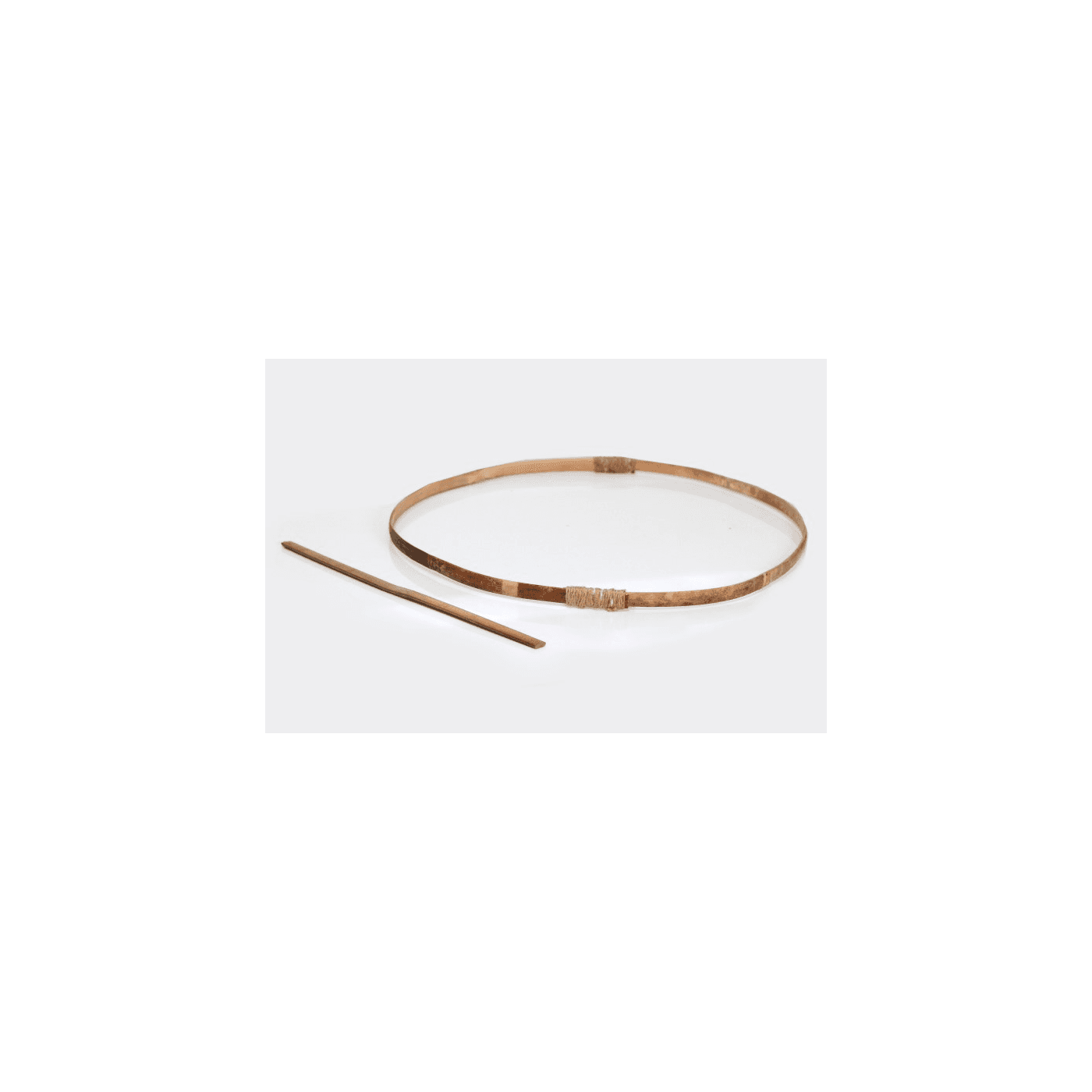

Previous toy wheels

Wooden hoop rolled by striking it with a stick. The wheel is held by a wooden rod attached at the end, then pushed along while running.
3

Read from source

"The wooden wheel uses the tip of the stick resting on the player's shoulder to slide forward." (Sirindhorn Anthropology Centre, author not specified, CC BY 4.0)
4

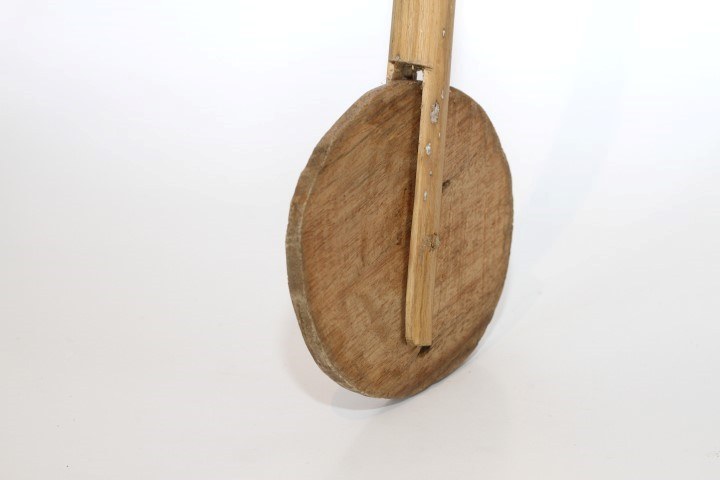

Wheel

Use a knife to carve a hardwood or teak piece, 1-3 inches long, into a circle. Smooth the surface with sandpaper. Drill a hole in the center to serve as the wheel axle.
Step 4 - Image 1

Materials for this step:

Hardwood BlockHardwood Block1 piece

Tools needed:

KnifeKnife
SandpaperSandpaper
5

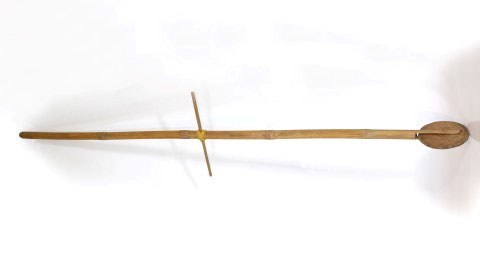

Bamboo handle

Take a bamboo pole about 1.5-2 meters long and split it lengthwise at the lower end for about 1 node. Drive a wedge in to spread the split end wide enough to fit the wheel. Drill holes in the bamboo on both sides, then insert an axle through the bamboo holes and the wheel hole.
Step 5 - Image 1

Materials for this step:

Bamboo PolesBamboo Poles1 piece
Hardwood WedgeHardwood Wedge1 piece

Tools needed:

HammerHammer
6

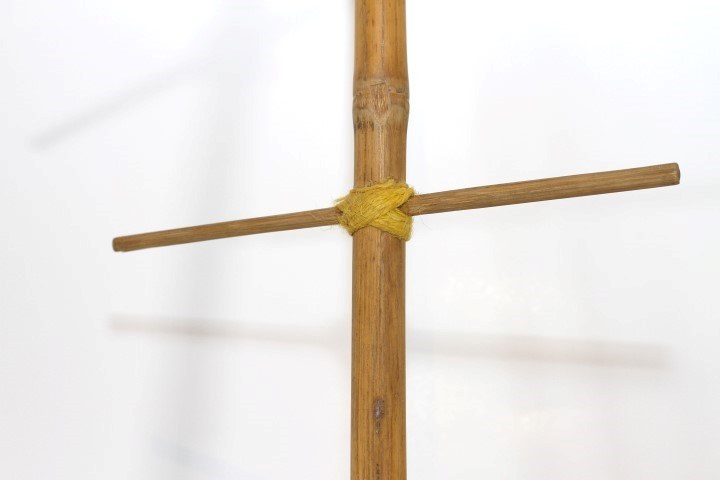

Cross handle

Use a short bamboo stick to hammer nails crosswise into a cross shape, at chest level of the player.
Step 6 - Image 1

Materials for this step:

NailsNails1 piece
7

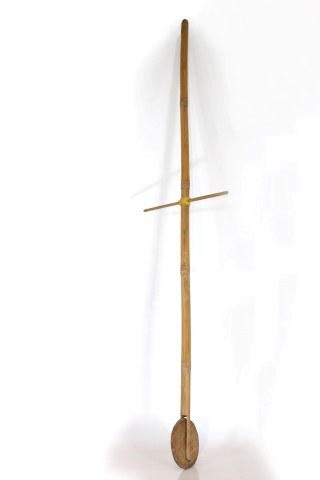

Actual image

Actual wooden puppet image (Sirindhorn Anthropology Center, unknown author, CC BY 4.0)
Step 7 - Image 1
Step 7 - Image 2
Step 7 - Image 3
8

How to play

Rest the bamboo pole on your shoulder, hold the cross-shaped handle, and run pushing the wheel along roads and paths. Some people make the wheel like a train wheel, or attach animal figures to move with the spinning wheel.
Step 8 - Image 1
9

Troubleshooting

Wooden wheel troubleshooting

Flow

Loading...
10

History and Limitations

Dual wheels work the same way but use two wheels on a single axle, and there is a rope steering wheel near the shoulder for turning. Be careful with knives and hammers. Source: Sirindhorn Anthropology Centre, Folk Tools and Implements Database, "Wheel", author not specified (licensed under CC BY 4.0) **Limitations** The source gives the wheel size as "1-3 inches long" without specifying whether this is thickness or diameter, and does not give the axle size.
