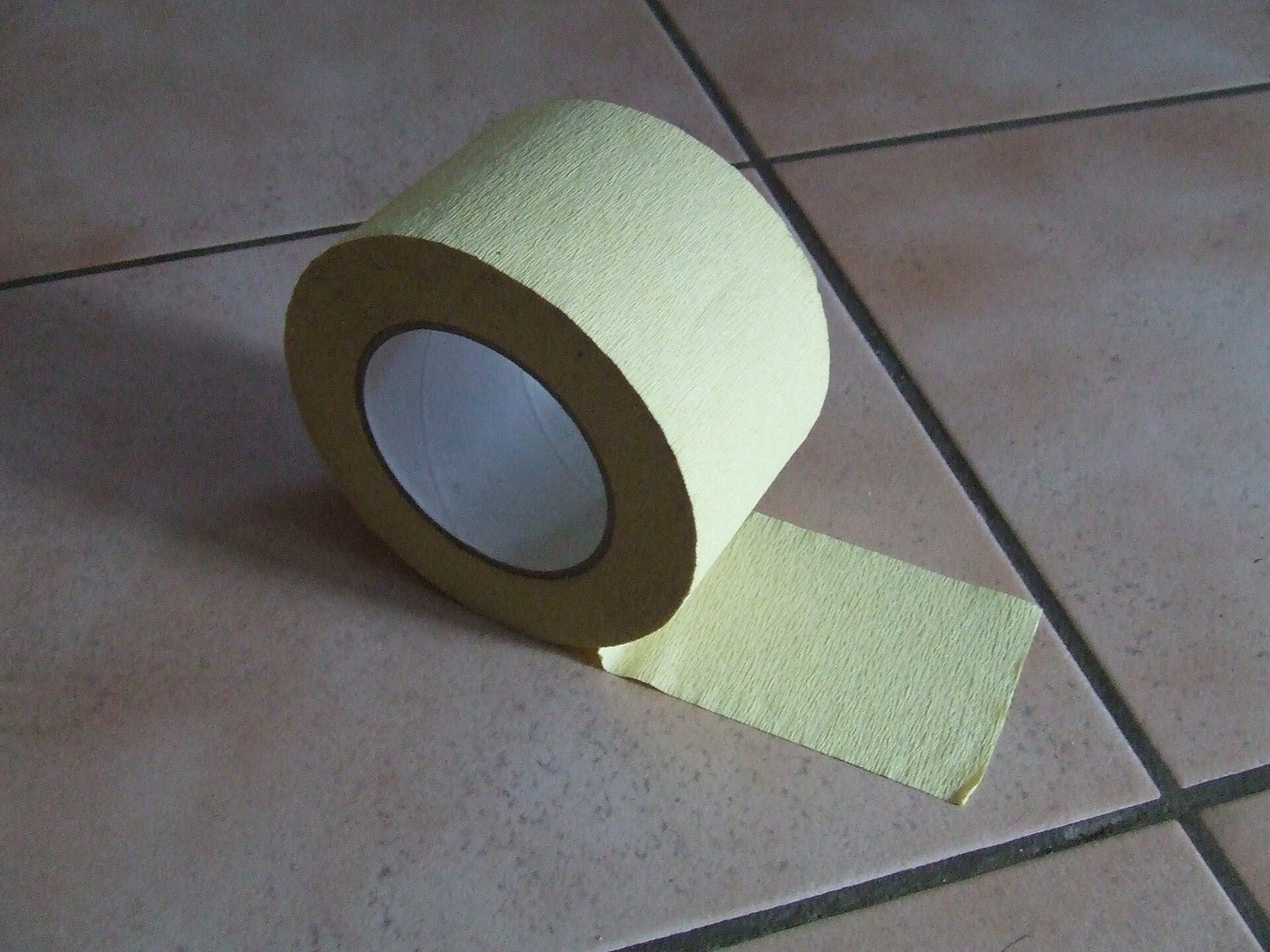

Masking Tape: Crepe Paper, Release Coat and Rubber Adhesive
Masking tape is paper, usually creped so it stretches around curves, with a pressure-sensitive adhesive on one side. The paper is saturated with resin so paint cannot seep through, and given a release coating on its top so the tape unwinds from the roll. Pressure-sensitive adhesives are usually an elastomer with a tackifier such as a rosin ester, coated on as a liquid and dried in hot air. The coated web is wound into jumbo rolls, then slit into narrow widths and rewound on cores.
Advanced
Factory process
Instructions
1
1
Saturate
Saturate
Saturate the crepe paper with resin so paint will not soak through.
Materials for this step:
Crepe Paper Backing1 as required
Paper Saturating Resin1 as requiredTools needed:
Tape Coating and Drying Line2
2
Release coat
Release coat
Coat the top side with the release coating so the roll unwinds.
Materials for this step:
Release Coating1 as requiredTools needed:
Tape Coating and Drying Line3
3
Adhesive
Adhesive
Coat the underside with the rubber and tackifier adhesive and dry it in hot air.
Materials for this step:
Natural Rubber Latex1 as required
Pine Rosin1 as requiredTools needed:
Tape Coating and Drying Line4
4
Slit and rewind
Slit and rewind
Wind the web into jumbo rolls, then slit it to width and rewind it onto cores.
Materials for this step:
Cardboard Tube1 as requiredTools needed:
Slitter-RewinderMaterials
6- 1 as requiredPlaceholder
- 1 as requiredPlaceholder
- 1 as requiredPlaceholder
- 1 as requiredPlaceholder
- 1 as requiredPlaceholder
- 1 as requiredPlaceholder
Tools Required
2- Placeholder
- Placeholder
