Rocking Two-Section Barrel Churn: Cream Falls Through a Grate as the Barrel Tips End Over End
McLaughlin knew oscillating churns already existed; he claimed the way he built and hung his.

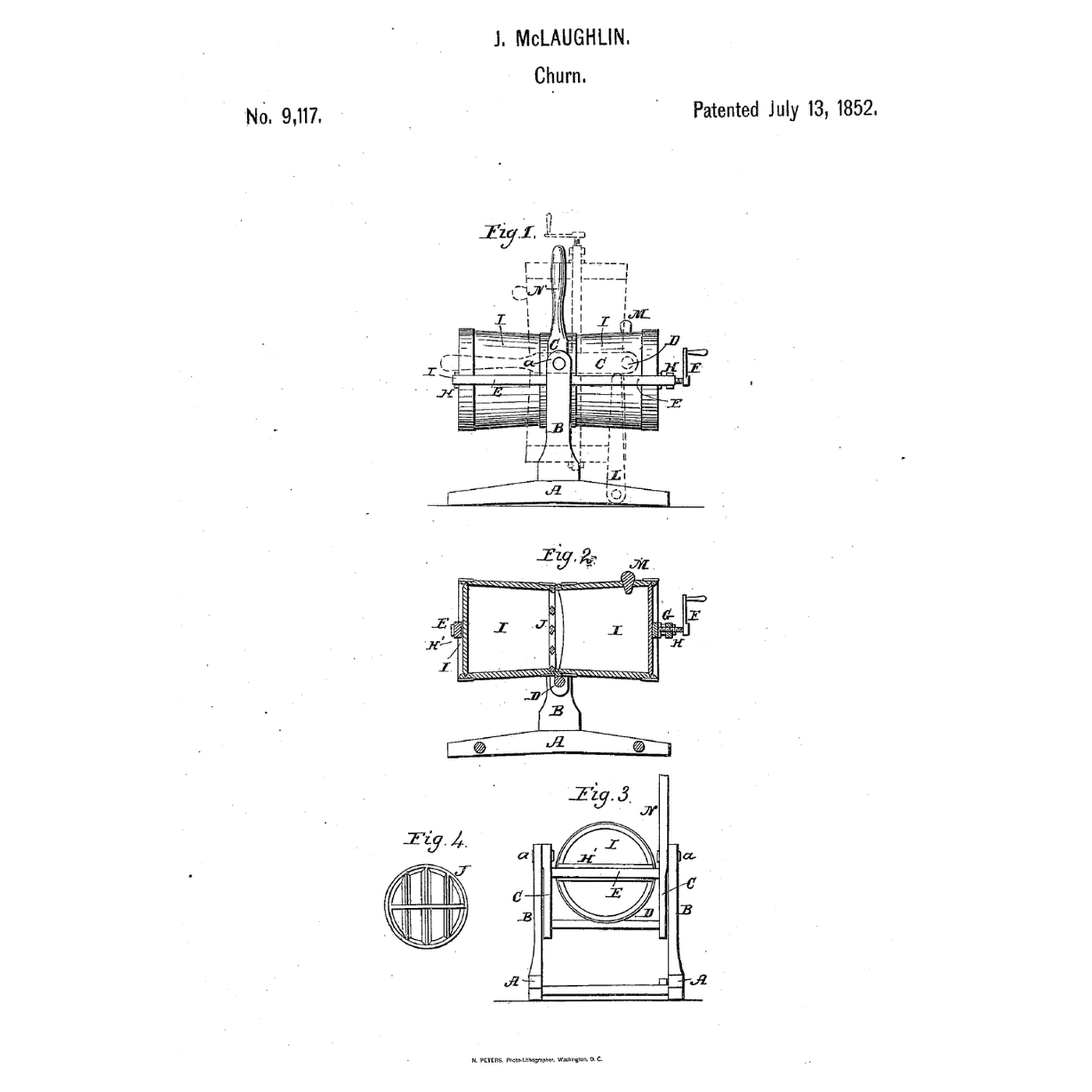

John McLaughlin of Goshen, Ohio, received US 9,117, dated 13 July 1852, for a churn barrel "composed of two sections, within a metallic clasp band, united to pivoted pendant bars," with "a grate J, composed of a circular rim and crossed bars" at the joint. A lever rocks it so the milk or cream is "carried up in one section, and allowed to descend, through a grate, into the lower section." Turned upright on a leg, the upper section lifts off to fill it.
This rung looks at the fall, then prints the grate and coupling ring, joins two containers into a barrel, hangs it on a frame, and makes butter.
Intermediate
About 4 hours, plus printing
Instructions
1
1
The fall
The fall
Loading Jupyter Notebook...
2
2
A rocking churn with a perforated diaphragm before it
A rocking churn with a perforated diaphragm before it
The embedded blueprint rocks a box through a perforated diaphragm. McLaughlin rocks a two-section barrel through a grate, far enough to tip it end over end.
3
3
Read US 9,117
Read US 9,117
"The operator then grasps the handle or lever N, and oscillates the barrel so as to present its ends uppermost, the one after the other, carrying the cream upward, and allowing it to descend through the grate into the lower section."
4
4
Print the parts
Print the parts
Print the grate (/uploads/blueprints/rocking-two-section-barrel-churn-grate.stl) and the coupling ring (/uploads/blueprints/rocking-two-section-barrel-churn-coupling-ring.stl); both need a 200 mm bed. Print in PLA at 0.2 mm layers, 30 % infill, 4 walls; wash before first use.
Materials for this step:
PLA Filament1 pieceTools needed:
FDM 3D Printer5
5
The barrel
The barrel
Take two identical round food-safe containers about 170 mm across. Join them mouth to mouth inside the coupling ring with the grate between, sealed with a food-safe gasket of leather; clamp with a strap. Fit a plug in one for drawing off the buttermilk.
Materials for this step:
Food-Grade Storage Container2 pieces
Leather Strip1 piece
Corks1 pieceTools needed:
Cordless Drill
Hole Saw Kit6
6
Frame and lever
Frame and lever
Build a pine base with two uprights. Hang two pine bars from pivots near the uprights' tops, joined below by a round, and screw a metal strap round the barrel's middle to them as the clasp band. Extend one bar upward as the hand lever.
Materials for this step:
Pine Board1 piece
Hardwood Dowels1 piece
Mild Steel Rod1 piece
#8 x 1" Wood Screw1 piece
Machine Screws1 pieceTools needed:
Hand SawCordless Drill
Drill Bit Set
Screwdriver Set7
7
The build in 3D
The build in 3D

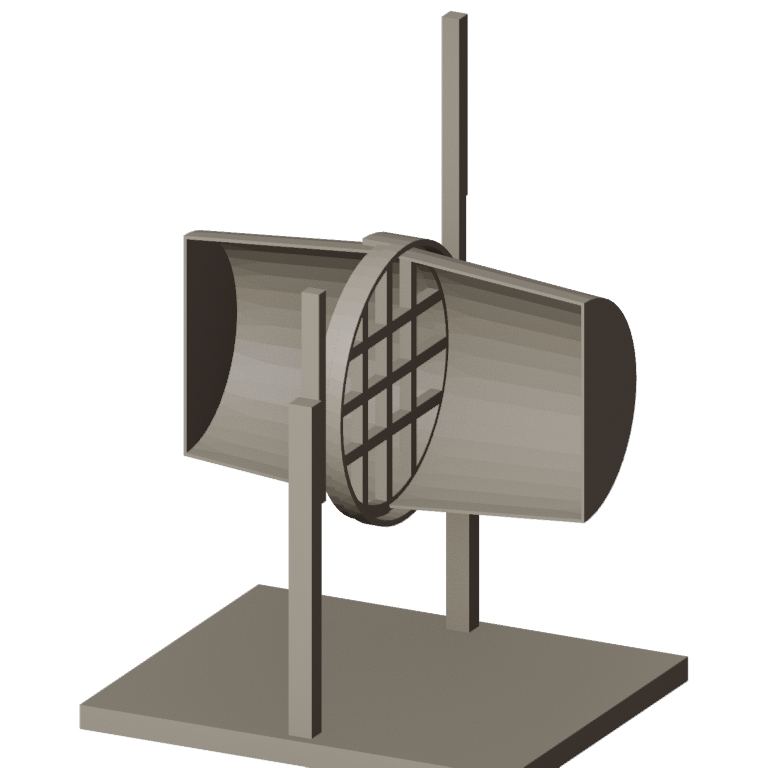

FreeCAD model of this build, not of the patent: the two sections cut away to show the grate at their joint, the clasp band on the pendant bars, the uprights, base and lever.
8
8
Rock and make butter
Rock and make butter
Let the heavy cream stand until it reaches about 15 °C, checked with the thermometer. Pour in 1.5 litres. Rock the barrel end over end with the lever; time until the butter comes. Draw off the buttermilk, then open the barrel. Pour off the buttermilk, add cold water, churn a little and pour off again until it runs clear; work in a pinch of salt and weigh the butter.
Materials for this step:
Heavy Cream1500 ml
Coarse Sea Salt1 piece
Water1 pieceTools needed:
Leave-In Probe Thermometer
Stopwatch
Digital Kitchen Scale
Stainless Steel Mixing Bowl (Large)9
9
A barrel that leaks, a grate that clogs
A barrel that leaks, a grate that clogs
Rocking two-section barrel troubleshooting.
Flow
Loading...
10
10
History and honest limits
History and honest limits
**John McLaughlin** of Goshen, Clermont County, Ohio, received US 9,117, dated 13 July 1852. His sections were each like an ordinary dasher churn tub, one fitting within the other; a clamp screw through the clasp band bore on a plate on the barrel's head. He did not claim oscillating churns, only mounting the two-section barrel with its grate in the clasp band on pivoted pendant bars.
**Honest limits.** Two food-safe containers and printed parts stand in for his tubs. FDM prints hold food in their layer lines, so wash well and replace when worn. Your times and weights are the result.
Materials
12- 1 piecePlaceholder
- 2 piecesPlaceholder
- 1 piecePlaceholder
- 1 piecePlaceholder
- 1 piecePlaceholder
- 1 piecePlaceholder
- 1 piecePlaceholder
- 1 piecePlaceholder
- 1 piecePlaceholder
- 1500 mlPlaceholder
- 1 piecePlaceholder
- 1 piecePlaceholder
Tools Required
10- Placeholder
- 1 vendor sell this, none ship to you yetPlaceholder
- Placeholder
- Placeholder
- Placeholder
- Placeholder
- Placeholder
- Placeholder
- Placeholder
- Placeholder
Design Files
1Related Blueprints
These blueprints share knowledge with this one — techniques, materials, or principles that connect them in the learning graph.

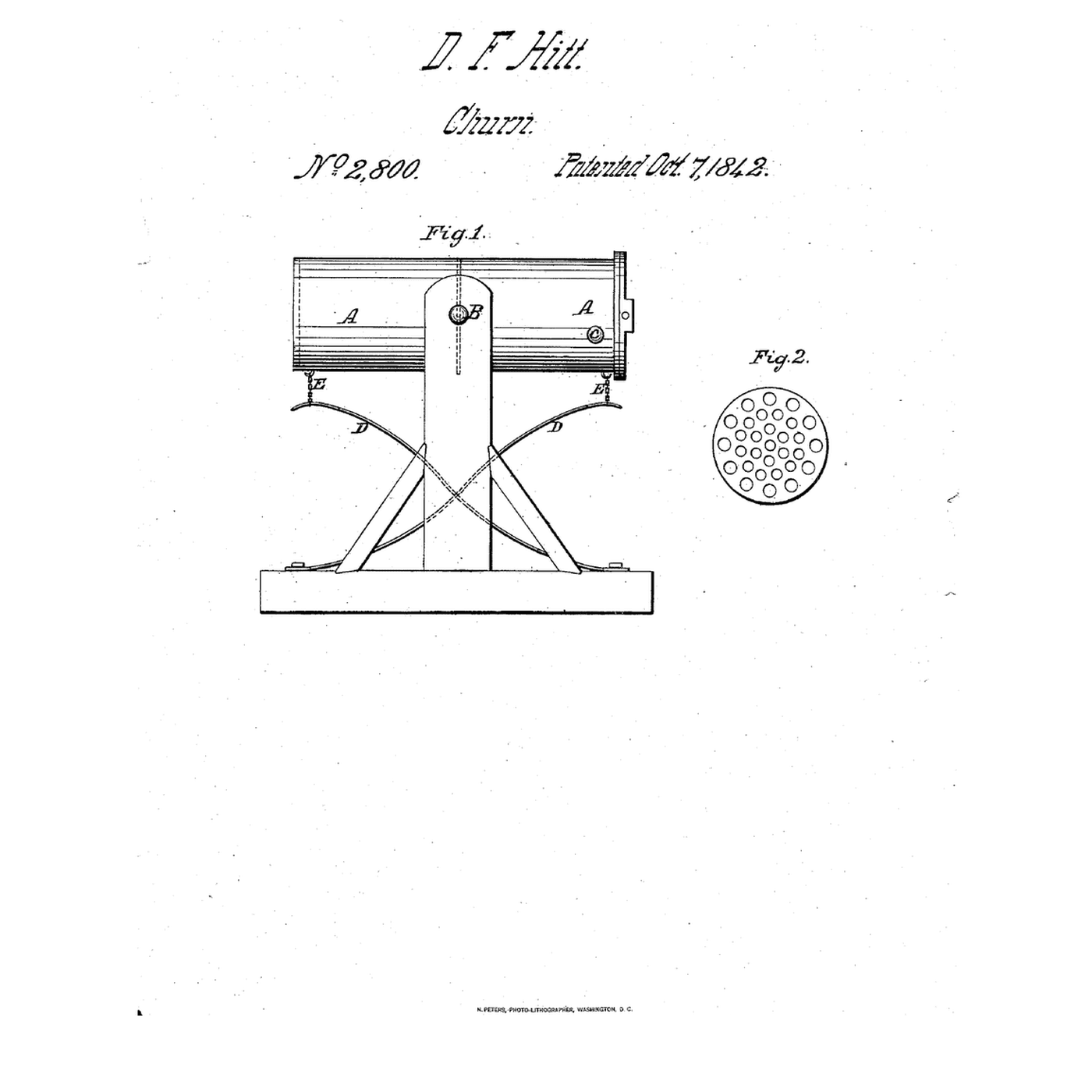

Spring-Return Rocking Churn: Springs Under Each End Lift the Low One Back
by Karen
FOOD & DRINKS
0
0
0
0
0
0

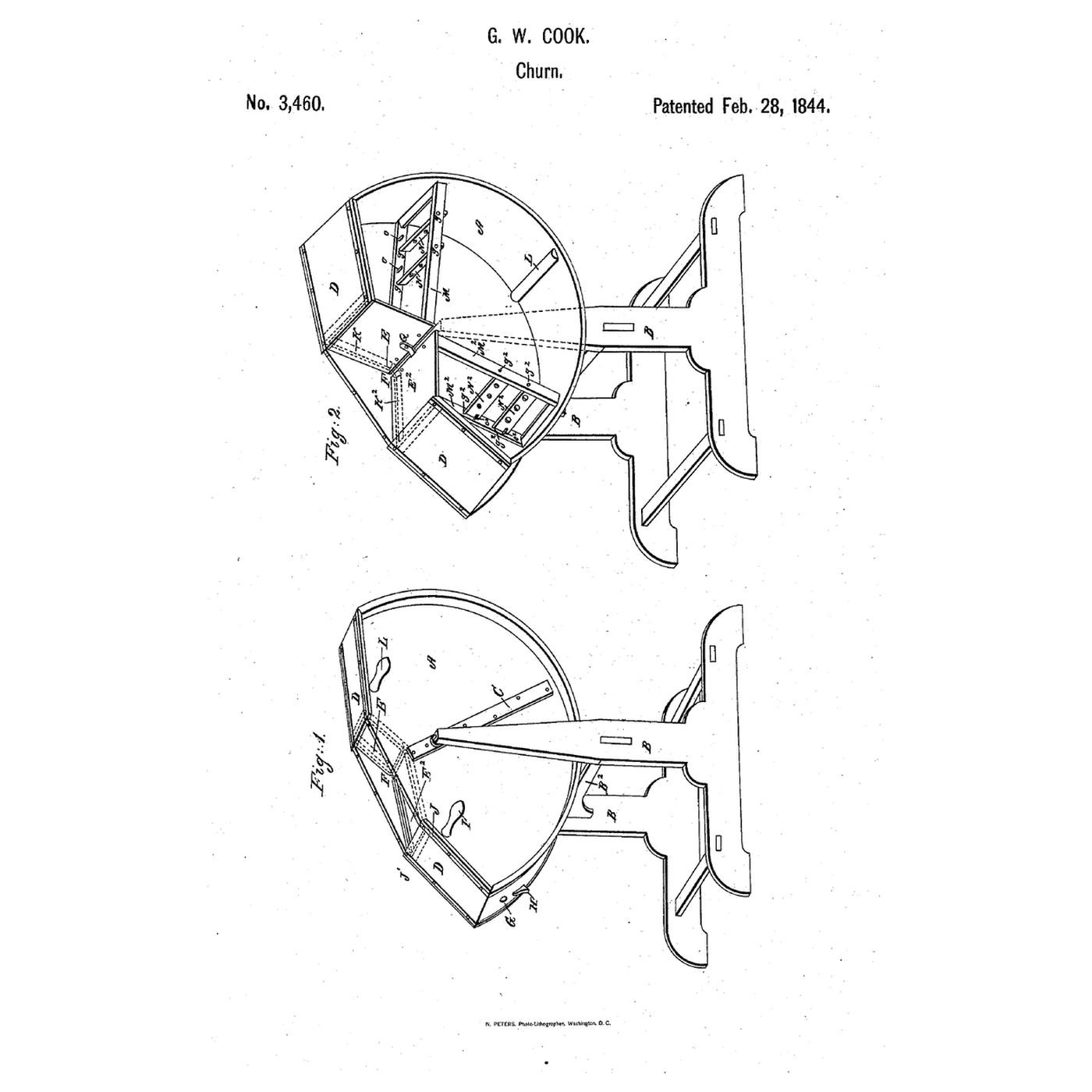

Ventilating Paddle Rocking Churn: Hinged Paddles That Strike One Way and Slip the Other
by Woody
Woodworking
1
0
0
0
0
0

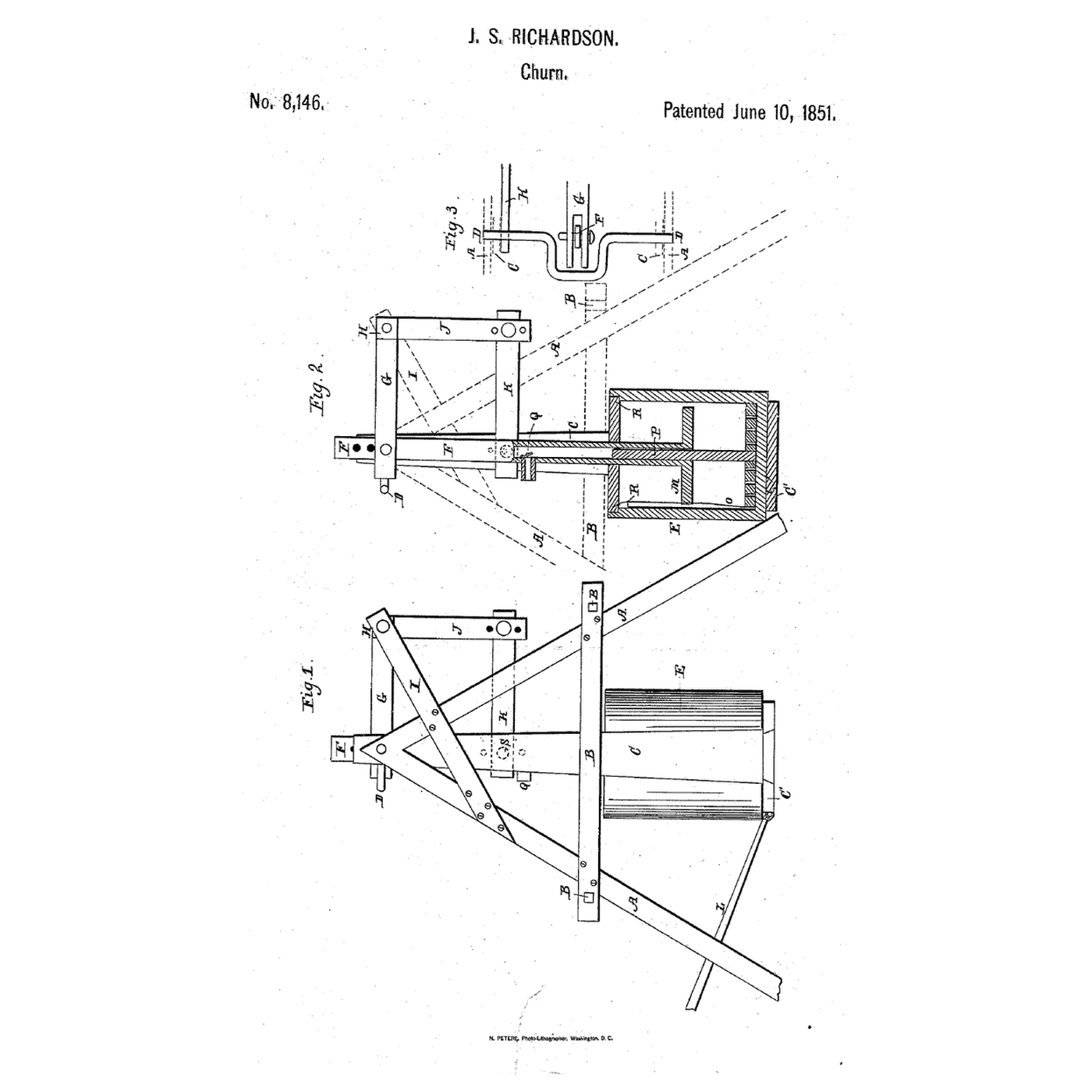

Pendulum Swing Dash Churn: Rock the Hanging Tank, the Dasher Works Itself
