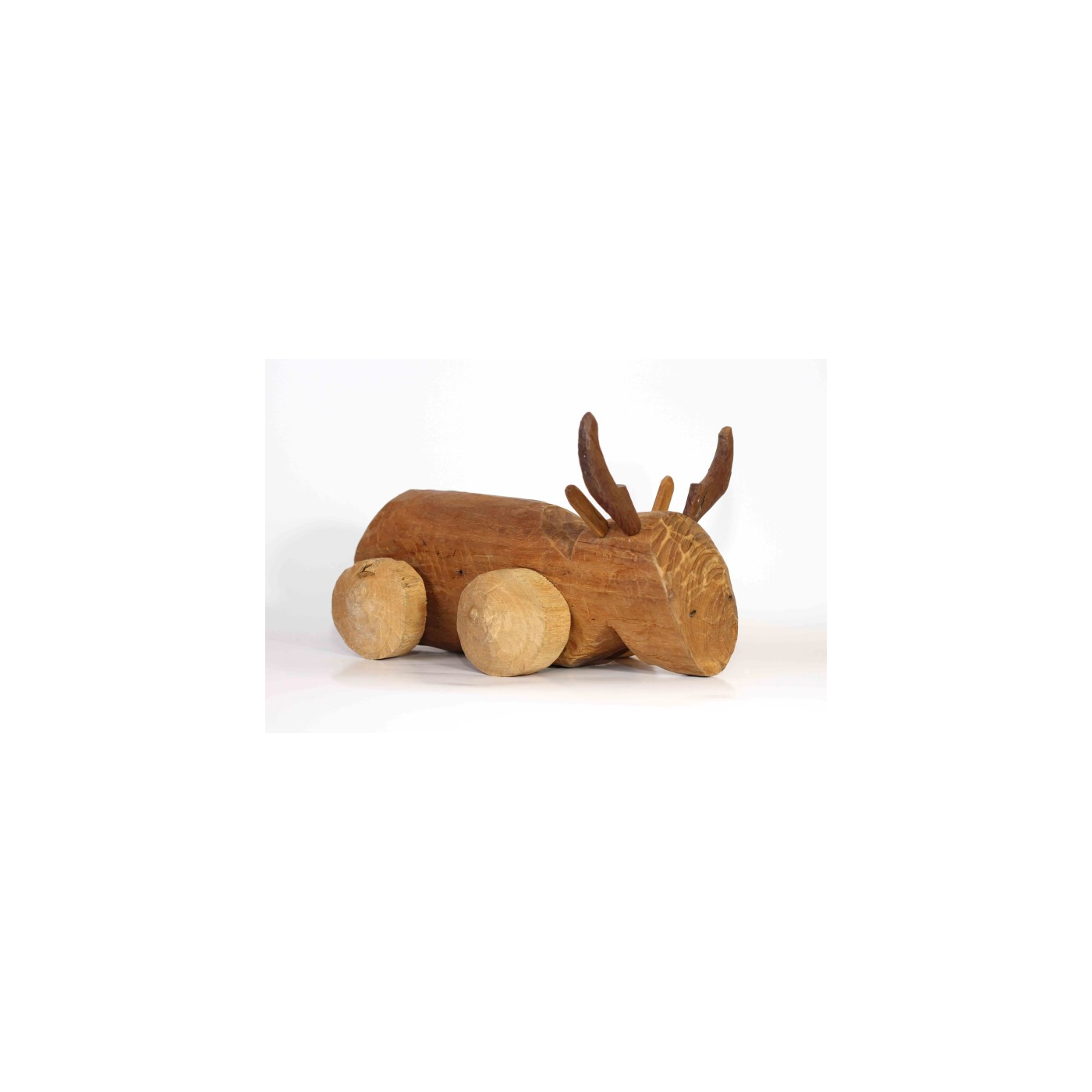

Pull Animal — wood 3 × 12 × 3 cm. Carved into an animal shape, with 3 cm wooden wheels; four wheels on an axle smaller than the hole, attached to horns, ears, and tail. Push or pull to play.
A pull animal is a carved wooden toy shaped like an animal, such as a cow, water buffalo, or deer, with wheels attached in place of legs, for children to push and pull while playing.
This blueprint makes a real pull animal at the actual size given in the source.
Intermediate
About half a day
Instructions
1
1
Actual size
Actual size
Loading Jupyter Notebook...
2
2
Toys with wheels in the past
Toys with wheels in the past
Wooden pegged carts use curved wooden pegs as wheels. Animal wheels use round wooden disc wheels on an axle.
3
3
Read from source
Read from source
"Wheeled animals are toys carved from wood, modeled after various animals such as cows, water buffaloes, deer, etc., and fitted with wheels instead of legs." (Sirindhorn Anthropology Center, author not specified, CC BY 4.0)
4
4

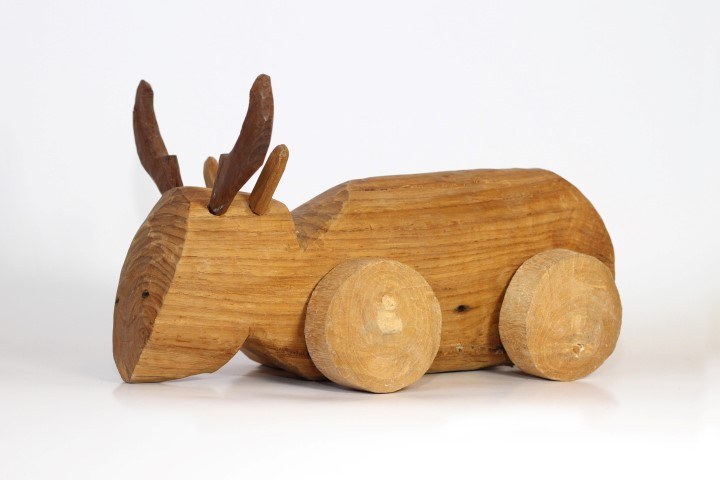

The animal itself
The animal itself
Cut a piece of wood about the size of your hand, roughly 3 cm wide, 12 cm long, and 3 cm thick. Draw a side view of the animal on the wood, use a knife to carve along the drawn shape, then sand it smooth with sandpaper. Drill holes in the sides of the body for the wheels, and drill holes where the ears, horns, and tail will go.

Materials for this step:
Hardwood Block1 pieceTools needed:
Pencil
Knife
Sandpaper5
5

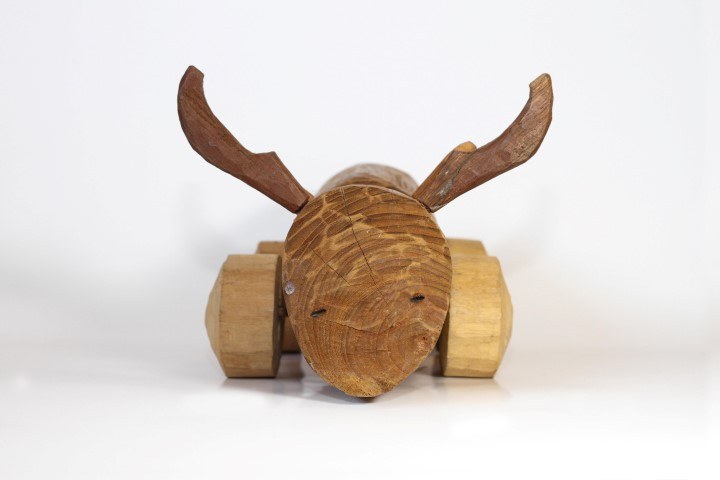

Wheel
Wheel
Cut wood into 4 round discs, 3 cm in diameter. Drill a hole in the center. Carve a round stick into an axle, making it smaller than the hole on the side of the animal. Insert the axle into the side hole, apply glue to the end of the axle, then push the wheel on firmly.

Materials for this step:
Wood Glue1 piece6
6

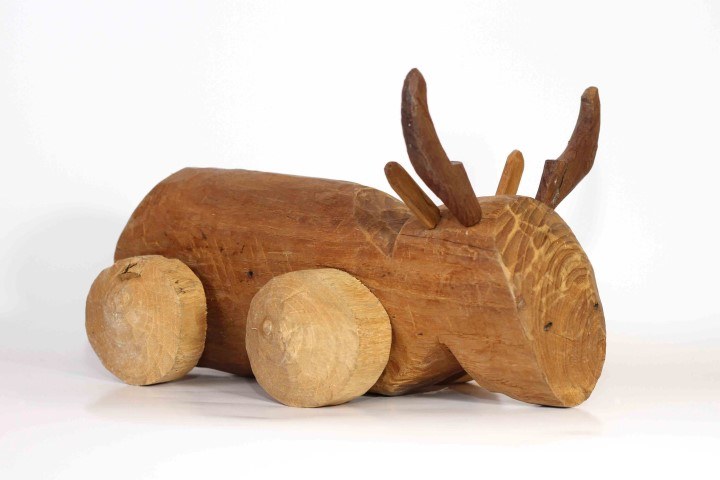

Decorate
Decorate
Attach ears, horns, and tail as you like

7
7

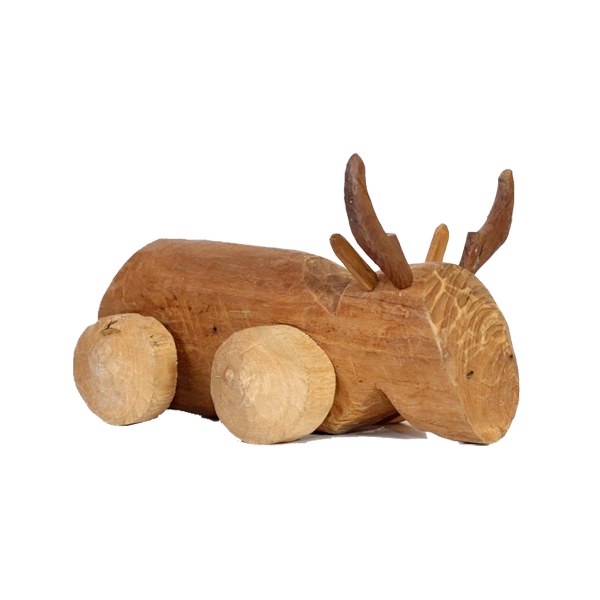

Real image
Real image
Real image of an animal (Sirindhorn Anthropology Center, unknown author, CC BY 4.0)



8
8
How to play
How to play
Use your hands to push the cart back and forth, or tie a rope to pull it along to play.

9
9
Troubleshooting
Troubleshooting
Wheel animal troubleshooting
Flow
Loading...
10
10
History and Limitations
History and Limitations
Animal wheels can be made from cattle, buffalo, deer, or other animals. Be careful with the knife while carving.
Source: Sirindhorn Anthropology Centre, Folk Tools and Implements Database "Sat Lor" (Animal wheel), author not specified (license CC BY 4.0)
**Limitations** The source does not provide the thickness of the wheel or the size of the hole.
