Steel Hand-Sewing Needles from Spring Wire

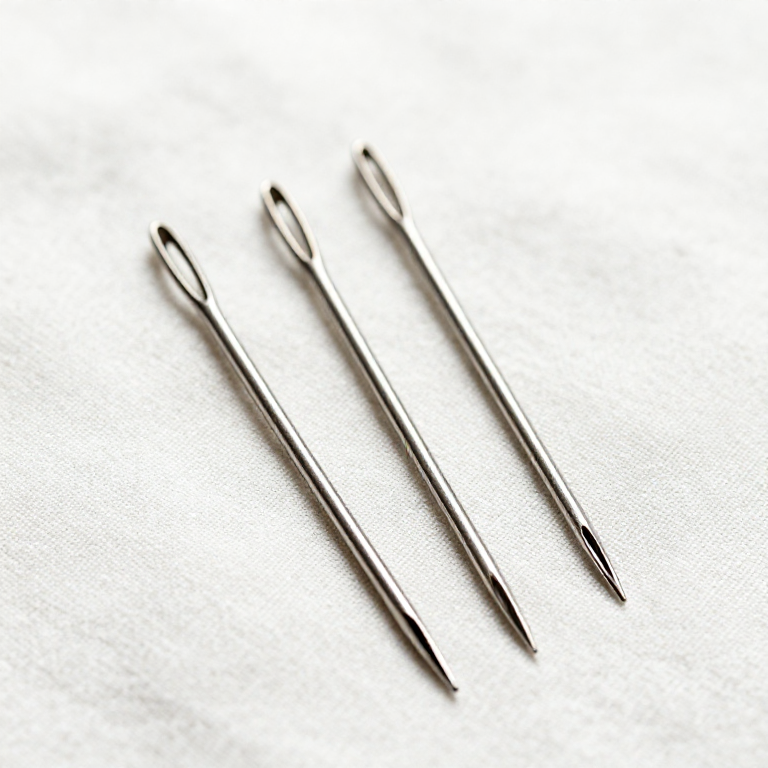

A needle is a short length of hard steel wire with a point at one end and an eye at the other. Made from annealed spring-steel wire, it is pointed and pierced while soft, then hardened and tempered so it flexes instead of snapping, and finally polished smooth so it slides through cloth.
Advanced
2 hours for a few needles

Instructions

1

Cut blanks

Cut annealed spring-steel wire about 1 mm thick into 5 cm lengths.

Materials for this step:

Spring Steel WireSpring Steel Wire0.5 meter

Tools needed:

HacksawHacksaw
Digital Caliper 6-InchDigital Caliper 6-Inch
2

Flatten the head

Tap one end flat on the anvil with the ball peen so it is wide enough to take an eye.

Tools needed:

AnvilAnvil
Ball Peen HammerBall Peen Hammer
3

Drill the eye

Clamp the blank in the vise and drill the flattened end with a fine bit in the pin vice. Shape the eye long with a needle file and smooth its edges.

Tools needed:

Bench ViseBench Vise
Pin VicePin Vice
Drill Bit SetDrill Bit Set
Needle File SetNeedle File Set
4

File the point

File the other end to a long, sharp, round point, turning the blank as you file.

Tools needed:

Needle File SetNeedle File Set
Pin VicePin Vice
5

Harden

Heat a needle held in tweezers until a magnet no longer sticks, and drop it straight into a lidded tin of oil.

Materials for this step:

Rapeseed OilRapeseed Oil0.5 liter

Tools needed:

Propane TorchPropane Torch
Fire BrickFire Brick
Fine-Tip TweezersFine-Tip Tweezers
MagnetMagnet
Metal Bucket with LidMetal Bucket with Lid
6

Temper

Clean it bright and heat it gently until it turns blue, as for springs. Let it cool.

Tools needed:

Propane TorchPropane Torch
Sandpaper SheetSandpaper Sheet
7

Polish

Polish the needle on fine paper and the whetstone until the point and eye are smooth to the touch.

Tools needed:

Sandpaper SheetSandpaper Sheet
WhetstoneWhetstone
8

Troubleshooting

Needle making troubleshooting.
