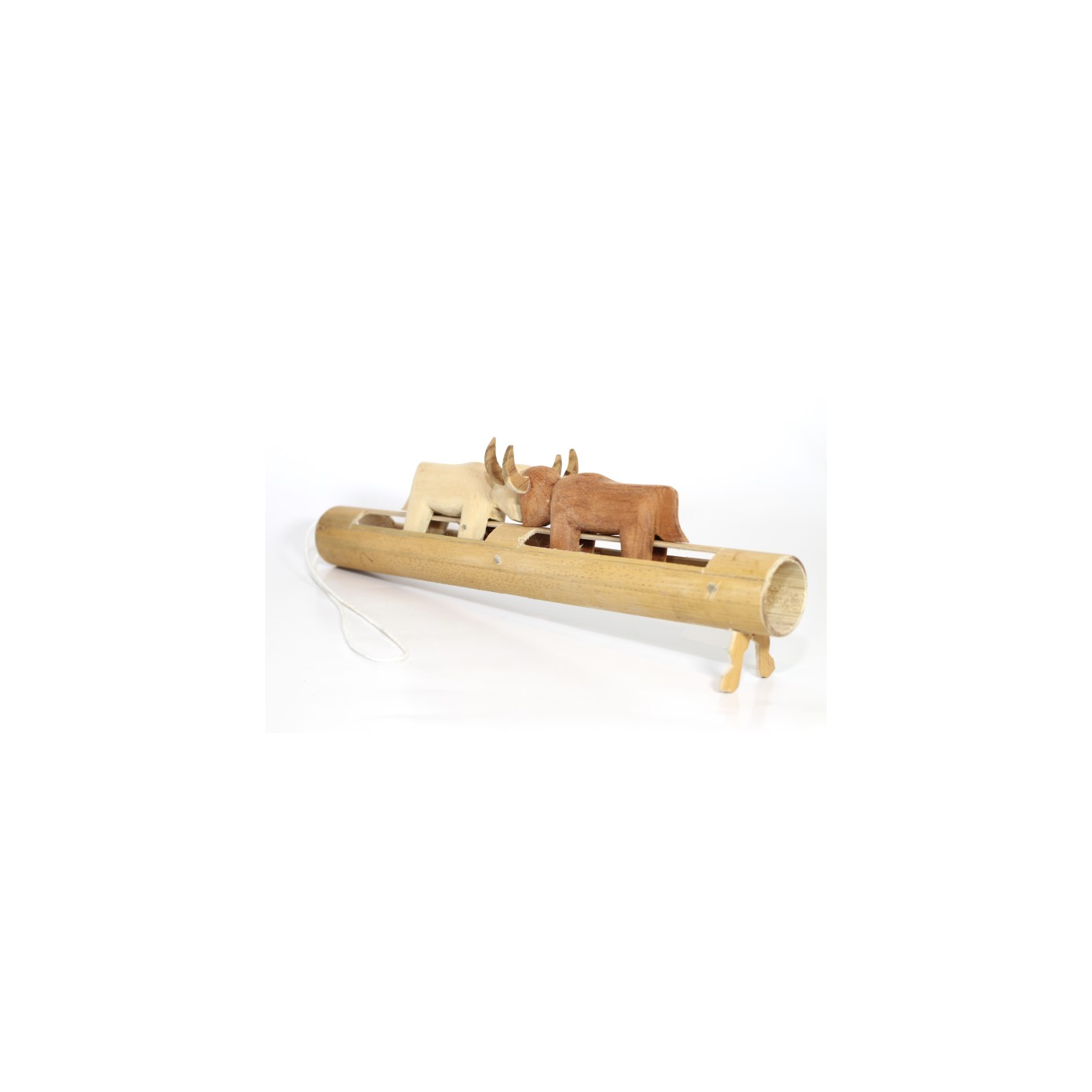

Fighting Cows — Bamboo base 30 cm, slots 1 × 4 cm, 4 slots; soft-wood cows 4 × 9 × 7 cm, 2 pieces; front leg pins; string 3 times longer and rubber band; pull the string and the cows run into each other.
English
NongMali

Created by

NongMali

7. October 2026TH
38
0
0
0
0

Fighting Cows — Bamboo base 30 cm, slots 1 × 4 cm, 4 slots; soft-wood cows 4 × 9 × 7 cm, 2 pieces; front leg pins; string 3 times longer and rubber band; pull the string and the cows run into each other.

Fighting cows (buffalo fighting) is a playable toy from Ban Pa Daet Museum. Developed from jumping animal toys, villagers designed it from the traditional folk sport of cow fighting, wanting to see two animals move and collide. Pull the string in and out and the cows run into each other. This blueprint makes a fighting cow at the actual size given in the source.
Advanced
About 1 day

Instructions

1

Actual size

Loading Jupyter Notebook...
2

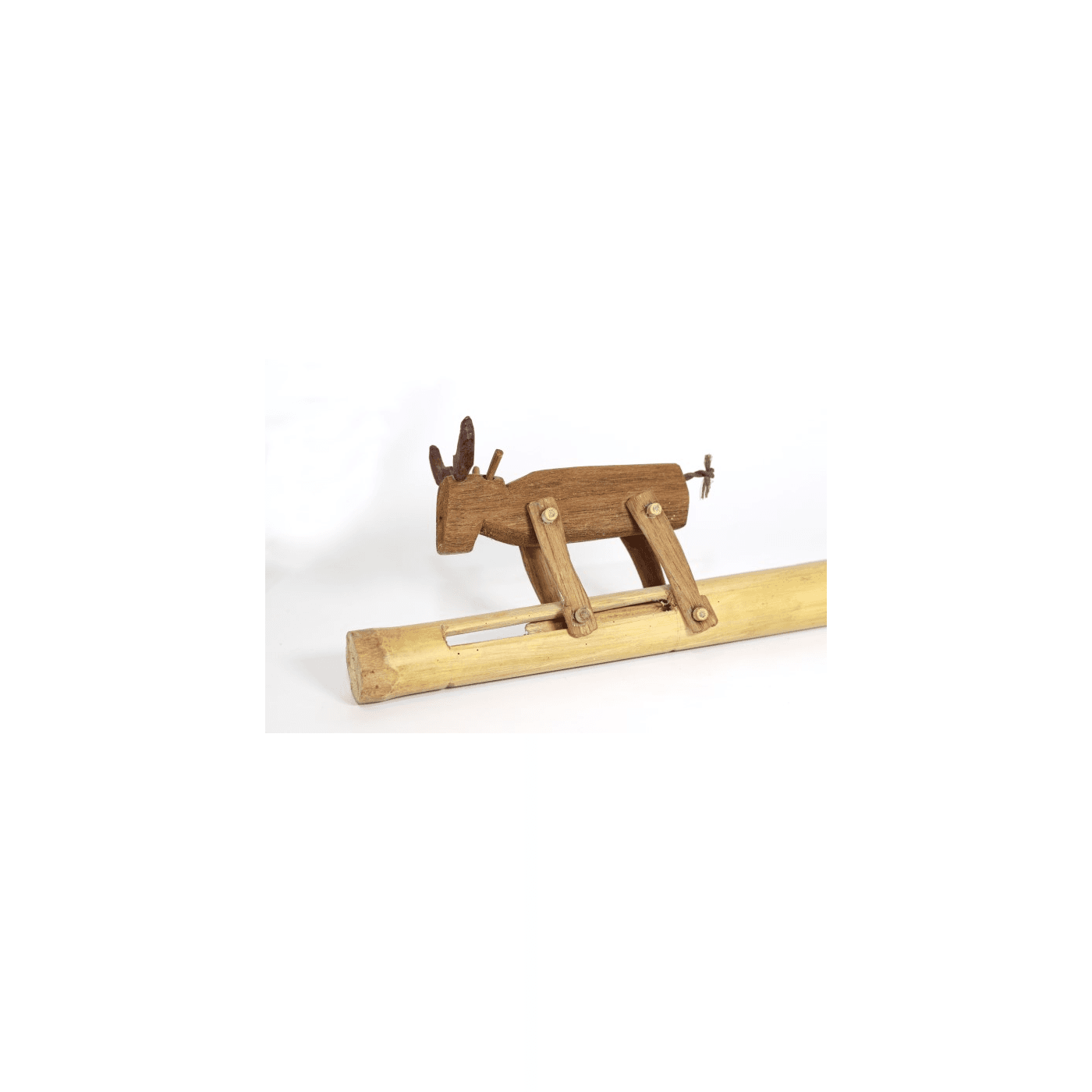

Prototype toy

The source states that the bull-fighting toy was developed from a jumping animal, using two animals and rope with rubber bands instead of a pulling stick.
3

Read from source

"Hold the tube and pull the string in and out with the other hand, and the animal will appear to be running into each other." (Sirindhorn Anthropology Center, author not specified, CC BY 4.0)
4

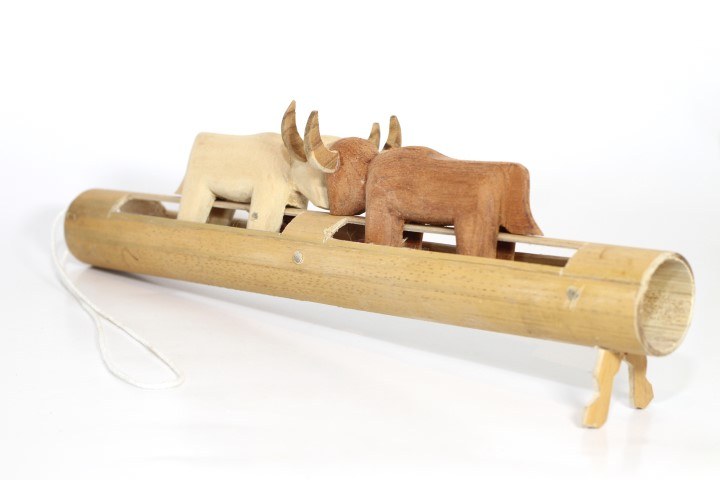

Base

Select a thick bamboo (long segments, not overly thick walls) about 30 cm long. Cut 4 slots about 1 cm wide and about 4 cm long for inserting the cows. Drill holes and insert bamboo pegs crosswise at 2 points, at the head and in the middle, for tying rope and rubber bands. Carve wooden legs to insert on the top 2 sides so it can stand upright without tipping over.
Step 4 - Image 1

Materials for this step:

Bamboo PolesBamboo Poles1 piece

Tools needed:

Hand SawHand Saw
KnifeKnife
5

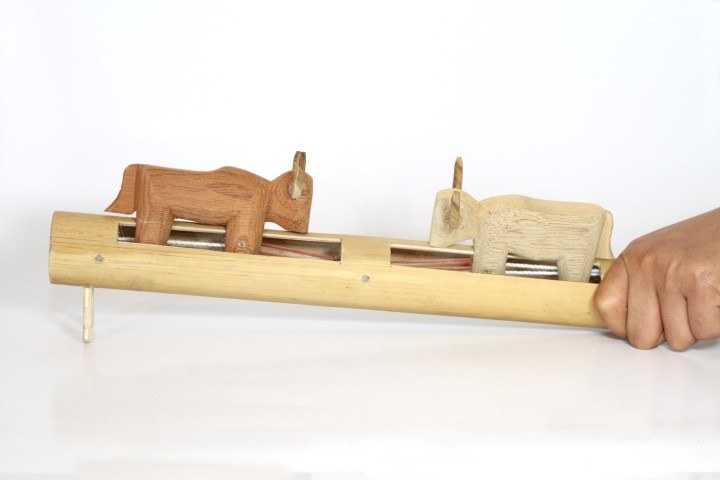

Cow body

Cut softwood into blocks about 4 cm wide, 9 cm long, and 7 cm high, and whittle them into the shape of a cow. You may use different colored woods to contrast. Drill a hole in the front leg of the cow, and fasten both cows to the base with wooden pegs.
Step 5 - Image 1
6

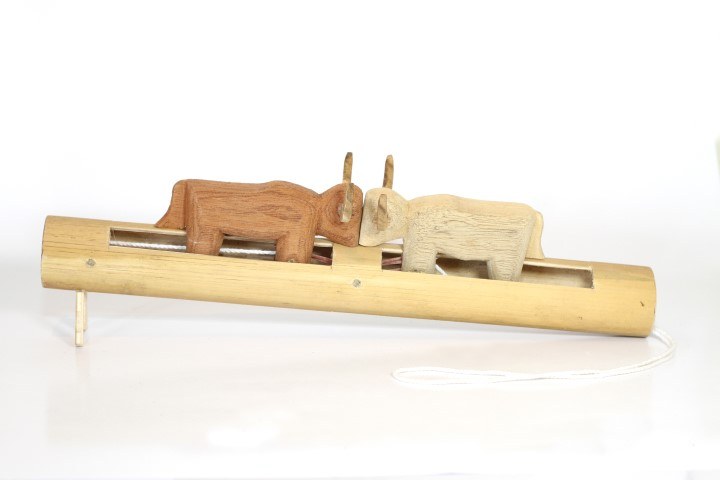

Mechanism

Cut a rope three times the length of the bamboo tube, thread it around the pivot point and loop it back to tie to one ox. Pass the other end through and tie it to the wooden peg of the other ox. Put a rubber band on another pivot point so the oxen can move.
Step 6 - Image 1

Materials for this step:

StringString1 piece
Rubber BandsRubber Bands1 piece

Tools needed:

ScissorsScissors
7

Actual image

Actual image of bullfighting (Sirindhorn Anthropology Center, author not specified, CC BY 4.0)
Step 7 - Image 1
Step 7 - Image 2
Step 7 - Image 3
8

How to play

Hold the tube, pull the rope in and out with the other hand, and the two cows will charge at each other.
Step 8 - Image 1
9

Troubleshooting

Cattle Collision Troubleshooting

Flow

Loading...
10

History and Limitations

Carving a wooden ox figure requires skill, and the tools must be sharp. Currently, only 1 person, aged 85, remains who can make this toy from the museum's collection. Be careful with knives and saws. Source: Sirindhorn Anthropology Centre, Folk Tools and Utensils Database "Wua Chon", author not specified (licensed under CC BY 4.0) **Limitations** The mechanical steps in the source refer to carving points 1.1 and 1.2 and oxen figures A, B, C, as shown in images that are not attached. Therefore, the stringing of the rope is written only according to the wording available. There is no product list for common softwood.

Materials

3

Tools Required

3
  • Placeholder
  • Placeholder
  • Placeholder

This blueprint makes

CC0 Public Domain

This blueprint is released under CC0. You are free to copy, modify, distribute, and use this work for any purpose, without asking permission.
