Condenser Worm: Copper Tube Coiled in a Water Tub

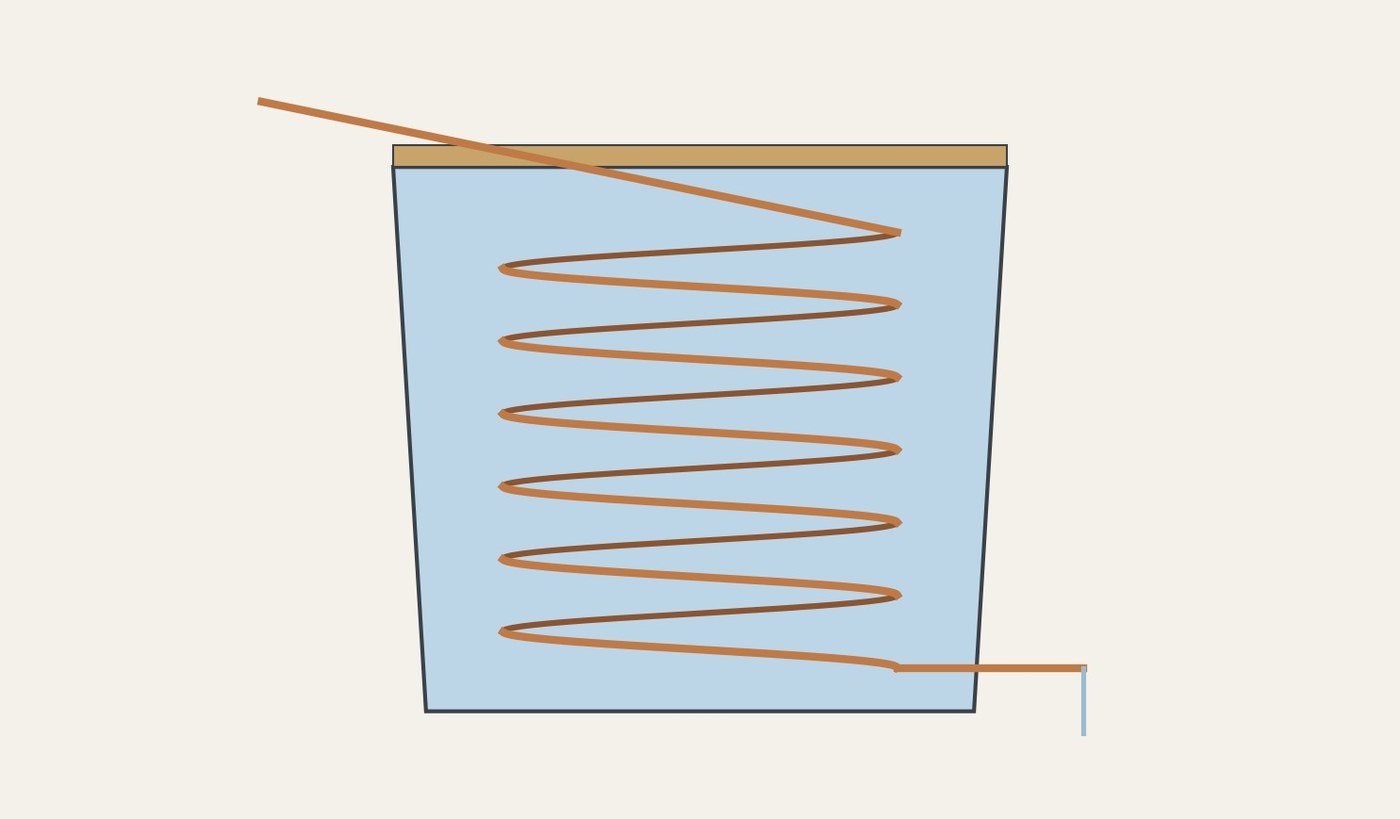

A still's vapour becomes liquid again in the worm: a copper tube coiled in a tub of cold water. Ure (1839) describes copper stills with a capital and worm, and retorts piped to a worm-tub. Fill copper tube with dry sand so it bends without kinking, wind it round a wooden drum with a steady fall, and set it in a tub with the outlet through the side near the bottom. The picture: our diagram, the worm in its tub, vapour in at the top and liquid out at the bottom.
