Fine-Tip Tweezers: One Steel Strip Bent and Spring-Tempered
Tweezers are two springy arms joined at one end: pressed, the tips close; let go, the spring opens them. They go back to predynastic Egypt. Make them from one strip of tool steel bent in half, temper it to a spring, and file the tips to fine needle points that meet exactly.

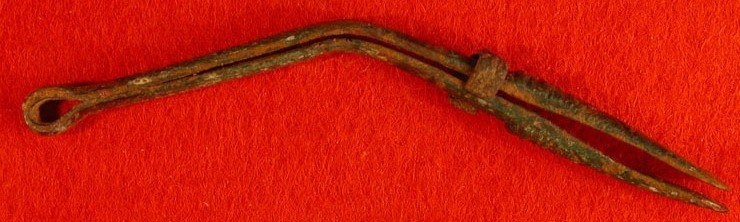

The picture: Roman tweezers, one strip bent at a loop, with a sliding ring.
Trung cấp
Half a day
Hướng dẫn
1
1
Draw the strip
Draw the strip
Draw tool steel to a strip about 8 mm wide, 0.8 mm thick and 21 cm long (our size), tapering both ends.
Vật liệu cho bước này:
Thanh thép dụng cụ dẹt1 cái
Than củi1 as requiredCông cụ cần thiết:
Lò rèn của thợ rèn
Đe
Búa đầu nêm ngang
Kìm rèn2
2
Bend it in half
Bend it in half
Anneal, then bend the strip in half round a small rod so the arms spring apart with the tips about 6 mm open. Square the arms in the vise.
Công cụ cần thiết:
Ê tô bàn nguội
Búa đầu nêm ngang
Lò rèn của thợ rèn3
3
Shape the tips
Shape the tips
File the ends to long, fine points with the needle files, and dress the inner faces so the tips meet along the last few millimetres. Check under the loupe.
Công cụ cần thiết:
Bộ giũa kim
Giũa kim loại
Kính lúp thợ kim hoàn4
4
Harden and spring-temper
Harden and spring-temper
Heat to cherry red and quench in oil, polish, then temper to blue so the arms spring back (our temper).
Công cụ cần thiết:
Lò rèn của thợ rèn
Thùng tôi nước
Dầu cắt gọt
Kìm rèn5
5
Finish the points
Finish the points
Hone the tips lightly on the stone and check that they close evenly without crossing.
Công cụ cần thiết:
Đá mài hạt 1000
Kính lúp thợ kim hoàn6
6
Closing force
Closing force
Đang tải sổ tay Jupyter…
