Needle File Set: Six Small Files Cut by Hand

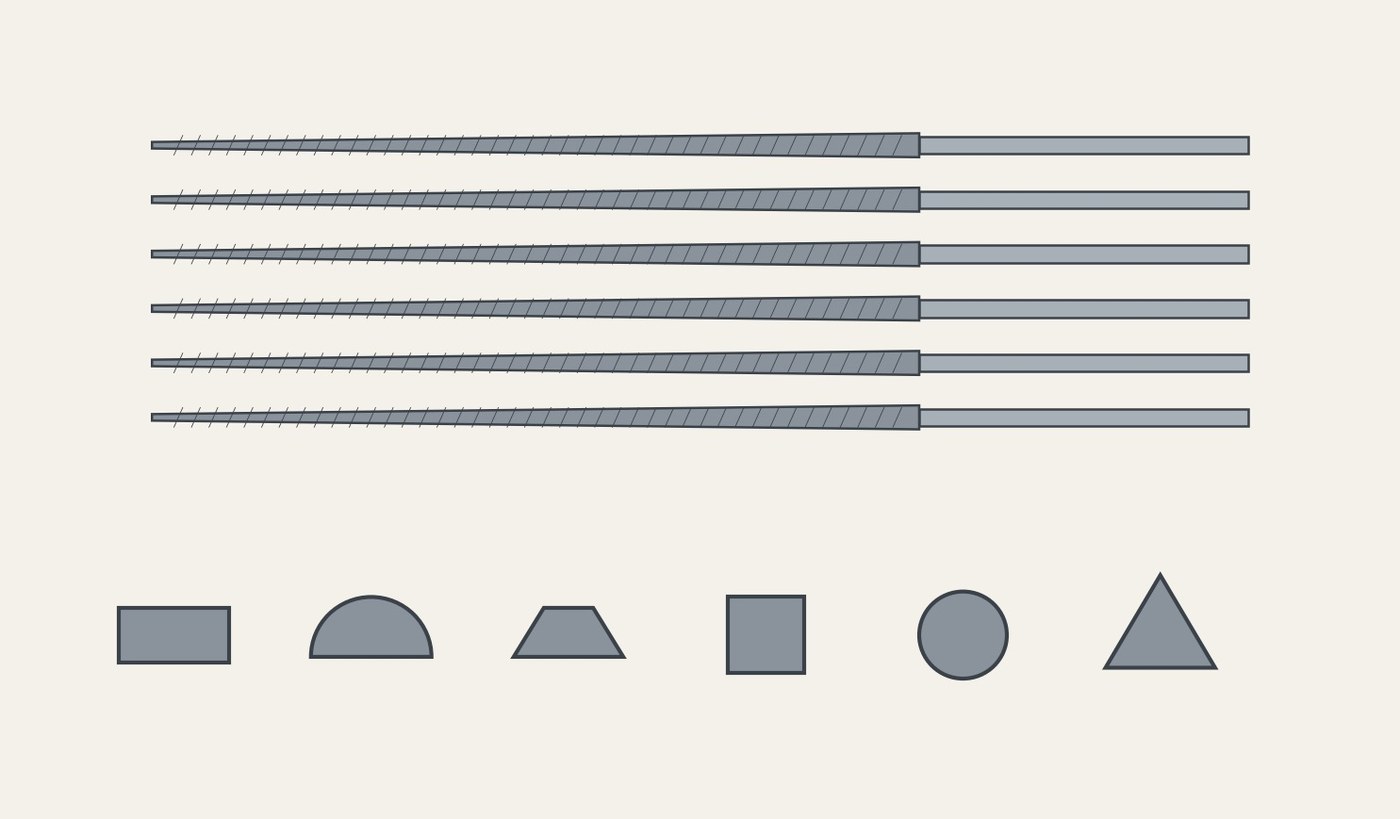

Needle files are small files for fine work, where a good finish matters more than speed, sold in sets of shapes: pillar, half round, barrette, square, round and triangular. They are made like any file, only smaller and with finer teeth: forged, annealed, cut tooth by tooth with a chisel, and hardened in brine. The picture: our diagram, six tapered needle files and their cross-sections.
Nâng cao
Three days

Hướng dẫn

1

Forge six blanks

Draw tool steel to six thin blanks, each with a tapered part for the teeth and a round handle part. Shape the sections in the swage block: pillar (narrow flat), half round, barrette, square, round and triangular.

Vật liệu cho bước này:

Thanh thép dụng cụ bát giácThanh thép dụng cụ bát giác0.15 kg
Than củiThan củi2 as required

Công cụ cần thiết:

Lò rèn của thợ rènLò rèn của thợ rèn
ĐeĐe
Búa đầu nêm ngangBúa đầu nêm ngang
Khối tạo hình có lỗKhối tạo hình có lỗ
Kìm rènKìm rèn
Găng tay hànGăng tay hàn
Kính bảo hộKính bảo hộ
2

Anneal and true

Anneal the blanks: no hotter than blood red, cooled very slowly out of the air. Grind and file the faces true, or the teeth will not be even.

Công cụ cần thiết:

Lò rèn của thợ rènLò rèn của thợ rèn
Bánh đá màiBánh đá mài
Giũa kim loạiGiũa kim loại
3

Cut the teeth

Raise fine teeth with the file-cutting chisel, one blow and a small even step at a time, under a loupe. Turn each blank on the pewter plate to cut the next face. On the barrette cut only the flat face; leave the other sides smooth (safe).

Công cụ cần thiết:

Đục khắc giũaĐục khắc giũa
Búa đầu nêm ngangBúa đầu nêm ngang
ĐeĐe
Tấm pewterTấm pewter
Kính lúp thợ kim hoànKính lúp thợ kim hoàn
4

Harden, do not temper

Heat each file evenly to its hardening heat and plunge it into cold brine. Then reheat the handle part alone so it is not glass-hard.

Vật liệu cho bước này:

MuốiMuối0.5 kg
NướcNước5 lít

Công cụ cần thiết:

Lò rèn của thợ rènLò rèn của thợ rèn
XôXô
Kìm rènKìm rèn
Găng tay hànGăng tay hàn
Kính bảo hộKính bảo hộ
5

Steel for a set of six
