Forge Hearth of Mud Brick with a Clay Tuyere from the Back Wall

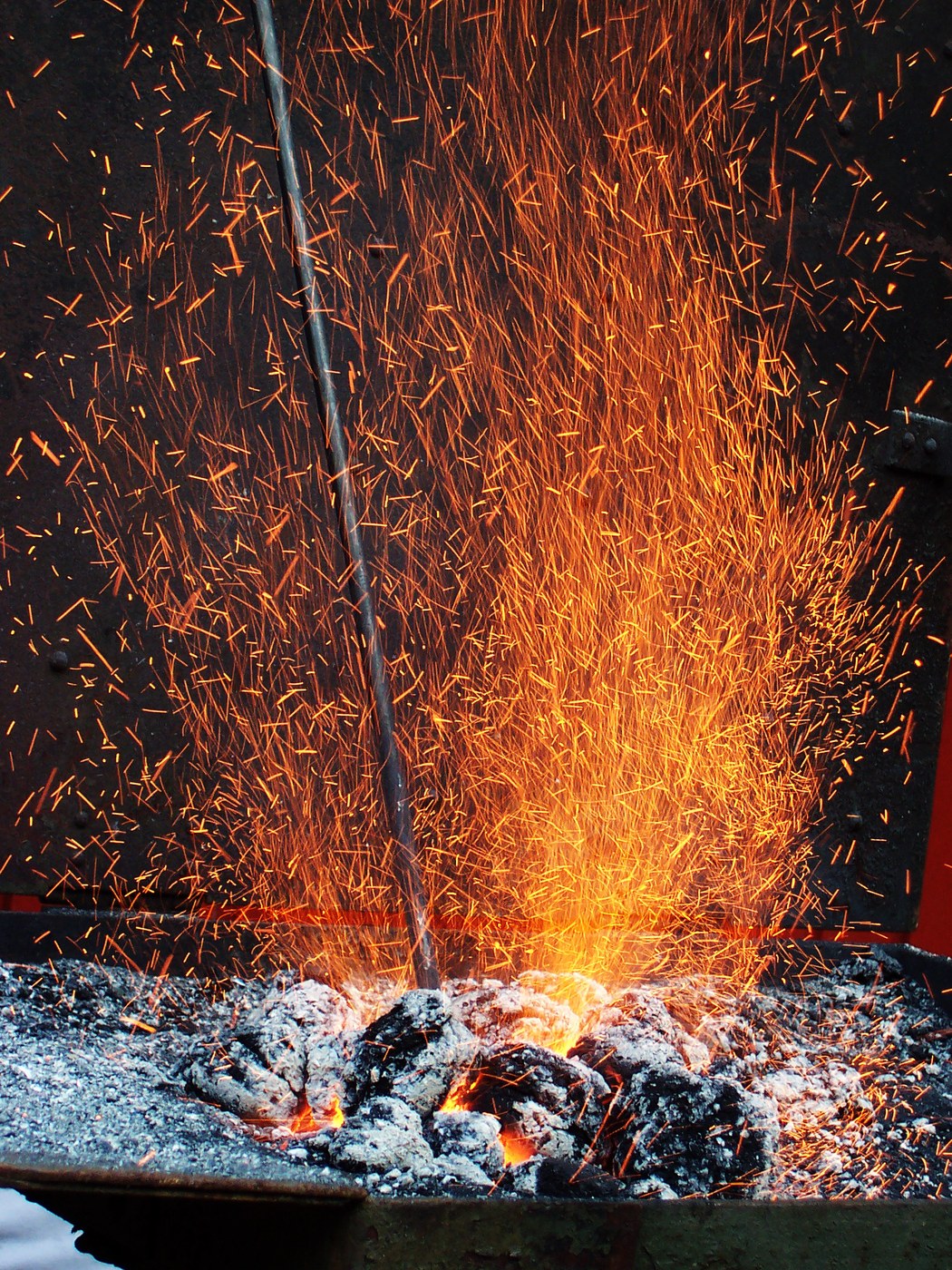

A forge is a hearth for heating metal: a bed of burning charcoal held against the mouth of a tuyere, the pipe that brings air from the bellows. The simplest is a hole in the ground with a pipe leading into it. Build a low box of mud brick with a clay pipe through the back wall, blown by bellows. The picture: a forge fire blown hot, throwing sparks.
Cơ bản
Two days

Hướng dẫn

1

Lay the box

On level ground, lay mud bricks in clay mortar into a low open box, three courses high, with a shallow fire pot in the middle (step 5).

Vật liệu cho bước này:

Gạch bùn phơi nắngGạch bùn phơi nắng32 cái
Đất sétĐất sét20 kg

Công cụ cần thiết:

XẻngXẻng
NướcNước
Xô kim loạiXô kim loại
2

Make the tuyere

Roll a thick clay pipe round a wooden stick, about 4 cm bore (ours), and pull the stick out. Set it through the back wall so it opens just above the fire pot, and bed it in clay.

Vật liệu cho bước này:

Đất sétĐất sét3 kg

Công cụ cần thiết:

Trục gỗ thẳngTrục gỗ thẳng
3

Dry and connect

Let the clay dry for a day or two. Join the bellows nozzle to the outer end of the clay pipe.

Công cụ cần thiết:

Bễ thổiBễ thổi
4

Light the forge

Light kindling from a bow-drill ember in the fire pot, heap charcoal over it in front of the tuyere and blow gently until the bed glows.

Vật liệu cho bước này:

Lá khô và củi mồiLá khô và củi mồi1 cái

Công cụ cần thiết:

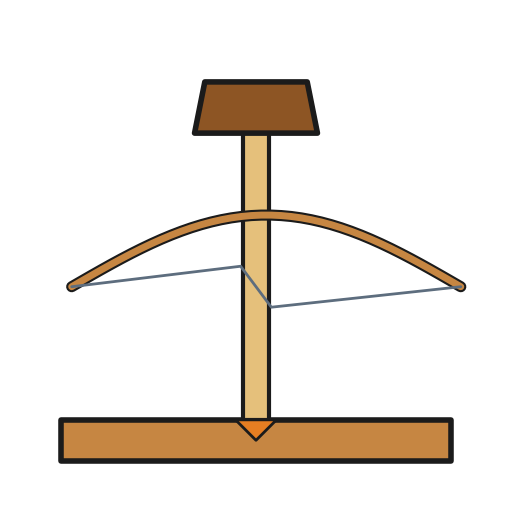

Khoan cungKhoan cung
Than củiThan củi
Bễ thổiBễ thổi
Găng tay da bảo hộGăng tay da bảo hộ
5

Bricks for the hearth

Đang tải sổ tay Jupyter…
