Wire Cutters: Diagonal Pliers Forged with Hardened V-Edged Jaws

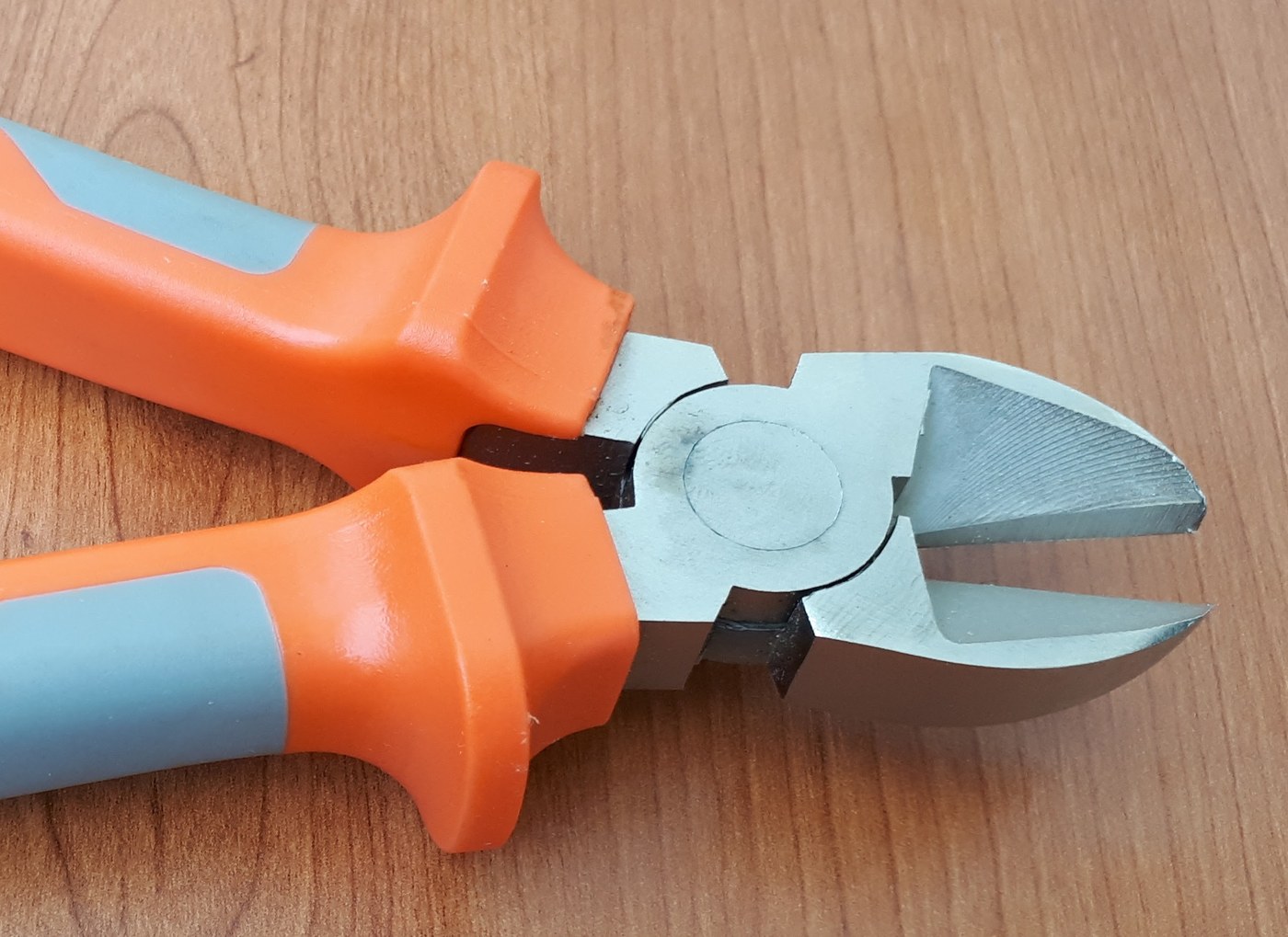

Diagonal pliers cut wire by pressing two V-shaped edges into it until it splits, not by shearing like scissors. The edges sit at an angle to the joint rivet, which gives them their name, and the jaws must be hardened or steel wire dents them. Forge two halves from tool steel, rivet them, grind the edges and harden the jaws. The picture: the jaws and joint of a modern pair; its handles are dipped in plastic, ours are bare steel.
Nâng cao
Two days

Hướng dẫn

1

Forge the halves

Forge two mirror halves from tool steel: a short, thick jaw set at an angle, a flat boss for the joint, and a handle (our sizes: jaw 18 mm, handle 120 mm from the joint).

Vật liệu cho bước này:

Thanh thép dụng cụ bát giácThanh thép dụng cụ bát giác0.3 kg
Than củiThan củi2 as required

Công cụ cần thiết:

Lò rèn của thợ rènLò rèn của thợ rèn
ĐeĐe
Búa đầu nêm ngangBúa đầu nêm ngang
Kìm rènKìm rèn
Găng tay hànGăng tay hàn
Kính bảo hộKính bảo hộ
2

Anneal and fit the joint

Anneal both halves. File the bosses flat so they lap closely, drill them together and rivet them so the jaws close without play.

Vật liệu cho bước này:

Đinh tán thépĐinh tán thép1 cái

Công cụ cần thiết:

Lò rèn của thợ rènLò rèn của thợ rèn
Giũa kim loạiGiũa kim loại
Khoan tayKhoan tay
Ê tô bàn nguội hạng nặngÊ tô bàn nguội hạng nặng
Búa đầu nêm ngangBúa đầu nêm ngang
ĐeĐe
3

Grind the edges

Grind each jaw to a symmetrical V so the two edges meet along their whole length when closed. Check against the light.

Công cụ cần thiết:

Bánh đá màiBánh đá mài
Giũa kim loạiGiũa kim loại
4

Harden the jaws

Heat the jaws only to cherry red and quench in water. Polish them bright, then warm the joint and let the colour run to the edges; quench at straw (our temper).

Vật liệu cho bước này:

NướcNước10 lít

Công cụ cần thiết:

Lò rèn của thợ rènLò rèn của thợ rèn
Thùng tôi nướcThùng tôi nước
Kìm rènKìm rèn
Găng tay hànGăng tay hàn
Kính bảo hộKính bảo hộ
5

Hone and test

Hone the edges lightly on the stone and try them on soft copper wire first. A dent in the edge means the jaw is too soft.

Công cụ cần thiết:

Đá mài hạt 1000Đá mài hạt 1000
6

Force at the edges

Đang tải sổ tay Jupyter…

Vật liệu

4

Công cụ yêu cầu

12
