Distilled Water on the Stovetop

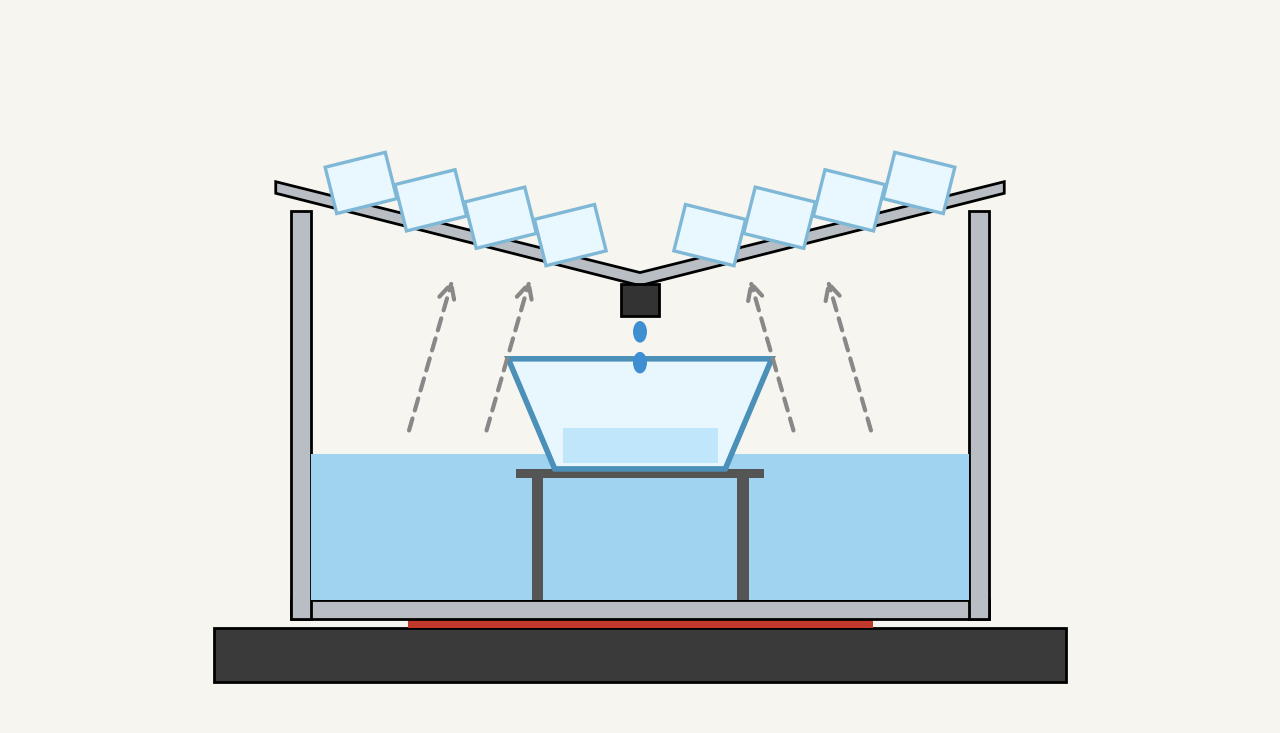

Boil tap water in a covered pot and catch the steam that condenses on the cold, upturned lid. The steam leaves the dissolved salts and minerals behind, so the drops that fall into a bowl in the middle are distilled water: for steam irons, lead-acid batteries, chemistry, humidifiers and topping up anything that must not scale.
It is slow and uses a lot of energy for little water. The notebook shows why, and how to measure your own stove.
शुरुआती
About 2 hours
निर्देशनहरू
1
1
Why it takes so much energy
Why it takes so much energy
Jupyter नोटबुक लोड हुँदैछ…
2
2
Set up the pot
Set up the pot
Stand a trivet in the stockpot and a glass bowl on it. Pour tap water around the bowl to about 5 cm below the bowl's rim, about 4 litres; none may splash into the bowl.
यस चरणका सामग्री:
पानी4 लिटरचाहिने औजार:
ठूलो भाँडो
तातो भाँडो राख्ने स्ट्यान्ड
सिसाको कचौरा3
3
Turn the lid over
Turn the lid over
Put the lid on upside down, handle down, so it slopes to its centre over the bowl. Steam will condense on its underside and run to the handle and drip into the bowl.
चाहिने औजार:
ठूलो भाँडो4
4
Simmer
Simmer
Heat until the water simmers, then turn down so it keeps a gentle simmer. A hard boil throws spray into the bowl. Start the stopwatch at the first drip.
चाहिने औजार:
तताउने प्लेट
रोकघडी5
5
Ice on the lid
Ice on the lid
Fill the upturned lid with ice. The colder lid condenses more steam. When the ice has melted, ladle the meltwater off with oven gloves on and add fresh ice.
यस चरणका सामग्री:
बरफका टुक्रा1 केजीचाहिने औजार:
डाडु
ताप सहने पन्जा6
6
Stop before it runs dry
Stop before it runs dry
Stop while at least 3 cm of water is left in the pot: what stays behind holds all the salts. Turn off the heat, let it cool 10 minutes, and lift the lid away from you; steam scalds.
चाहिने औजार:
ताप सहने पन्जा7
7
Weigh and test
Weigh and test

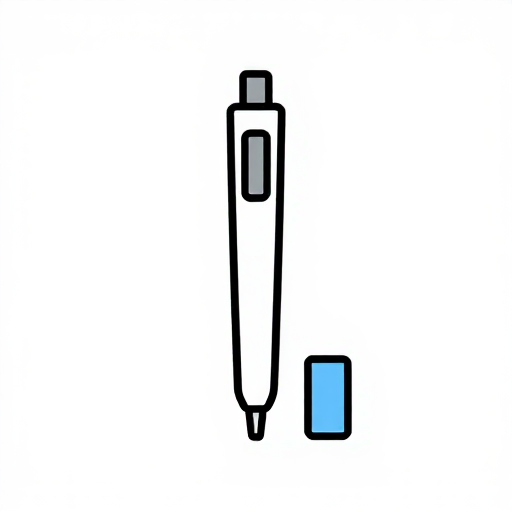

Weigh the distillate and note the time. Read a sample of the tap water and of the distillate with a TDS meter: the distillate should read far lower. Enter your numbers in the notebook.
चाहिने औजार:
डिजिटल भान्साको तराजुरोकघडी
TDS नापक8
8
Store it
Store it
Pour it into a clean glass jar with a lid and label it. Throw away the water left in the pot.
चाहिने औजार:
बिर्को भएको सिसाको भाँडो9
9
Troubleshooting
Troubleshooting
Stovetop distillation troubleshooting.
Flow
Loading...
10
10
What it removes, and what it does not
What it removes, and what it does not
Distillation leaves dissolved salts, minerals and most dirt behind in the pot. Substances that boil at or below water's boiling point can travel with the steam, so it is not a guaranteed way to remove solvents or fuels from contaminated water. Laboratory stills use the same principle with a water-cooled condenser, which is faster and uses less ice.
