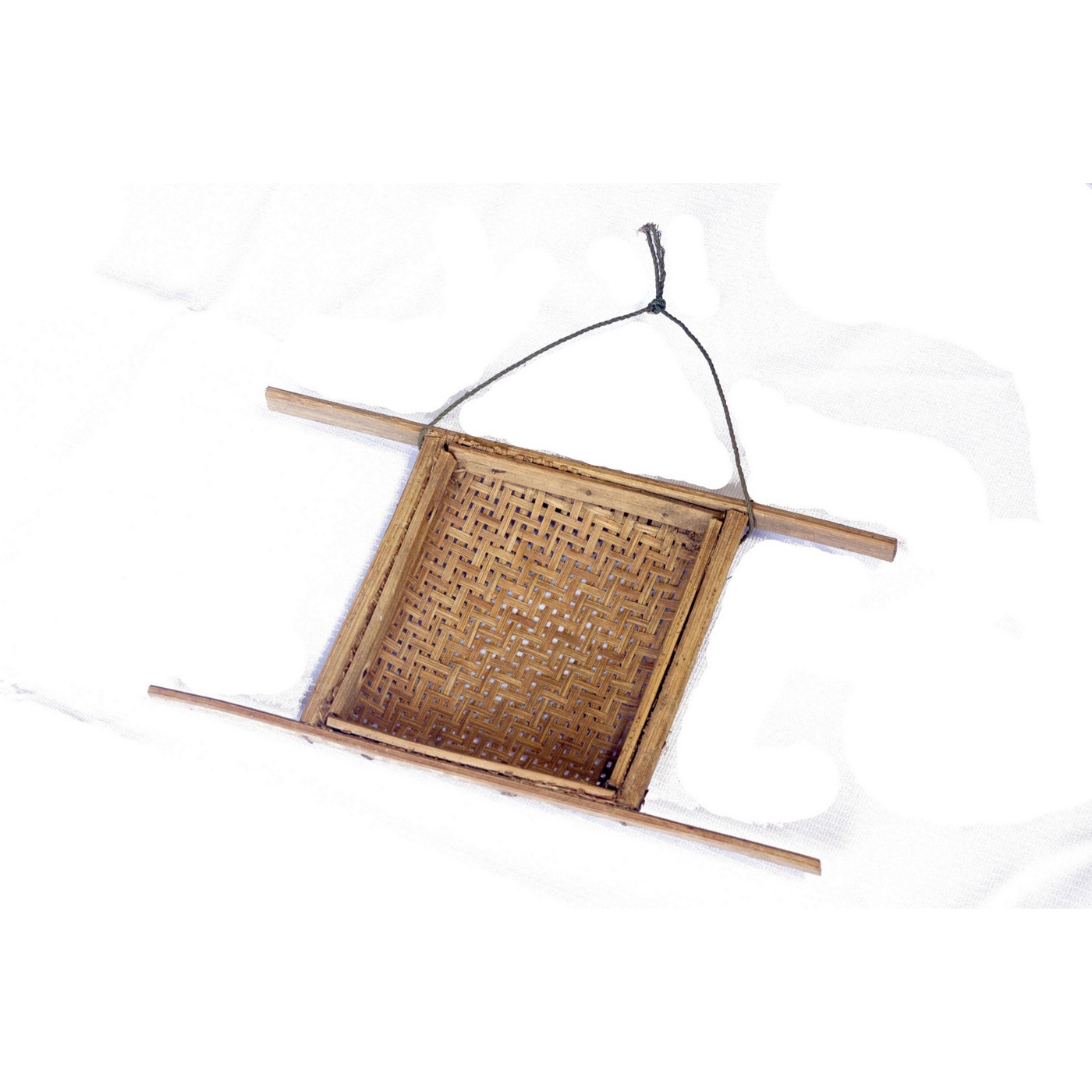

Krachon — a Fine-Woven Bamboo Strainer with Long Handles to Rest Across a Pot, for Coconut Milk and Pla Ra
กระชอน (krachon) is an open-weave basketry tool, woven from fine bamboo strips crossed so as to leave small holes, stretched on a rim of bamboo, rattan or wood. It is made round or square, with long handles sticking out for resting it across the mouth of a pot or bowl, and for holding.
This blueprint makes a round krachon following the source.
Intermediate
About 1 day
Instructions
1
1
Hole size
Hole size
Loading Jupyter Notebook...
2
2
The step before for coconut milk
The step before for coconut milk
The coconut grater scrapes the coconut flesh; the krachon strains the coconut milk squeezed from it.
3
3
Read from the source
Read from the source
"The krachon is a basketry tool of open-holed form, woven from fine bamboo strips crossed so as to leave small holes all over, stretched on a rim of bamboo, rattan or wood, made both round and square, with long handles sticking out for resting across the mouth of a pot or bowl to catch the coconut milk." (Sirindhorn Anthropology Centre, author พิชชา ทองขลิบ (Phitcha Thongkhlip), CC BY 4.0)
4
4
Split the strips
Split the strips
Split bamboo and shave it into thin, fine strips of even size, scraped smooth with no splinters.
Materials for this step:
Bamboo Poles1 pieceTools needed:
Machete
Knife5
5
Weave the mesh
Weave the mesh
Weave the fine strips crosswise into a sheet, leaving small holes all over, a little larger than the rim.
Tools needed:
Knife6
6
Rim and handles
Rim and handles
Bend bamboo into a circle as the rim and stretch the woven sheet tight on it. Shave long bamboo pieces as handles sticking out on two sides, long enough to rest across a pot or bowl, and bind them firmly.
Materials for this step:
Bamboo Poles1 piece
Jute Twine1 pieceTools needed:
Knife
Hand Saw7
7

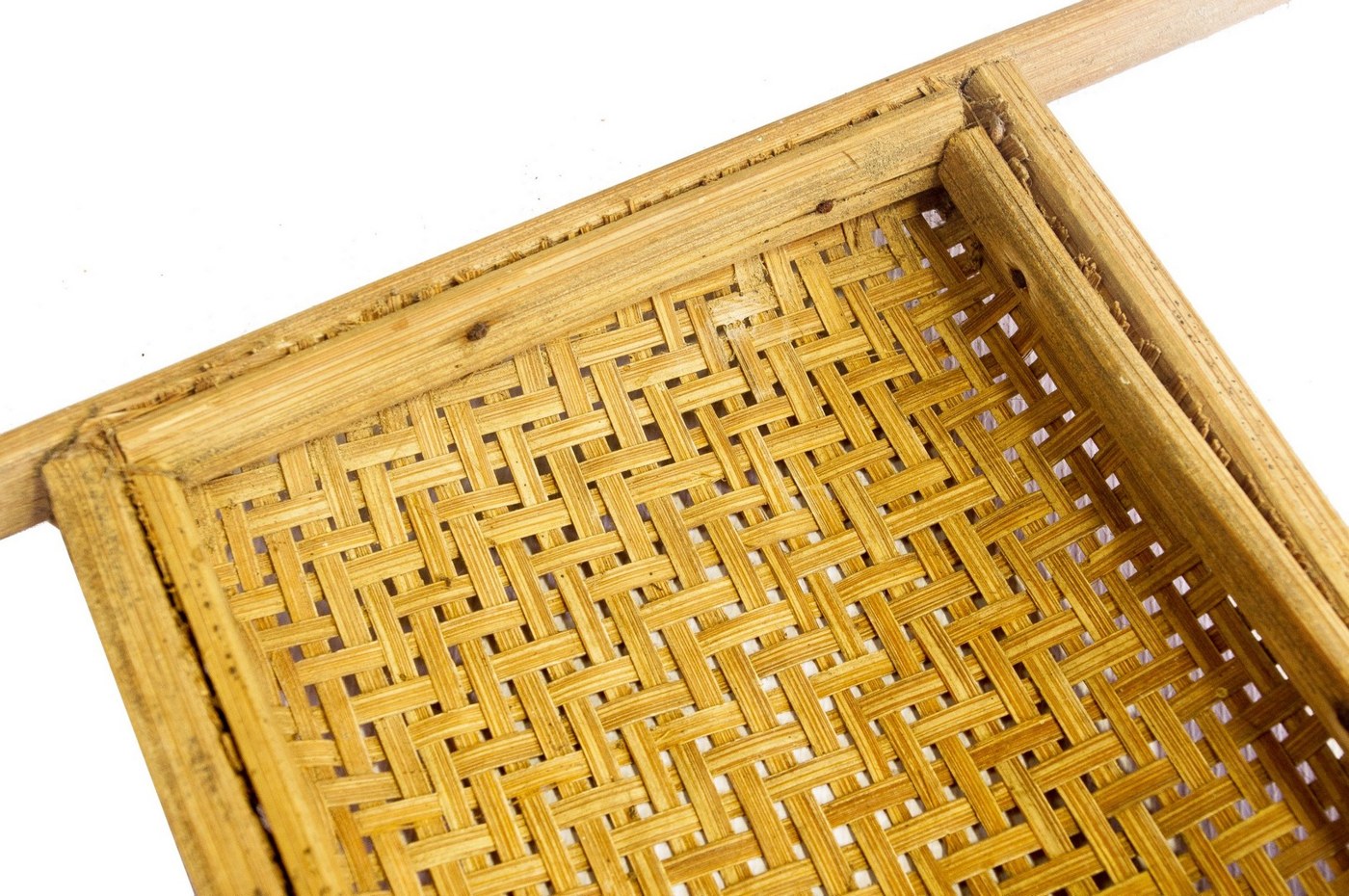

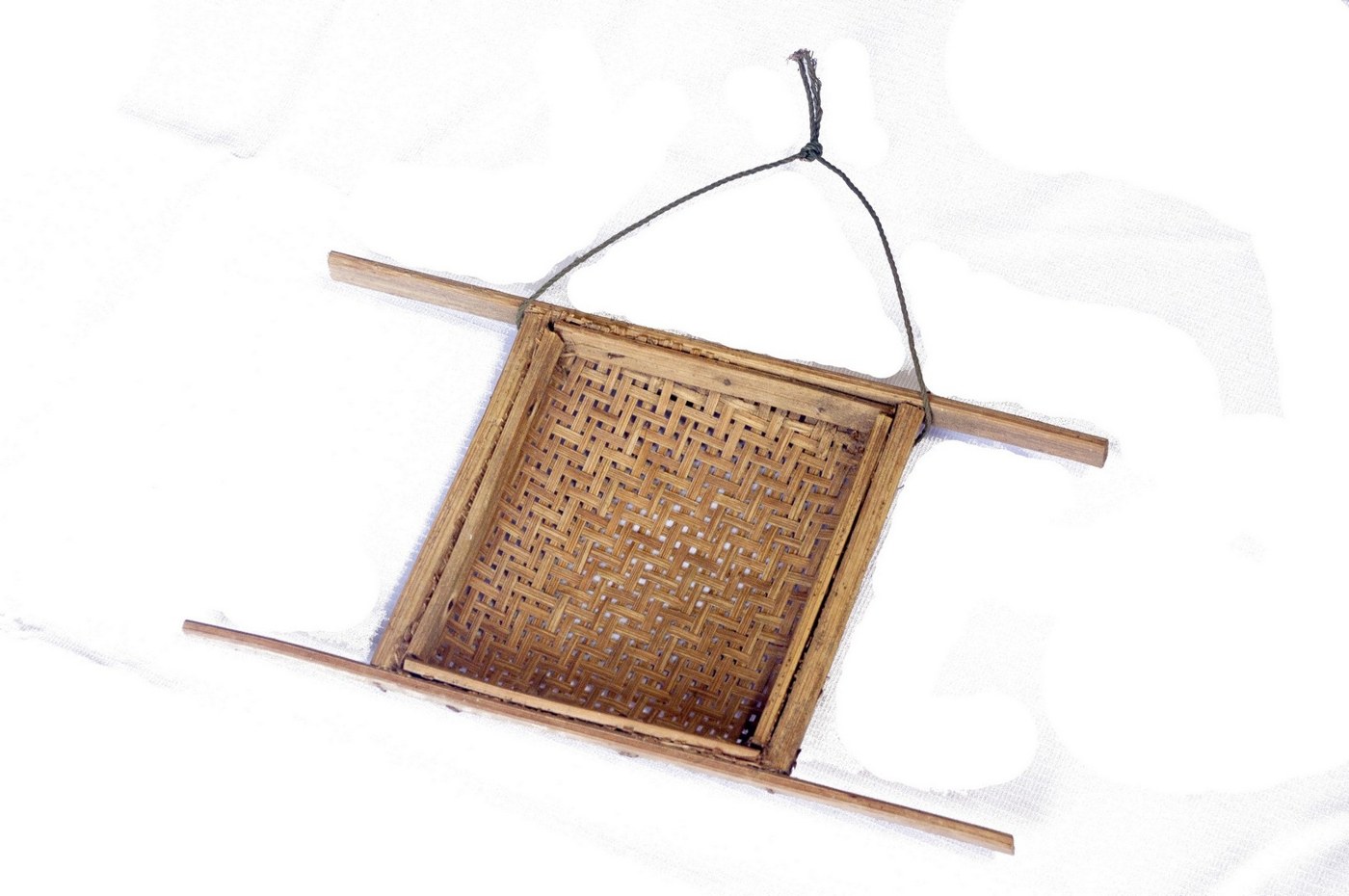

Real photos
Real photos
Real photos of a กระชอน (krachon) from พิพิธภัณฑ์พื้นบ้านหนองบัวโคก (Nong Bua Khok Folk Museum) (Sirindhorn Anthropology Centre, author พิชชา ทองขลิบ (Phitcha Thongkhlip), CC BY 4.0)


8
8
How to use
How to use
Rest the krachon across the mouth of a pot or bowl and pour coconut milk or pla ra liquid through it; the residue stays on the krachon. It is also used for sifting, scooping shrimp, crabs and fish, or drying small seeds.

Materials for this step:
Coconut1 piece9
9
Troubleshooting
Troubleshooting
Troubleshooting the krachon.
Flow
Loading...
10
10
History and limits
History and limits
Other name: takraeng. In Isan cooking coconut milk is little used, so the takraeng or krachon is used more for straining pla ra (fermented fish) liquid.
Source: Sirindhorn Anthropology Centre, database of traditional everyday objects, "กระชอน", author พิชชา ทองขลิบ (licence CC BY 4.0), from the Nong Bua Khok Folk Museum, Buriram.
**Limits.** The source gives no size or weave pattern; the sizes in the model are examples. We use jute twine instead of rattan to bind the handles.
Materials
3- 1 piecePlaceholder
- 1 piecePlaceholder
- 1 piecePlaceholder
