Woven Glass Fibre Cloth, Style 112: Plain Weave of E-glass Yarn
Thin glass cloth is the skeleton of resin laminates. This is Type I (commercial style 112) of the US standard MIL-C-9084C (1970): a plain weave of E-glass yarn ECD 450-1/2 both ways, at least 39 by 38 yarns per inch, 0.0030–0.0050 in thick, 38 in wide. Woven, it is greige cloth; its finish must make it bond to the resin it goes into (epoxy for Class 2).

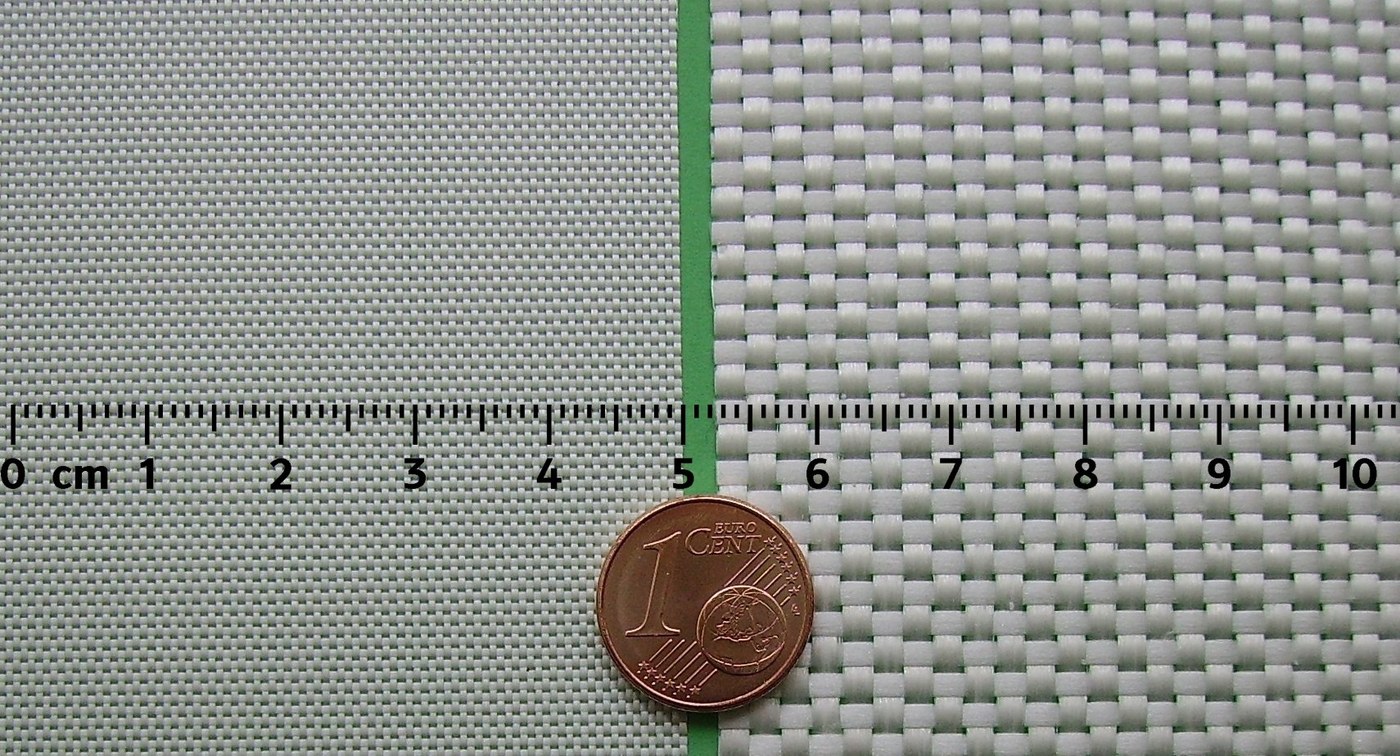

The picture: two plain-woven glass fabrics, 220 and 550 g/m², heavier than style 112 (Cjp24, Wikimedia Commons, public domain).
Intermediate
2 days
Instructions
1
1
Wind the warp
Wind the warp
Warp with yarn ECD 450-1/2, at least 39 ends per inch across a width of 38 in including the selvages (about 1,480 ends; ours, from 39 × 38). Ours: a warping frame and floor loom.
Materials for this step:

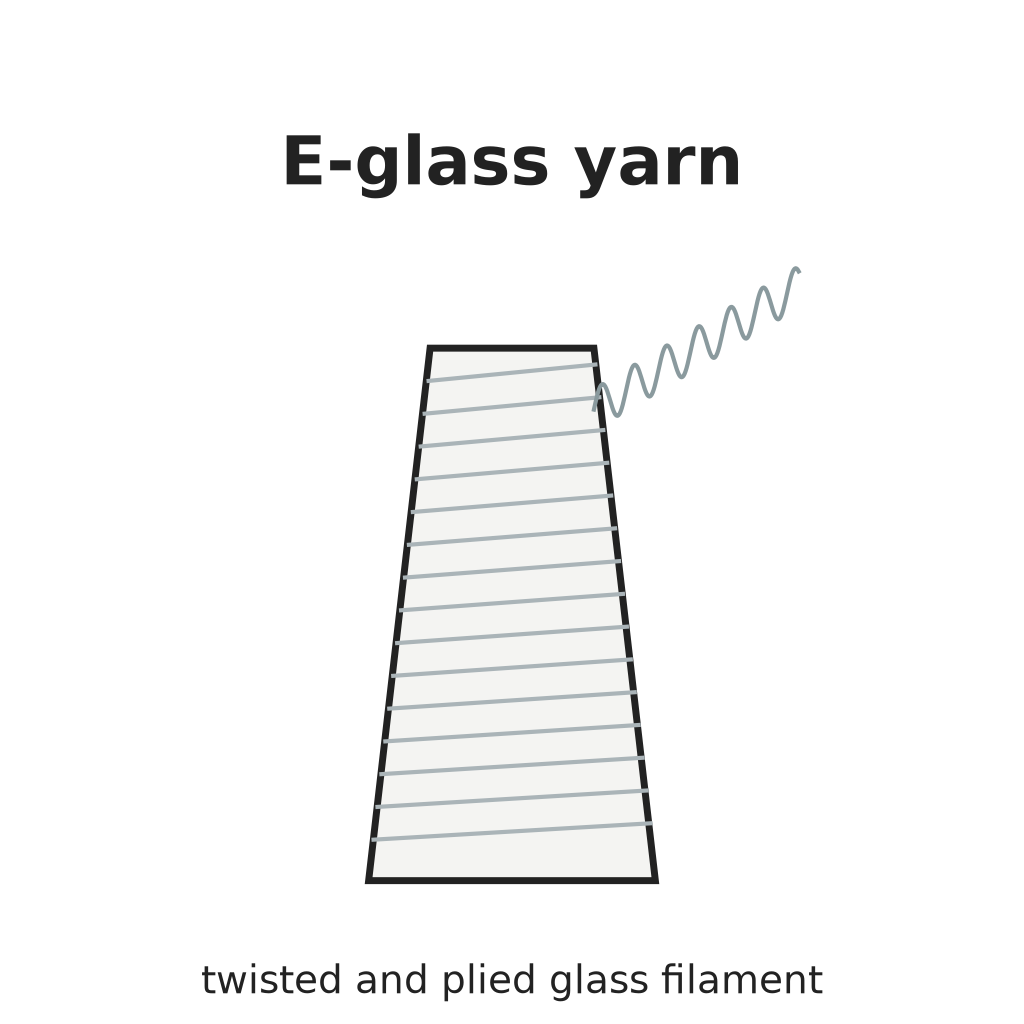

E-glass Yarn1 as requiredTools needed:
Warping Frame
Floor Loom
Rubber Gloves2
2
Weave plain, 38 picks per inch
Weave plain, 38 picks per inch
Weave plain (over one, under one) with the same yarn as filling, at least 38 picks per inch (15 per cm). Ours: a boat shuttle.
Tools needed:
Floor Loom
Boat Shuttle
Bobbin WinderRubber Gloves3
3
Check and finish the cloth
Check and finish the cloth
The cloth must be 0.0030–0.0050 in (0.08–0.13 mm) thick, weigh 1.94–2.18 oz per square yard (66–74 g/m²) and be 38 in wide (−0.25/+0.50 in). Its finish may be just a cleaning that removes processing oils and binders, if the cloth then bonds well to its resin, or a cleaning followed by, for example, a resin-coupling agent. The standard gives no method; the finished cloth must pass its laminate tests (Class 2 for epoxy).
Tools needed:
Balance ScaleMaterials
1- 1 as requiredPlaceholder
